Lazy programming

In our calculations so far we have said that the order in which we make evaluation steps will not affect the results produced – it may only affect whether the sequence leads to a result. This chapter describes precisely the lazy evaluation strategy which underlies Haskell. Lazy evaluation is well named: a lazy evaluator will only evaluate an argument to a function if that argument’s value is needed to compute the overall result. Moreover, if an argument is structured (a list or a tuple, for instance), only those parts of the argument which are needed to make the computation continue will be evaluated; we’ll look at how this works in practice in some examples.

Lazy evaluation has consequences for the style of programs we can write. Since an intermediate list will only be generated on demand, using an intermediate list will not necessarily be expensive computationally. We examine this in the context of a series of examples, culminating in a case study of parsing.

To build parsers we construct a toolkit of polymorphic, higher-order functions which can be combined in a flexible and extensible way to make language processors of all sorts. One of the distinctive features of a functional language is the collection of facilities it provides for defining libraries like this; we’ll come back to this example when we discuss domain-specific languages in Domain-Specific Languages.

We also take the opportunity to extend the list comprehension notation. This does not allow us to write any new programs, but does make a lot of list processing programs – especially those which work by generating and then testing possible solutions – easier to express and understand.

Another consequence of lazy evaluation is that it is possible for the language to describe infinite structures. These would require an infinite amount of time to evaluate fully, but under lazy evaluation, only parts of a data structure need to be examined. Any recursive type will contain infinite objects; we concentrate on lists here, as infinite lists are by far the most widely used infinite structures.

After introducing a variety of examples, such as infinite lists of prime and random numbers, we discuss the importance of infinite lists for program design, and see that programs manipulating infinite lists can be thought of as processes consuming and creating ‘streams’ of data. Based on this idea, we explore how to complete the simulation case study.

The chapter concludes with an update on program verification in the light of lazy evaluation and the existence of infinite lists; this section can only give a flavour of the area, but contains references to more detailed presentations.

Lazy evaluation and Calculation rules and lazy evaluation are essential reading, but the sections that follow explore the impact of laziness on a number of things we have looked at already, including list comprehensions and the simulation case study, as well as examining design and verification questions.

Lazy evaluation

Central to evaluation in Haskell is function application. The basic idea behind this is simple: to evaluate the function f applied to arguments a1, a2, …, ak, we simply substitute the expressions ai for the corresponding variables in the definition of the function. For instance, if

f x y = x+y

then

f (9-3) (f 34 3)
~> (9-3)+(f 34 3)

since we replace x by (9-3) and y by (f 34 3). The expressions (f 34 3) and (9-3) are not evaluated before they are passed to the function.

In this case, for evaluation to continue, we need to evaluate the arguments to ‘+’, giving

~> 6+(f 34 3)
~> 6+(34+3)
~> 6+37
~> 43

In this example, both of the arguments are evaluated eventually, but this is not always the case. If we define

g x y = x+12

then

g (9-3) (g 34 3)
~> (9-3)+12
~> 6+12
~> 18

Here (9-3) is substituted for x, but as y does not appear on the right-hand side of the equation, the argument (g 34 3) will not appear in the result, and so is not evaluated. Here we see the first advantage of lazy evaluation: an argument which is not needed will not be evaluated. This example is rather too simple: why would we write the second argument if its value is never needed? A rather more realistic example is

switch :: Integer -> a -> a -> a
switch n x y
  | n>0         = x
  | otherwise   = y

If the integer n is positive, the result is the value of x; otherwise it is the value of y. Either of the arguments x and y might be used, but in the first case y is not evaluated and in the second x is not evaluated. A third example is

h x y = x+x

so that

h (9-3) (h 34 3)  -- (h-eval)
~> (9-3)+(9-3)

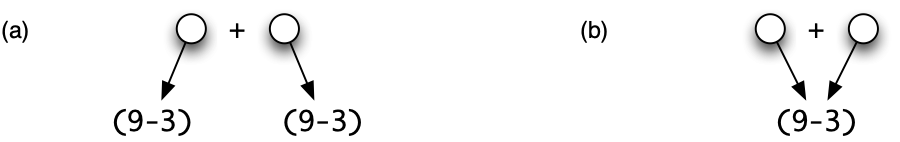

It appears here that we will have to evaluate the argument (9-3) twice since it is duplicated on substitution. Lazy evaluation ensures that a duplicated argument is never evaluated more than once. This can be modelled in a calculation by doing the corresponding steps simultaneously, thus

h (9-3) 17
~> (9-3)+(9-3)
~> 6+6
~> 12

In the implementation, there is no duplicated evaluation because calculations are made over graphs rather than trees to represent the expressions being evaluated. For instance, instead of duplicating the argument, as in (a) below, the evaluation of (h-eval) will give a graph in which on both sides of the plus there is the same expression. This is shown in (b).

A final example is given by the pattern matching function,

pm (x,y) = x+1

applied to the pair (3+2,4-17).

pm (3+2,4-17)
~> (3+2)+1
~> 6

The argument is examined, and part of it is evaluated. The second half of the pair remains unevaluated, as it is not needed in the calculation. This completes the informal introduction to lazy evaluation, which can be summarized in the three points:

• arguments to functions are evaluated only when this is necessary for evaluation to continue;

• an argument is not necessarily evaluated fully: only the parts that are needed are examined;

• an argument is evaluated at most only once. This is done in the implementation by replacing expressions by graphs and calculating over them.

We now give a more formal account of the calculation rules which embody lazy evaluation.

Calculation rules and lazy evaluation

As we first saw in Syntax, the definition of a function consists of a number of conditional equations. Each conditional equation can contain multiple clauses and may have a number of local definitions given in a where clause. Each equation will have on its left-hand side the function under definition applied to a number of patterns.

f p1 p2 ... pk
  | g1          = e1
  | g2          = e2
  ...
  | otherwise   = er
    where
    v1  a1,1 ... = r1
    ....
f q1 q2 ... qk
  = ...

In calculating f a1 … ak there are three aspects.

Calculation – pattern matching

In order to determine which of the equations is used, the arguments are evaluated. The arguments are not evaluated fully, rather they are evaluated sufficiently to see whether they match the corresponding patterns. If they match the patterns p1 to pk, then evaluation proceeds using the first equation; if not, they are checked against the second equation, which may require further evaluation. This is repeated until a match is given, or until there are no more equations (which would generate a Program error). For instance, given the definition

f :: [Int] -> [Int] -> Int
f [] ys         = 0   -- (f.1)
f (x:xs) []     = 0   -- (f.2)
f (x:xs) (y:ys) = x+y   -- (f.3)

the evaluation of f [1 .. 3] [1 .. 3] proceeds thus

f [1 .. 3] [1 .. 3]  -- (1)
~> f (1:[2 .. 3]) [1 .. 3]  -- (2)
~> f (1:[2 .. 3]) (1:[2 .. 3])  -- (3)
~> 1+1  -- (4)

At stage (1), there is not enough information about the arguments to determine whether there is a match with (f.1). One step of evaluation gives (2), and shows there is not a match with (f.1).

The first argument of (2) matches the first pattern of (f.2), so we need to check the second. One step of calculation in (3) shows that there is no match with (f.2), but that there is with (f.3); hence we have (4).

Calculation – guards

Suppose that the first conditional equation matches (simply for the sake of explanation). The expressions a1 to ak are substituted for the patterns p1 to pk throughout the conditional equation. We must next determine which of the clauses on the right-hand side applies. The guards are evaluated in turn, until one is found which gives the value True; the corresponding clause is then used. If we have

f :: Int -> Int -> Int -> Int
f m n p
  | m>=n && m>=p        = m
  | n>=m && n>=p        = n
  | otherwise           = p

then

f (2+3) (4-1) (3+9)
  ??  (2+3)>=(4-1) && (2+3)>=(3+9)
  ??    ~> 5>=3 && 5>=(3+9)
  ??    ~> True && 5>=(3+9)
  ??    ~> 5>=(3+9)
  ??    ~> 5>=12
  ??    ~> False
  ??  3>=5 && 3>=12
  ??    ~> False && 3>=12
  ??    ~> False
  ??  otherwise ~> True
~> 12

We leave it as an exercise for the reader to work out which parts of the calculation above are shared.

Calculation – local definitions

Values in where clauses are calculated on demand: only when a value is needed does calculation begin. Given the definitions

f :: Int -> Int -> Int

f m n
  | notNil xs    = front xs
  | otherwise    = n
    where
    xs = [m .. n]

front (x:y:zs) = x+y
front [x]      = x

notNil []    = False
notNil (_:_) = True

the calculation of f 3 5 will be

f 3 5
  ?? notNil xs
  ??     where
  ??     xs = [3 .. 5]
  ??       ~> 3:[4 .. 5]   -- (1)
  ?? ~> notNil (3:[4 .. 5])
  ?? ~> True
~> front xs
       where
       xs = 3:[4 .. 5]
          ~> 3:4:[5]   -- (2)
~> 3+4  -- (3)
~> 7

To evaluate the guard notNil xs, evaluation of xs begins, and after one step, (1) shows that the guard is True. Evaluating front xs requires more information about xs, and so we evaluate by one more step to give (2). A successful pattern match in the definition of front then gives (3), and so the result.

This section has described where clauses; a similar explanation applies to let expressions.

Operators and other expression formers

The three aspects of evaluating a function application are now complete; we should now say something about the built-in operators. If they can be given Haskell definitions, such as

True  && x = x
False && x = False

then they will follow the rules for Haskell definitions. The left-to-right order means that ‘&&’ will not evaluate its second argument in the case that its first is False, for instance. This is unlike many programming languages, where the ‘and’ function will evaluate both its arguments.

The other operations, such as the arithmetic operators, vary. Multiplication needs both its arguments to return a result¹ but the equality on lists can return False on comparing [] and (x:xs) without evaluating x or xs. In general the language is implemented so that no manifestly unnecessary evaluation takes place.

Recall that if …then …else …; cases; let and lambda expressions can be used in forming expressions. Their evaluation follows the form we have seen for function applications. Specifically, if …then …else …  is evaluated like a guard, cases like a pattern match, let like a where clause and a lambda expression like the application of a named function such as f above.

Finally, we turn to the way in which a choice is made between applications.

Evaluation order

What characterizes evaluation in Haskell, apart from the fact that no argument is evaluated more than once, is the order in which applications are evaluated when there is a choice.

• Evaluation is from the outside in. In a situation like

  f1 e1 (f2 e2 17)


  where one application encloses another, the outer one is evaluated. In the example, the outer one, f1 e1 (f2 e2 17), is chosen for evaluation.

• Otherwise, evaluation is from left to right. In the expression

  f1 e1 + f2 e2


  the underlined expressions are both to be evaluated. The left-hand one, f1 e1, will be evaluated first.

These rules are enough to describe the way in which lazy evaluation works. In the sections to come we look at the consequences of a lazy approach for functional programming.

List comprehensions revisited

The list comprehension notation does not add any new programs to the Haskell language, but it does allow us to (re-)write programs in a new and clearer way. Building on the introduction in List comprehensions, the notation lets us combine multiple maps and filters together in a single expression. Combinations of these functions allow us to write algorithms which generate and test: all the elements of a particular form are generated and combinations of them are tested, before results depending upon them are returned.

We begin the section with a re-examination of the syntax of the list comprehension, before giving some simple examples to illustrate the features that we describe. After that we give the rules for calculating with list comprehensions, and we finish the section with a series of longer examples.

Syntax

A list comprehension has the form

[ e | q1 , ... , qk ]

where each qualifier qi has one of two forms.

• It can be a generator, p <- lExp, where p is a pattern and lExp is an expression of list type.

• It can be a test, bExp, which is a boolean expression.

An expression lExp or bExp appearing in qualifier qi can refer to the variables used in the patterns of qualifiers q1 to qi-1.

Simpler examples

Multiple generators allow us to combine elements from two or more lists

pairs :: [a] -> [b] -> [(a,b)]
pairs xs ys = [ (x,y) | x<-xs , y<-ys ]

This example is important as it shows the way in which the values x and y are chosen.

pairs [1,2,3] [4,5]
~> [(1,4),(1,5),(2,4),(2,5),(3,4),(3,5)]

The first element of xs, 1, is given to x, and then for this fixed value all possible values of y in ys are chosen. This process is repeated for the remaining values x in xs, namely 2 and 3.

This choice is not accidental, since if we have

triangle :: Int -> [(Int,Int)]
triangle n = [ (x,y) | x <- [1 .. n] , y <- [1 .. x] ]

the second generator, y <- [1 .. x] depends on the value of x given by the first generator.

triangle 3
~> [(1,1),(2,1),(2,2),(3,1),(3,2),(3,3)]

For the first choice of x, 1, the value of y is chosen from [1 .. 1], for the second choice of x, the value of y is chosen from [1 .. 2], and so on.

Three positive integers form a Pythagorean triple if the sum of squares of the first two is equal to the square of the third. The list of all triples with all sides below a particular bound, n, is given by

pyTriple n
  = [ (x,y,z) | x <- [2 .. n] , y <- [x+1 .. n] ,
                z <- [y+1 .. n] , x*x + y*y == z*z ]

pyTriple 100
~> [(3,4,5),(5,12,13),(6,8,10),...,(65,72,97)]

Here the test combines values from the three generators.

Calculating with list comprehensions

How can we describe the way in which the results of list comprehensions are obtained? One way is to give a translation of the comprehensions into applications of map, filter and concat. We give a different approach here, of calculating directly with the expressions.

Before we do this, we introduce one piece of very helpful notation. We write e{f/x} for the expression e in which every occurrence of the variable x has been replaced by the expression f. This is the substitution of f for x in e. If p is a pattern, we use e{f/p} for the substitution of the appropriate parts of f for the variables in p. For instance,

[ (x,y) | x<-xs ]{[2,3]/xs}    = [ (x,y) | x<-[2,3] ]

(x + sum xs){(2,[3,4])/(x,xs)} = 2 + sum [3,4]

since 2 matches x, and [3,4] matches xs when (2,[3,4]) is matched against (x,xs).

We now explain list comprehensions. The notation looks a bit daunting, but the effect should be clear. The generator v <- [a1,...,an] has the effect of setting v to the values a1 to an in turn. Setting the value appears in the calculation as substitution of a value for a variable.

[ e | v <- [a1,...,an] , q2 , ... , qk ]
~> [ e{a1/v} | q2{a1/v} , ... , qk{a1/v} ]
    ++ ... ++
    [ e{an/v} | q2{an/v} , ... , qk{an/v} ]

As a running example for this section we take

[ x+y | x <- [1,2] , isEven x , y <- [x .. 2*x] ]
~> [ 1+y | isEven 1 , y <- [1 .. 2*1] ] ++
    [ 2+y | isEven 2 , y <- [2 .. 2*2] ]

where the values 1 and 2 are substituted for x. The rules for tests are simple,

[ e | True  , q2 , ... , qk ]
~> [ e | q2 , ... , qk ]

[ e | False , q2 , ... , qk ]
~> []

so that our example is

~> [ 1+y | False , y <- [1 .. 2*1] ] ++
    [ 2+y | True , y <- [2 .. 2*2] ]
~> [ 2+y | y <- [2,3,4] ]
~> [ 2+2 | ] ++ [ 2+3 | ] ++ [ 2+4 | ]

and when there are no qualifiers,

[ e | ] = [ e ]

Completing the example, we have

[ x+y | x <- [1,2] , isEven x , y <- [x .. 2*x] ]
~> [4,5,6]

Now we consider some more examples.

triangle 3
~> [ (x,y) | x <- [1 .. 3] , y <- [1 .. x] ]
~> [ (1,y) | y <- [1 .. 1] ] ++
    [ (2,y) | y <- [1 .. 2] ] ++
    [ (3,y) | y <- [1 .. 3] ]
~> [ (1,1) | ] ++
    [ (2,1) | ] ++ [ (2,2) | ] ++
    [ (3,1) | ] ++ [ (3,2) | ] ++ [ (3,3) | ]
~> [(1,1),(2,1),(2,2),(3,1),(3,2),(3,3)]

as we argued above. Another example contains a test:

[ m*m | m <- [1 .. 10] , m*m<50 ]
~> [ 1*1 | 1*1<50 ] ++ [ 2*2 | 2*2<50 ] ++ ...
    [ 7*7 | 7*7<50 ] ++ [ 8*8 | 8*8<50 ] ++ ...
~> [ 1  | True ] ++ [ 4  | True ] ++ ...
    [ 49 | True ] ++ [ 64 | False ] ++ ...
~> [1,4,...49]

We now look at two longer examples, the solutions for which are aided by the list comprehension style.

Example

List permutations

A permutation of a list is a list with the same elements in a different order. For a list of n elements, there are n! (n factorial) permutations of the list. The perms function returns a list of all permutations of a list.

perms :: Eq a => [a] -> [[a]]

The empty list has one permutation, itself. If xs is not empty, a permutation is given by picking an element x from xs and putting x at the front of a permutation of the remainder xs with x removed. To do this we use the ‘\\’ operator, defined in Data.List.

The operator ‘\\’ returns the difference of two lists: xs\\ys is the list xs with each element of ys removed, if it is present. The number of duplications is taken into account, so that for example [2,3,2]\\[3,2,3] is [2]. We can now write the definition of the function giving all the permutations like this

perms [] = [[]]
perms xs = [ x:ps | x <- xs , ps <- perms (xs\\[x]) ]

Example evaluations give, for a one-element list,

perms [2]
~> [x:ps| x <- [2] , ps <- perms [] ]
~> [x:ps| x <- [2] , ps <- [[]] ]
~> [2:ps| ps <- [[]] ]
~> [2:[] | ]
~> [[2]]

for a two-element list,

perms [2,3]
~> [ x:ps | x <- [2,3] , ps <- perms([2,3]\\[x]) ]
~> [ 2:ps | ps <- perms [3] ] ++ [ 3:ps | ps <- perms [2] ]
~> [ 2:[3] ] ++ [ 3:[2] ]
~> [ [2,3] , [3,2] ]

and finally for a three-element list,

perms [1,2,3]
~> [ x:ps | x <- [1,2,3] , ps <- perms([1,2,3]\\[x]) ]
~> [ 1:ps | ps <- perms [2,3]] ++...++ [ 3:ps | ps <- perms [1,2]]
~> [ 1:ps | ps<-[[2,3],[3,2]]] ++...++ [ 3:ps | ps<-[[1,2],[2,1]]]
~> [[1,2,3],[1,3,2],[2,1,3],[2,3,1],[3,1,2],[3,2,1]]

There is another algorithm for permutations: in this, a permutation of a list (x:xs) is given by forming a permutation of xs, and by inserting x into this somewhere. The possible insertion points are given by finding all the possible splits of the list into two halves.

perm :: [a] -> [[a]]

perm []     = [[]]
perm (x:xs) = [ ps++[x]++qs | rs <- perm xs ,
                              (ps,qs) <- splits rs ]

We get the list of all possible splits of a list xs after seeing that on splitting (y:ys), we either split at the front of (y:ys), or somewhere inside ys, as given by a split of ys.

splits :: [a]->[([a],[a])]

splits []     = [ ([],[]) ]
splits (y:ys) = ([],y:ys) : [ (y:ps,qs) | (ps,qs) <- splits ys]

Before moving on, observe that the type of perms requires that a must be in the class Eq. This is needed for the list difference operator \\ to be defined over the type [a]. There is no such restriction on the type of perm, which uses a different method for calculating the permutations.

Vectors and matrices

In this section we give one model for vectors and matrices of real numbers; others exist, and are suitable for different purposes. In particular, the Data.Array package provides implementations of both immutable and mutable arrays: the former are ‘functional’, and so can only be updated by copying, while the latter can be updated ‘in place’.

In our implementation, a vector is a list of real numbers, as in the example vector [2.1,3.0,4.0].

type Vector = [Float]

The scalar product of two vectors (assumed to be the same length) is given by multiplying together corresponding elements and taking the total of the results.

scalarProduct [2.0,3.1] [4.1,5.0]
~> 2.0*4.1 + 3.1*5.0
~> 23.7

As a first attempt we might write

mul xs ys = sum [ x*y | x<-xs , y<-ys ]

but this gives

mul [2.0,3.1] [4.1,5.0]
~> sum [8.2,10.0,12.71,15.5]
~> 46.41

since all combinations of pairs from the lists are taken. In order to multiply together corresponding pairs, we first zip the lists together:

scalarProduct :: Vector -> Vector -> Float
scalarProduct xs ys = sum [ x*y | (x,y) <- zip xs ys ]

and a calculation shows that this gives the required result. It is also possible to use zipWith to define scalarProduct; we leave this as an exercise. A matrix like ( arrayrrr 2.0 & 3.0 & 4.0  5.0 & 6.0 & -1.0 array ) can be thought of as a list of rows or a list of columns; we choose a list of rows here.

type Matrix = [Vector]

The example matrix is

[[2.0,3.0,4.0],[5.0,6.0,-1.0]]

Two matrices M and P are multiplied by taking the scalar products of rows of M with columns of P. ( arrayrrr 2.0 & 3.0 & 4.0  5.0 & 6.0 & -1.0 array ) × ( arrayrr 1.0 & 0.0  1.0 & 1.0  0.0 & -1.0 array ) = ( arrayrr 5.0 & -1.0  11.0 & 7.0 array ) We therefore define

matrixProduct :: Matrix -> Matrix -> Matrix
matrixProduct m p
  = [ [scalarProduct r c | c <- columns p] | r <- m ]

where the function columns gives the representation of a matrix as a list of columns.

columns :: Matrix -> Matrix

columns y = [ [ z!!j | z <- y ] | j <- [0 .. s] ]
            where
            s = length (head y)-1

The expression [ z!!j | z <- y ] picks the jth element from each row z in y; this is exactly the jth column of y. length (head y) is the length of a row in y, and so the indices j will be in the range 0 to s = length (head y)-1. Another variant of the columns function is transpose which is in the library Data.List.

Refutable patterns in generators

Some patterns are refutable, meaning that an attempt to pattern-match against them may fail. If a refutable pattern is used on the left-hand side of an ‘<-’, its effect is to filter from the list only the elements matching the pattern. For example,

[ x | (x:xs) <- [[],[2],[],[4,5]] ] ~> [2,4]

The rules for calculation with generators containing a refutable pattern on their left-hand side are similar to those given above, except that before performing the substitution for the pattern, the list is filtered for the elements which match the pattern. The details are left as an exercise.

Exercises

17.1 Give a calculation of the expression

[ x+y | x <- [1 .. 4] , y <- [2 .. 4] , x>y ]

17.2 Using the list comprehension notation, define the functions

subLists,subSequences :: [a] -> [[a]]

which return all the sublists and subsequences of a list. A sublist is obtained by omitting some of the elements of a list; a subsequence is a continuous block from a list. For instance, both [2,4] and [3,4] are sublists of [2,3,4], but only [3,4] is a subsequence.

17.3 Give calculations of the expressions

perm [2]
perm [2,3]
perm [1,2,3]

and of the matrix multiplication

matrixProduct [[2.0,3.0,4.0],[5.0,6.0,-1.0]]
              [[1.0,0.0],[1.0,1.0],[0.0,-1.0]]

17.4 Give a definition of scalarProduct using zipWith.

17.5 Define functions to calculate the determinant of a square matrix and, if this is non-zero, to invert the matrix.

17.6 The calculation rules for list comprehensions can be re-stated for the two cases [] and (x:xs), instead of for the arbitrary list [a1,...,an]. Give these rules by completing the equations

[ e | v <- []     , q2 , ... , qk ] ~> ...
[ e | v <- (x:xs) , q2 , ... , qk ] ~> ...

17.7 Give the precise rules for calculating with a generator containing a refutable pattern, like (x:xs) <- lExp. You might need to define auxiliary functions to do this.

17.8 List comprehensions can be translated into expressions involving map, filter and concat by the following equations.

[ x | x<-xs ]              = xs
[ f x | x<-xs ]            = map f xs
[ e | x<-xs , p x , ... ]  = [ e | x <- filter p xs , ... ]
[ e | x<-xs , y<-ys , .. ] = concat [ [e|y<-ys, ..] | x<-xs]

Translate the expressions

[ m*m | m <- [1 .. 10] ]
[ m*m | m <- [1 .. 10] , m*m<50 ]
[ x+y | x <- [1 .. 4] , y <- [2 .. 4] , x>y ]
[ x:p | x <- xs , p <- perms (xs\\[x]) ]

using these equations; you will need to define some auxiliary functions as a part of your translation.

Data-directed programming

This section looks at style of programming made possible by lazy evaluation, data-directed programming. This is an approach where we design the program by thinking about it as a sequence of transformations of data.

’In a traditional language it may well be too efficient to do this in practice, as we might have to compute a series of complex data structures which are ‘internal’ to the program. In a lazy language these are only constructed as they are needed, and in practice they may never be constructed completely: we just build the data structures incrementally, and once a part of it has been used, it can be ‘recycled’. Luckily this is done by the implementation, and we do not have to worry about it ourselves.

All this should become clearer as we look at a particular example; let’s start by looking at the example of finding the sum of fourth powers of numbers from 1 to n. A data-directed solution is to

• build the list of numbers [1 .. n];

• take the power of each number, giving [1,16,…,n^4], and

• find the sum of this list.

As a program, we have

sumFourthPowers n = sum (map (^4) [1 .. n])

How does the calculation proceed?

sumFourthPowers n
~> sum (map (^4) [1 .. n])
   -- create first part of the list with :
~> sum (map (^4) (1:[2 .. n]))  -- allows pattern match
~> sum (1^4 : map (^4) [2 .. n])  -- by definition of map
~> (1^4) + sum (map (^4) [2 .. n])   -- by definition of sum
    -- now we can recycle the first part of the list
~> 1 + sum (map (^4) [2 .. n])
~> ...
~> 1 + (16 + sum (map (^4) [3 .. n]))
~> ...
~> 1 + (16 + (81 + ... + n^4))

As can be seen, none of the intermediate lists is created in full in this calculation. As soon as the first part of the list is created, its fourth power is taken, and it becomes a part of the sum which produces the final result, and so the first part can be recycled.

Example 1.

1. List minimum

A more striking example is given by the problem of finding the minimum of a list of numbers. One solution is to sort the list, and take its head! This would be ridiculous if the whole list were sorted in the process, but, in fact we have, using the definition of insertion sort from Defining functions over lists,

iSort [8,6,1,7,5]
~> ins 8 (ins 6 (ins 1 (ins 7 (ins 5 []))))
~> ins 8 (ins 6 (ins 1 (ins 7 [5])))
~> ins 8 (ins 6 (ins 1 (5 : ins 7 [])))
~> ins 8 (ins 6 (1 : (5 : ins 7 [])))
~> ins 8 (1 : ins 6 (5 : ins 7 []))
~> 1 : ins 8 (ins 6 (5 : ins 7 []))

As can be seen from the underlined parts of the calculation, each application of ins calculates the minimum of a larger part of the list, since the head of the result of ins is given in a single step. The head of the whole list is determined in this case without us working out the value of the tail, and this means that we have a sensible algorithm for minimum given by (head . iSort).

2. Routes through a graph

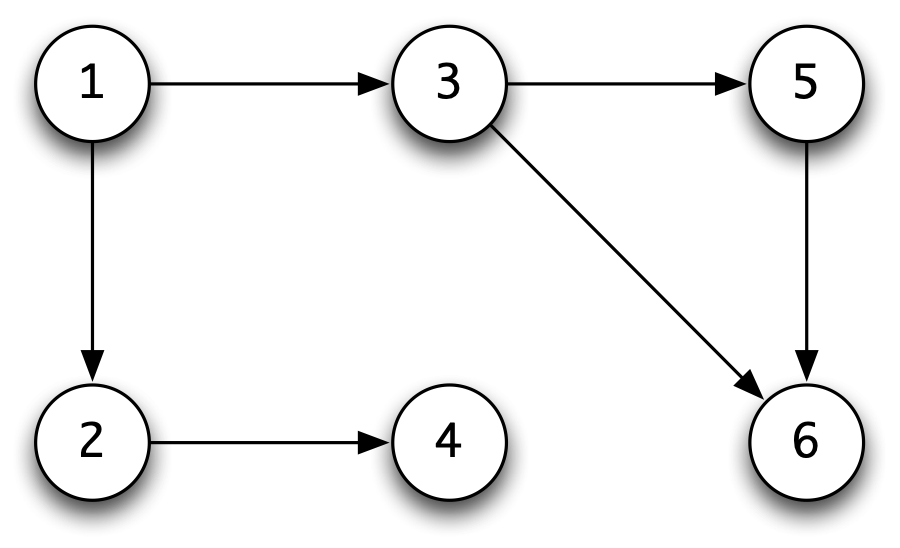

A graph can be seen as an object of type Relation a, as defined in Relations and graphs. How can we find a route from one point in a graph to another? For example, in the graph

graphEx = makeSet [(1,2),(1,3),(2,4),(3,5),(5,6),(3,6)]

a route from 1 to 4 is the list [1,2,4].

We solve a slightly different problem: find the list of all routes from x to y; our original problem is solved by taking the head of this list. Note that as a list is returned, the algorithm allows for the possibility of there being no route from x to y – the empty list of routes is the answer in such a case. This method, which is applicable in many different situations, is often called the list of successes technique: instead of returning one result, or an error if there is none, we return a list; the error case is signalled by the empty list. The method also allows for multiple results to be returned, as we shall see.

How do we solve the new problem?

Acyclic case.

For the present we assume that the graph is acyclic: there is no circular path from any node back to itself.

• The only route from x to x is [x].

• A route from x to y will start with a step to one of x’s neighbours, z say. The remainder will be a path from z to y.

We therefore look for all paths from x to y going through z, for each neighbour z of x.

routes :: Ord a => Relation a -> a -> a -> [[a]]
routes rel x y
  | x==y        = [[x]]
  | otherwise   = [ x:r | z <- nbhrs rel x ,
                          r <- routes rel z y ]

The nbhrs function is defined by

nbhrs :: Ord a => Relation a -> a -> [a]
nbhrs rel x = flatten (image rel x)

where flatten turns a set into a list. Now consider the example, where we write routes’ for routes graphEx and nbhrs’ for nbhrs graphEx, to make the calculation more readable:

routes' 1 4
~> [ 1:r | z <- nbhrs' 1 , r <- routes' z 4 ]
~> [ 1:r | z <- [2,3] , r <- routes' z 4 ]
~> [ 1:r | r <- routes' 2 4 ] ++
    [ 1:r | r <- routes' 3 4 ]  -- (†)
~> [ 1:r | r <- [ 2:s | w <- nbhrs' 2 , s <- routes' w 4 ]]++...
~> [ 1:r | r <- [ 2:s | w <- [4] , s <- routes' w 4 ] ] ++ ...
~> [ 1:r | r <- [ 2:s | s <- routes' 4 4 ] ] ++ ...  -- (‡)
~> [ 1:r | r <- [ 2:s | s <- [[4]] ] ] ++ ...
~> [ 1:r | r <- [ [2,4] ] ] ++ ...
~> [[1,2,4]] ++ ...

The head of the list is given by exploring only the first neighbour of 1, namely 2, and its first neighbour, 4. In this case the search for a route leads directly to a result. This is not always so. Take the example of

routes' 1 6 = ...
~> [ 1:r | r <- routes' 2 6 ] ++
    [ 1:r | r <- routes' 3 6 ]  -- (†)
~> ...
~> [ 1:r | r <- [ 2:s | s <- routes' 4 6 ] ] ++
    [ 1:r | r <- routes' 3 6 ]  -- (‡)

Corresponding points in the calculations are marked by (†) and (‡). The search for routes from 4 to 6 will fail, though, as 4 has no neighbours – we therefore have

~> [] ++ [ 1:r | r <- routes' 3 6 ] = ...
~> [ 1:r | r <- [ 3:s | s <- routes' 5 6 ] ] ++ ...
~> [[1,3,5,6]] ++ ...

The effect of this algorithm is to backtrack when a search has failed: there is no route from 1 to 6 via 2, so the other possibility of going through 3 is explored. This is done only when the first possibility is exhausted, however, so lazy evaluation ensures that this search through ‘all’ the paths turns out to be an efficient method of finding a single path. Moreover, we don’t have to think explicitly about backtracking, it simply falls out from our description of the list of all solutions, evaluated lazily.

General case.

We assumed at the start of this development that the graph was acyclic, so that we have no chance of a path looping back on itself, and so of a search going into a loop. We can make a simple addition to the program to make sure that only paths without cycles are explored, and so that the program will work for an arbitrary graph. We add a list argument for the points not to be visited (again), and so have

routesC :: Ord a => Relation a -> a -> a -> [a] -> [[a]]
routesC rel x y avoid
  | x==y        = [[x]]
  | otherwise   = [ x:r | z <- nbhrs rel x \ avoid ,
                          r <- routesC rel z y (x:avoid) ]

Two changes are made in the recursive case.

• In looking for neighbours of x we look only for those which are not in the list avoid;

• in looking for routes from z to y, we exclude visiting both the elements of avoid and the node x itself.

A search for a route from x to y in rel is given by routesC rel x y [].

Exercises

17.9 Defining graphEx2 to be

makeSet [(1,2),(2,1),(1,3),(2,4),(3,5),(5,6),(3,6)]

try calculating the effect of the original definition on

routes graphEx 1 4

Repeat the calculation with the revised definition which follows:

routes rel x y
  | x==y        = [[x]]
  | otherwise   = [ x:r | z <- nbhrs rel x ,
                          r <- routes rel z y ,
                          not (elem x r) ]

and explain why this definition is not suitable for use on cyclic graphs. Finally, give a calculation of

routesC graphEx 1 4 []

Case study: parsing expressions

We have already seen the definition of Expr, the type of arithmetic expressions, in Recursive algebraic types and in a revised version given:

data Expr = Lit Int | Var Var | Op Ops Expr Expr
data Ops  = Add | Sub | Mul | Div | Mod

and showed there how we could calculate the results of these expressions using the function eval. Abstract data types began with a discussion of how to represent the values held in the variables using the abstract data type Store. Using these components, we can build a calculator for simple arithmetical expressions, but the input is unacceptably crude, as we have to enter members of the Expr type, so that to add 2 and 3, we are forced to type Op Add (Lit 2) (Lit 3). What we need to make the input reasonable is a function which performs the reverse of show: it will take the string "(2+3)" and return the expression Op Add (Lit 2) (Lit 3), which is of type Expr. A function like this is called a parser and the process of turning a ‘flat’ string into a structure like an Expr is called parsing.

Constructing a parser for a type like Expr gives a read function which essentially gives the functionality of the Read class, introduced in A tour of the built-in Haskell classes above. Note, however, that the derived definition of read for Expr will parse strings of the form "Op Add (Lit 2) (Lit 3)", which doesn’t help us to build the parser for strings like "(2+3)".

The type of parsers: Parse

In building a library of parsing functions, we first have to establish the type we shall use to represent parsers. Our approach here is again data directed: we will look at how a parser is represented as a function of a particular type, and in looking at how particular parsers are constructed we’ll again concentrate on how data is transformed through the parsing process.

The problem of parsing is to take a list of objects – of type a and characters in our example "(2+3)" – and from it to extract an object of some other type, b, in this case Expr. As a first attempt, we might define the type of parsers thus:

type Parse1 a b = [a] -> b

Suppose that bracket and number are the parsers of this type which recognize brackets and numbers then we have

bracket "(xyz" ~> '('
number  "234"  ~> 2 or 23 or 234?
bracket "234"  ~> no result?

The problem evident here is that a parser can return more than one result – as in number "234" – or none at all, as seen in the final case. Instead of the original type, we suggest

type Parse2 a b = [a] -> [b]

where a list of results is returned. In our examples,

bracket "(xyz" ~> ['(']
number  "234"  ~> [2 , 23 , 234]
bracket "234"  ~> []

In this case an empty list signals failure to find what was sought, while multiple results show that more than one successful parse was possible. We are using the ‘list of successes’ technique again, in fact.

Another problem presents itself. What if we look for a bracket followed by a number, which we have to do in parsing our expressions? We need to know the part of the input which remains after the successful parse. Hence we define

type Parse a b = [a] -> [(b,[a])]

and our example functions will give

bracket "(xyz" ~> [('(' , "xyz")]
number  "234"  ~> [(2,"34") , (23,"4") , (234,"")]
bracket "234"  ~> []

Each element in the output list represents a successful parse. In number "234" we see three successful parses, each recognizing a number. In the first, the number 2 is recognized, leaving "34" unexamined, for instance.

The type ReadS b, which appears in the standard prelude and is used in defining the Read class, is a special case of the type Parse a b in which [a] is replaced by String, that is, a is replaced by Char.

Some basic parsers

Now we have established the type we shall use, we can begin to write some parsers. These and the parser-combining functions are illustrated in The major parsing functions.; we go through the definitions now.

The first is a parser which always fails, so accepts nothing. There are no entries in its output list.

none :: Parse a b
none inp = []

On the other hand, we can succeed immediately, without reading any input. The value recognized is a parameter of the function.

succeed :: b -> Parse a b
succeed val inp = [(val,inp)]

More useful is a parser to recognize a single object or token, t, say. We define

token :: Eq a => a -> Parse a a
token t (x:xs)
  | t==x        = [(t,xs)]
  | otherwise   = []
token t []      = []

More generally, we can recognize (or spot) objects with a particular property, as represented by a Boolean-valued function.

spot :: (a -> Bool) -> Parse a a
spot p (x:xs)
  | p x         = [(x,xs)]
  | otherwise   = []
spot p []       = []

These parsers allow us to recognize single characters like a left bracket, or a single digit,

bracket = token '('
dig     = spot isDigit

and indeed, we can define token from spot:

token t = spot (==t)

If we are to build parsers for complex structures like expressions we will need to be able to combine these simple parsers into more complicated ones to, for instance, recognize numbers consisting of lists of digits.

infixr 5 >*>

type Parse a b = [a] -> [(b,[a])]

none :: Parse a b
none inp = []

succeed :: b -> Parse a b
succeed val inp = [(val,inp)]

token :: Eq a => a -> Parse a a
token t = spot (==t)

spot :: (a -> Bool) -> Parse a a
spot p (x:xs)
  | p x         = [(x,xs)]
  | otherwise   = []
spot p []       = []

alt :: Parse a b -> Parse a b -> Parse a b
alt p1 p2 inp = p1 inp ++ p2 inp

(>*>) :: Parse a b -> Parse a c -> Parse a (b,c)
(>*>) p1 p2 inp
  = [((y,z),rem2) | (y,rem1) <- p1 inp , (z,rem2) <- p2 rem1 ]

build :: Parse a b -> (b -> c) -> Parse a c
build p f inp = [ (f x,rem) | (x,rem) <- p inp ]

list :: Parse a b -> Parse a [b]
list p = (succeed []) `alt`
         ((p >*> list p) `build` (uncurry (:)))

Combining parsers

Here we build a library of higher-order polymorphic functions, which we then use to give our parser for expressions. First we have to think about the ways in which parsers need to be combined.

Looking at the expression example, an expression is either a literal, or a variable or an operator expression. From parsers for the three sorts of expression, we want to build a single parser for expressions. For this we use alt

alt :: Parse a b -> Parse a b -> Parse a b

alt p1 p2 inp = p1 inp ++ p2 inp

The parser combines the results of the parses given by parsers p1 and p2 into a single list, so a success in either is a success of the combination. For example,

(bracket `alt` dig) "234"
~> [] ++ [('2',"34")]

the parse by bracket fails, but that by dig succeeds, so the combined parser succeeds.

For our second function, we look again at the expression example. In recognizing an operator expression we see a bracket then a number. How do we put parsers together so that the second is applied to the input that remains after the first has been applied?

We make this function an operator, as we find that it is often used to combine a sequence of parsers, and an infix form with defined associativity is most convenient for this.

infixr 5 >*>

(>*>) :: Parse a b -> Parse a c -> Parse a (b,c)

(>*>) p1 p2 inp
  = [((y,z),rem2) | (y,rem1) <- p1 inp , (z,rem2) <- p2 rem1 ]

The values (y,rem1) run through the possible results of parsing inp using p1. For each of these, we apply p2 to rem1, which is the input which is unconsumed by p1 in that particular case. The results of the two successful parses, y and z, are returned as a pair.

As an example, assume that digList recognizes non-empty sequences of digits, and look at (digList >*> bracket) "24(". Applying digList to the string "24(" gives two results,

digList "24(" ~> [("2","4(") , ("24","(")]

and so (y,rem1) runs through two cases

(digList >*> bracket) "24("
~> [((y,z),rem2) | (y,rem1) <- [("2","4(") , ("24","(")] ,
                    (z,rem2)  <- bracket rem1 ]
~> [(("2",z),rem2)  | (z,rem2)  <- bracket "4(" ] ++
    [(("24",z),rem2) | (z,rem2)  <- bracket "(" ]

Now, bracket "4("  > [], so fails, giving

~> [] ++ [(("24",z),rem2) | (z,rem2)  <- bracket "(" ]

and

bracket "(" ~> [('(',"")]

which signals success, and finally gives

~> [(("24",z),rem2) | (z,rem2)  <- [('(',"")] ]
~> [ (("24",'(') , "") ]

This shows we have one successful parse, in which we have recognized the digit list "24" followed by the left bracket ’(’.

Our final operation is to change the item returned by a parser, or to build something from it. Consider again the case of the parser, digList, which returns a list of digits. Can we make it return the number which the list of digits represents? We apply conversion to the results, thus

build :: Parse a b -> (b -> c) -> Parse a c

build p f inp = [ (f x,rem) | (x,rem) <- p inp ]

so in an example, we have

(digList `build` digsToNum) "21a3"
~> [ (digsToNum x,rem) | (x,rem) <- digList "21a3" ]
~> [ (digsToNum x,rem) | (x,rem) <- [("2","1a3"),("21","a3")]]
~> [ (digsToNum "2" , "1a3") , (digsToNum "21" , "a3") ]
~> [ (2,"1a3") , (21,"a3")]

Using the three operations or combinators alt, >*> and build together with the primitives of the last section we will be able to define all the parsers we require.

As an example, we show how to define a parser for a list of objects, when we are given a parser to recognize a single object. There are two sorts of list:

• A list can be empty, which will be recognized by the parser succeed [].

• Any other list is non-empty, and consists of an object followed by a list of objects. A pair like this is recognized by p >*> list p; we then have to turn this pair (x,xs) into the list (x:xs), for which we use build, applied to the uncurried form of (:), which takes its arguments as a pair, and thus converts (x,xs) to (x:xs).

list :: Parse a b -> Parse a [b]

list p = (succeed []) `alt`
         ((p >*> list p) `build` (uncurry (:)))

Exercises

17.10 Define the functions

neList   :: Parse a b -> Parse a [b]
optional :: Parse a b -> Parse a [b]

so that neList p recognizes a non-empty list of the objects which are recognized by p, and optional p recognizes such an object optionally – it may recognize an object or succeed immediately.

17.11 Define the function

nTimes :: Integer -> Parse a b -> Parse a [b]

so that nTimes n p recognizes n of the objects recognized by p.

A parser for expressions

Now we can describe our expressions and define the parser for them. Expressions have three forms:

• Literals: 67,  89, where ‘ ’ is used for unary minus.

• Variables: ’a’ to ’z’.

• Applications of the binary operations +,*,-,/,%, where % is used for mod, and / gives integer division. Expressions are fully bracketed, if compound, thus: (23+(34-45)), and white space not permitted.

The parser has three parts

parser :: Parse Char Expr
parser = litParse `alt` varParse `alt` opExpParse

corresponding to the three sorts of expression. The simplest to define is

varParse :: Parse Char Expr
varParse = spot isVar `build` Var

isVar :: Char -> Bool
isVar x = ('a' <= x && x <= 'z')

(Here the constructor Var is used as a function taking a character to the type Expr.)

An operator expression will consist of two expressions joined by an operator, the whole construct between a matching pair of parentheses:

opExpParse
  = (token '(' >*>
     parser    >*>
     spot isOp >*>
     parser    >*>
     token ')')
     `build` makeExpr

where the conversion function takes a nested sequence of pairs, like

('(',(Lit 23,('+',(Var 'x',')'))))

into the expression Op Add (Lit 23) (Var ’x’), thus

makeExpr (_,(e1,(bop,(e2,_)))) = Op (charToOp bop) e1 e2

Defining the functions isOp and charToOp is left as an exercise.

Finally, we look at the case of literals. A number consists of a non-empty list of digits, with an optional ‘ ’ at the front. We therefore use the functions from the exercises of the previous section to say

litParse
  = ((optional (token '~')) >*>
     (neList (spot isDigit))
    `build` (charlistToExpr . uncurry (++))

Left undefined here is the function charlistToExpr which should convert a list of characters to a literal integer; this is an exercise for the reader.

Exercises

17.12 Define the functions

isOp     :: Char -> Bool
charToOp :: Char -> Ops

used in the parsing of expressions.

17.13 A recogniser is like a parser, but simpler: all it needs to do is to recognise whether (the first part of) a string is what we are looking for. Taking a particular example, a recogniser for numbers, numberRec, should behave like this

numberRec "234"  ~>["34" , "4" , ""]
numberRec "(34"  ~>[]

where the corresponding number parser gives:

number "234"  ~>[(2,"34") , (23,"4") , (234,"")]
number "(34"  ~>[]

Explain how you could define numberRec from number, and then give a general set of library functions for building recognisers in a similar way to the library for building parsers.

17.14 Define the function

charlistToExpr :: [Char] -> Expr

so that

charlistToExpr "234" ~>Lit 234
charlistToExpr "~98" ~>Lit (-98)

which is used in parsing literal expressions.

17.15 A command to the calculator to assign the value of expr to the variable var is represented thus

var:expr

Give a parser for these commands.

17.16 How would you change the parser for numbers if decimal fractions are to be allowed in addition to integers?

17.17 How would you change the parser for variables if names longer than a single character are to be allowed?

17.18 Explain how you would modify your parser so that the whitespace characters space and tab can be used in expressions, but would be ignored on parsing. (Hint: there is a simple pre-processor which does the trick!)

17.19 (Note: this exercise is for those familiar with Backus-Naur notation for grammars.)

Expressions without bracketing and allowing the multiplicative expressions higher binding power are described by the grammar

Expr  ::= Integer | Var | (Expr Ops Expr) |
          Lexpr Mop Mexpr | Mexpr Aop Expr
Lexpr ::= Integer | Var | (Expr Ops Expr)
Mexpr ::= Integer | Var | (Expr Ops Expr) | Lexpr Mop Mexpr
Mop   ::= '*' | '/' | '%'
Aop   ::= '+' | '-'
Ops   ::= Mop | Aop

Give a Haskell parser for this grammar. Discuss the associativity of the operator ‘-’ in this grammar.

The top-level parser

The parser defined in the last section, parser is of type

[Char] -> [ (Expr,[Char]) ]

yet what we need is to convert this to a function taking a string to the expression it represents. We therefore define the function

topLevel :: Parse a b -> b -> [a] -> b
topLevel p defaultVal inp
  = case results of
      [] -> defaultVal
      _  -> head results
    where
    results = [ found | (found,[]) <- p inp ]

The parse p inp is successful if the result contains at least one parse (the second case) in which all the input has been read (the test given by the pattern match to (found,[])). If this happens, the first value found is returned; otherwise (the first case) we return the default value of type b, defaultVal, which in our case study will be the default command, Null.

We can define the type of commands thus

data Command = Eval Expr | Assign Var Expr | Null

which are intended to cause

• the evaluation of the expression,

• the assignment of the value of the expression to the variable, and

• no effect.

If the assignment command takes the form var:expr, then it is not difficult to design a parser for this type,

commandParse :: Parse Char Command

We will assume this has been built when we revisit the calculator example below.

Testing parsers in QuickCheck

If we’re able to generate random terms of type Expr or Command then we can write some elegant QuickCheck tests by ‘round tripping’ from expression to string – via a show function – and then back to an expression by parsing the string. We show how to generate these random terms in DSLs for computation: generating data in QuickCheck.

Conclusions

The type of parsers Parse a b with the functions

none     :: Parse a b
succeed  :: b -> Parse a b
spot     :: (a -> Bool) -> Parse a a
alt      :: Parse a b -> Parse a b -> Parse a b
>*>      :: Parse a b -> Parse a c -> Parse a (b,c)
build    :: Parse a b -> (b -> c) -> Parse a c
topLevel :: Parse a b -> [a] -> b

allow us to construct so-called recursive descent parsers in a straightforward way. It is worth looking at the aspects of the language we have exploited.

• The type Parse a b is represented by a function type, so that all the parser combinators are higher order functions.

• Because of polymorphism, we do not need to be specific about either the input or the output type of the parsers we build. In our example we have confined ourselves to inputs which are strings of characters, but they could have been tokens of any other type, if required: we might take the tokens to be words which are then parsed into sentences, for instance. More importantly in our example, we can return objects of any type using the same combinators, and in the example we returned lists and pairs as well as simple characters and expressions.

• Lazy evaluation plays a role here also. The possible parses we build are generated on demand as the alternatives are tested. The parsers will backtrack through the different options until a successful one is found.

Building general libraries like this parser library is one of the major advantages of using a modern functional programming language with the facilities mentioned above. From a toolkit like this it is possible to build a whole range of parsers and language processors which can form the front ends of systems of all sorts.

We will return to a discussion of parsing in Chapter 18; note also that we could make the type of Parse a b into an abstract data type, along the lines discussed in Abstract data types. On the other hand, it would also be useful to leave the implementation open to extension by users, which is the way in which other Haskell libraries are made available.

Exercises

17.20 Define a parser which recognizes strings representing Haskell lists of integers, like "[2,-3,45]".

17.21 Define a parser to recognize simple sentences of English, with a subject, verb and object. You will need to provide some vocabulary, "cat", "dog", and so on, and a parser to recognize a string. You will also need to define a function

tokenList :: Eq a => [a] -> Parse a [a]

so that, for instance,

tokenList "Hello" "Hello Sailor" ~> [ ("Hello"," Sailor") ]

17.22 Define the function

spotWhile :: (a -> Bool) -> Parse a [a]

whose parameter is a function which tests elements of the input type, and returns the longest initial part of the input, all of whose elements have the required property. For instance

spotWhile digit "234abc"  ~> [ ("234","abc") ]
spotWhile digit "abc234"  ~> [ ([],"abc234") ]

Infinite lists

One important consequence of lazy evaluation is that it is possible for the language to describe infinite structures. These would require an infinite amount of time to evaluate fully, but under lazy evaluation it is possible to compute with only portions of a data structure rather than the whole object. Any recursive type will contain infinite objects; we concentrate on lists here, as these are by far the most widely used infinite structures.

In this section we look at a variety of examples, starting with simple one-line definitions and moving to an examination of random numbers to be used in our simulation case study. The simplest examples of infinite lists are constant lists like

ones = 1 : ones

Evaluation of this in a Haskell system produces a list of ones, indefinitely. This can be interrupted in GHCi by typing Ctrl-C; this produces the result

[1,1,1,1,1,1,1,^C,1,1,1,Interrupted.

We can sensibly evaluate functions applied to ones. If we define

addFirstTwo :: [Integer] -> Integer
addFirstTwo (x:y:zs) = x+y

then applied to ones we have

addFirstTwo ones
~> addFirstTwo (1:ones)
~> addFirstTwo (1:1:ones)
~> 1+1
~> 2

Built into the system are the lists [n .. ], [n,m .. ], so that

[3 .. ]   = [3,4,5,6,...
[3,5 .. ] = [3,5,7,9,...

We can define these ourselves:

from :: Integer -> [Integer]
from n = n : from (n+1)

fromStep :: Integer -> Integer -> [Integer]
fromStep n m = n : fromStep (n+m) m

and an example evaluation gives

fromStep 3 2
~> 3 : fromStep 5 2
~> 3 : 5 : fromStep 7 2
~> ...

These functions are also defined over any instance of the Enum class; details can be found in standard prelude.

List comprehensions can also define infinite lists. The list of all Pythagorean triples – whole numbers which can the sides of a right-angled triangle – is given by selecting z in [2 .. ], and then selecting suitable values of x and y below that.

pythagTriples =
  [ (x,y,z) | z <- [2 .. ] , y <- [2 .. z-1] ,
              x <- [2 .. y-1] , x*x + y*y == z*z ]
pythagTriples
= [(3,4,5),(6,8,10),(5,12,13),(9,12,15),(8,15,17),(12,16,20),...

The powers of an integer are given by

powers :: Integer -> [Integer]
powers n = [ n^x | x <- [0 .. ] ]

and this is a special case of the prelude function iterate, which gives the infinite list

[ x , f x , .. , f^n x , ..

iterate :: (a -> a) -> a -> [a]
iterate f x = x : iterate f (f x)

Example 2.

1. Generating prime numbers

A positive integer greater than one is prime if it is divisible only by itself and one. The Sieve of Eratosthenes – an algorithm known for over two thousand years – works by cancelling out all the multiples of numbers, once they are established as prime. The primes are the only elements which remain in the list. The process is illustrated in The Sieve of Eratosthenes..

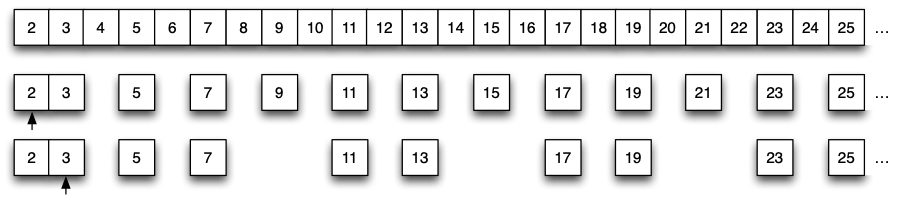

We begin with the list of numbers starting at 2. The head is 2, and we remove all the multiples of 2 from the list. The head of the remainder of the list, 3, is prime, since it was not removed in the sieve by 2. We therefore sieve the remainder of the list of multiples of 3, and repeat the process indefinitely. As a Haskell definition, we write

primes :: [Integer]

primes       = sieve [2 .. ]
sieve (x:xs) = x : sieve [ y | y <- xs , y `mod` x > 0]

where we test whether x divides y by evaluating y ‘mod‘ x; y is a multiple of x if this value is zero. Beginning the evaluation, we have

primes
~> sieve [2 .. ]
~> 2 : sieve [ y | y <- [3 .. ] , y `mod` 2 > 0]
~> 2 : sieve (3 : [ y | y <- [4 .. ] , y `mod` 2 > 0])
~> 2 : 3 : sieve [ z | z <- [ y | y <- [4 .. ] , y `mod` 2 > 0],
                      z `mod` 3 > 0]
~> ...
~> 2 : 3 : sieve [ z | z <- [5,7,9...] , z `mod` 3 > 0]
~> ...
~> 2 : 3 : sieve [5,7,11,...]
~> ...

Can we use primes to test for a number being a prime? If we evaluate member primes 7 we get the response True, while member primes 6 gives no answer. This is because an infinite number of elements have to be checked before we conclude that 6 is not in the list. The problem is that member cannot use the fact that primes is ordered. This we do in memberOrd.

memberOrd :: Ord a => [a] -> a -> Bool
memberOrd (x:xs) n
  | x<n         = memberOrd xs n
  | x==n        = True
  | otherwise   = False

The difference here is in the final case: if the head of the list (x) is greater than the element we seek (n), the element cannot be a member of the ordered list. Evaluating the test again,

memberOrd [2,3,5,7,11,...] 6
~> memberOrd [3,5,7,11,...] 6
~> memberOrd [5,7,11,...] 6
~> memberOrd [7,11,...] 6
~> False

2. Generating random numbers

Many computer systems require us to generate ‘random’ numbers, one after another. Our queuing simulation is a particular example upon which we focus here, after looking at the basics of the problem.

No Haskell program can produce a truly random sequence; after all, we want to be able to predict the behaviour of our programs, and randomness is inherently unpredictable. What we can do, however, is generate a pseudo-random sequence of natural numbers, smaller than modulus. This linear congruential method works by starting with a seed, and then by getting the next element of the sequence from the previous value thus

nextRand :: Integer -> Integer
nextRand n = (multiplier*n + increment) `mod` modulus

A (pseudo-)random sequence is given by iterating this function,

randomSequence :: Integer -> [Integer]
randomSequence = iterate nextRand

Given the values

seed       = 17489
multiplier = 25173
increment  = 13849
modulus    = 65536

the sequence produced by randomSequence seed begins

[17489,59134,9327,52468,43805,8378,...

The numbers in this sequence, which range from 0 to 65535, all occur with the same frequency. What are we to do if instead we want the numbers to come in the (integer) range a to b inclusive? We need to scale the sequence, which is achieved by a map:

scaleSequence :: Integer -> Integer -> [Integer] -> [Integer]
scaleSequence s t
  = map scale
    where
    scale n = n `div` denom + s
    range   = t-s+1
    denom   = modulus `div` range

The original range of numbers 0 to modulus-1 is split into range blocks, each of the same length. The number s is assigned to values in the first block, s+1 to values in the next, and so on.

In our simulation example, we want to generate for each arrival the length of service that person will need on being served. For illustration, we suppose that they range from 1 to 6 minutes, but that they are supposed to happen with different probabilities.

We need a function to turn such a distribution into a transformer of infinite lists. Once we have a function transforming individual values, we can map it along the list.

We can represent a distribution of objects of type a by a list of type [(a,Float)], where we assume that the numeric entries add up to one. Our function transforming individual values will be

makeFunction :: [(a,Float)] -> (Float -> a)

so that numbers in the range 0 to 65535 are transformed into items of type a. The idea of the function is to give the following ranges to the entries for the list above.

where m is used for modulus. The definition follows:

makeFunction dist = makeFun dist 0.0

makeFun ((ob,p):dist) nLast rand
  | nNext >= rand && rand > nLast
        = ob
  | otherwise
        = makeFun dist nNext rand
          where
          nNext = p*fromIntegral modulus + nLast

The makeFun function has an extra argument, which carries the position in the range 0 to modulus-1 reached so far in the search; it is initially zero. The fromIntegral function used here converts an Int to an equivalent Float.

The transformation of a list of random numbers is given by

map (makeFunction dist)

and the random distribution of waiting times we require begins thus

map (makeFunction dist . fromIntegral) (randomSequence seed)
= [2,5,1,4,3,1,2,5,4,2,2,2,1,3,2,5,...

with 6 first appearing at the 35th position.

A full library for generating random numbers and random data for other types is given in System.Random.

Infinite list generators

The list comprehension pythagTriples2, intended to produce the list of all Pythagorean triples, instead produces no output to the prompt.

pythagTriples2 =

  = [ (x,y,z) | x <- [2 .. ] ,

                y <- [x+1 .. ] ,

                z <- [y+1 .. ] ,

                x*x + y*y == z*z ]

The problem is in the order of choice of the elements. The first choice for x is 2, and for y is 3; given this, there are an infinite number of values to try for z: 4, 5 and so on, indefinitely. We therefore never try any of the other choices for x or y, among which the triples lie.

Two options present themselves. First we can redefine the solution, as in the original pythagTriples, so that it involves only one infinite list. Alternatively, we can try to write a function which returns all pairs of elements from two infinite lists:

infiniteProduct :: [a] -> [b] -> [(a,b)]

This is left as an exercise. Using such a function it is possible to adapt the definition of pythagTriples2 to make it give all the Pythagorean triples.

Exercises

17.23 Define the infinite lists of factorial and Fibonacci numbers,

factorial = [1,1,2,6,24,120,720,...]
fibonacci = [0,1,1,2,3,5,8,13,21,...]

17.24 Give a definition of the function

factors :: Int -> [Int]

which returns a list containing the factors of a positive integer. For instance,

factors 12 = [1,2,3,4,6,12]

Using this function or otherwise, define the list of numbers whose only prime factors are 2, 3 and 5, the so-called Hamming numbers:

hamming = [1,2,3,4,5,6,8,9,10,12,15,...

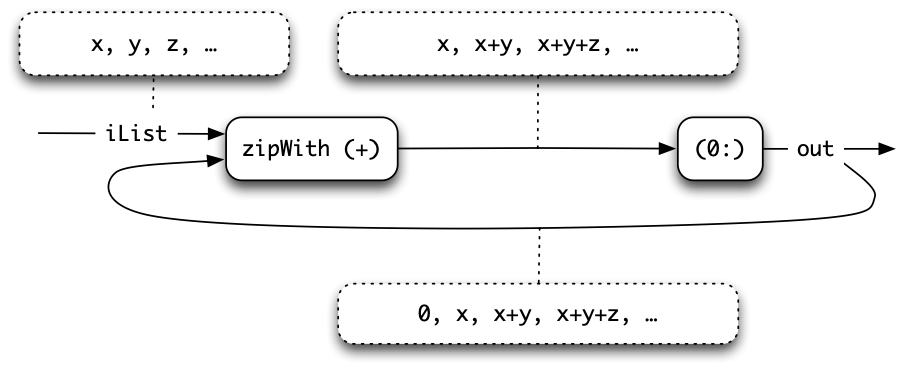

17.25 Define the function

runningSums :: [Int] -> [Int]

which calculates the running sums

[0,a0,a0+a1,a0+a1+a2,...

of a list

[a0,a1,a2,...

17.26 Define the function infiniteProduct specified above, and use it to correct the definition of pythagTriples2.

Why infinite lists?

Haskell supports infinite lists and other infinite structures, and we saw in the last section that we could define a number of quite complicated lists, like the list of prime numbers, and lists of random numbers. The question remains, though, of whether these lists are anything other than a curiosity. There are two arguments which show their importance in functional programming.

First, an infinite version of a program can be more abstract, and so simpler to write. Consider the problem of finding the nth prime number, using the Sieve of Eratosthenes. If we work with finite lists, we need to know in advance how large a list is needed to accommodate the first n primes; if we work with an infinite list, this is not necessary: only that part of the list which is needed will be generated as computation proceeds.=1

In a similar way, the random numbers given by randomSequence seed provided an unlimited resource: we can take as many random numbers from the list as we require. There needs to be no decision at the start of programming as to the size of sequence needed. (These arguments are rather like those for virtual memory in a computer. It is often the case that predicting the memory use of a program is possible, but tiresome; virtual memory makes this unnecessary, and so frees the programmer to proceed with other tasks.)

The second argument is of wider significance, and can be seen by re-examining the way in which we generated random numbers. We generated an infinite list by means of iterate, and we transformed the values using map; these operations are pictured in A generator and a transformer. as a generator of and a transformer of lists of values. These values are shown in the dashed boxes. These components can then be linked together, giving more complex combinations, as in Linking processes together..

This approach modularizes the generation of values in a distribution in an interesting way. We have separated the generation of the values from their transformation, and this means we can change each part independently of the other.

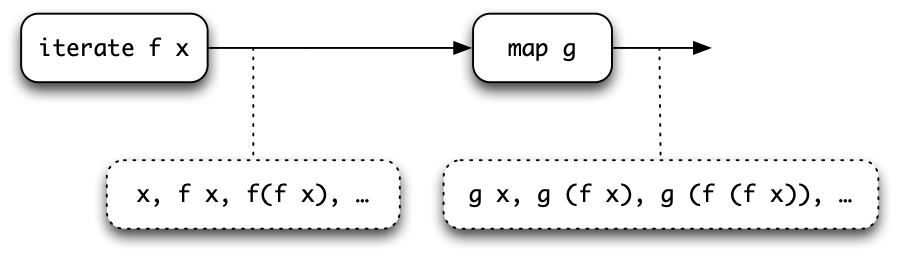

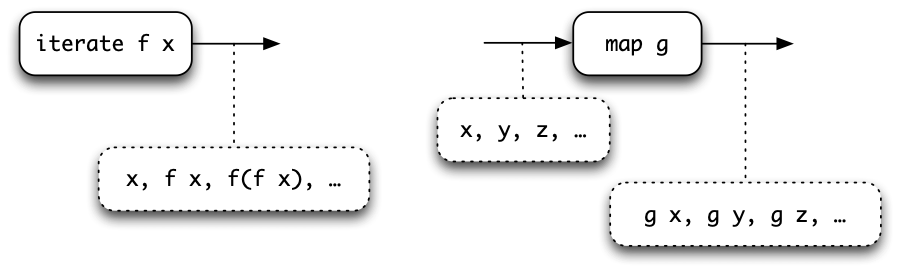

Once we have seen the view of infinite lists as the links between processes, other combinations suggest themselves, and in particular we can begin to write process-style programs which involve recursion.

Among the exercises in the last section was the problem of finding the running sums

[0,a0,a0+a1,a0+a1+a2,...

of the list [a0,a1,a2,.... Given the sum up to ak, say, we get the next sum by adding the next value in the input, ak+1. It is as if we feed the sum back into the process to have the value ak+1 added. This is precisely the effect of the network of processes in A process to compute the running sums of a list., where the values passing along the links are shown in the dotted boxes.=1

The first value in the output out is 0, and we get the remaining values by adding the next value in iList to the previous sum, appearing in the list out. This is translated into Haskell as follows. The output of the function on input iList is out. This is itself got by adding 0 to the front of the output from the zipWith (+), which itself has inputs iList and out. In other words,

listSums :: [Integer] -> [Integer]

listSums iList = out
                 where
                 out = 0 : zipWith (+) iList out

where we recall that zipWith is defined by

zipWith f (x:xs) (y:ys) = f x y : zipWith f xs ys
zipWith f _     _       = []

and the operator section (0:) puts a zero on the front of a list. We give a calculation of an example now.

listSums [1 .. ]
~> out
~> 0 : zipWith (+) [1 .. ] out
~> 0 : zipWith (+) [1 .. ] (0:...)   -- (1)
~> 0 : 1+0 : zipWith (+) [2 .. ] (1+0:...)  -- (2)
~> 0 : 1 : 2+1 : zipWith (+) [3 .. ] (2+1:...)  ~> ...

In making this calculation, we replace the occurrence of out in line (1) with the incomplete list (0:...). In a similar way, we replace the tail of out by (1+0:...) in line (2).

The definition of listSums is an example of the general function scanl’, which combines values using the function f, and whose first output is st.

scanl' :: (a -> b -> b) -> b -> [a] -> [b]
scanl' f st iList
  = out
    where
    out = st : zipWith f iList out

The function listSums is given by scanl’ (+) 0, and a function which keeps a running sort of the initial parts of list is sorts = scanl’ ins [], where ins inserts an element in the appropriate place in a sorted list. The list of factorial values, [1,1,2,6,...] is given by scanl’ (*) 1 [1 .. ], and taking this as a model, any primitive recursive function can be described in a similar way.

The definition we give here is a minor variant of the standard function scanl, but we choose to give the definition here because of its close correspondence to the process networks for running sums given in A process to compute the running sums of a list..

Exercises

17.27 Give a definition of the list [ 2^n | n <- [0 .. ] ] using a process network based on scanl’. (Hint: you can take the example of factorial as a guide.)

17.28 How would you select certain elements of an infinite list? For instance, how would you keep running sums of the positive numbers in a list of numbers?

17.29 How would you merge two infinite lists, assuming that they are sorted? How would you remove duplicates from the list which results? As an example, how would you merge the lists of powers of 2 and 3?

17.30 Give definitions of the lists of Fibonacci numbers [0,1,1,2,3,5,...] and Hamming numbers [1,2,3,4,5,6,8,9,...] (defined) using networks of processes. For the latter problem, you may find the merge function of the previous question useful.

Case study: simulation

We are now in a position to put together the ingredients of the queue simulation covered in

• Design with algebraic data types, where we designed the algebraic types Inmess and Outmess,

• Simulation, where the abstract types QueueState and ServerState were introduced, and in

• Infinite lists, where we showed how to generate an infinite list of pseudo-random waiting times chosen according to a distribution over the times 1 to 6.

As we said in Design with algebraic data types, our top-level simulation will be a function from a series of input messages to a series of output messages, so

doSimulation :: ServerState -> [Inmess] -> [Outmess]

where the first parameter is the state of the server at the start of the simulation. In Simulation we presented the function performing one step of the simulation,

simulationStep :: ServerState ->
                  Inmess ->
                  (ServerState, [Outmess])

which takes the current server state, and the input message arriving at the current minute and returns the state after one minute’s processing, paired with the list of the output messages produced by the queues that minute (potentially every queue could release a customer at the same instant, just as no customers might be released.)

The output of the simulation will be given by the output messages generated in the first minute, and after those the results of a new simulation beginning with the updated state:

doSimulation servSt (im:messes)
  = outmesses ++ doSimulation servStNext messes
    where
    (servStNext , outmesses) = simulationStep servSt im

How do we generate an input sequence? From Infinite lists we have the sequence of times given by

randomTimes
  = map (makeFunction dist . fromIntegral) (randomSequence seed)
  ~> [2,5,1,4,3,1,2,5,...

We are to have arrivals of one person per minute, so the input messages we generate are

simulationInput
  = zipWith Yes [1 .. ] randomTimes
  ~> [ Yes 1 2 , Yes 2 5 , Yes 3 1 , Yes 4 4 , Yes 5 3 ,...

What are the outputs produced when we run the simulation on this input with four queues, by setting the constant numQueues to 4? The output begins

doSimulation serverStart simulationInput
~> [Discharge 1 0 2, Discharge 3 0 1, Discharge 6 0 1,
     Discharge 2 0 5, Discharge 5 0 3, Discharge 4 0 4,
     Discharge 7 2 2,...

The first six inputs are processed without delay, but the seventh requires a waiting time of 2 before being served.

The infinite number of arrivals represented by simulationInput will obviously generate a corresponding infinite number of output messages. We can make a finite approximation by giving the input

simulationInput2 = take 50 simulationInput ++ noes
noes = No : noes

where after one arrival in each of the first 50 minutes, no further people arrive. Fifty output messages will be generated, and we define this list of outputs thus:

take 50 (doSimulation serverStart simulationInput2)

Experimenting

We now have the facilities to begin experimenting with different data, such as the distribution and the number of queues. The total waiting time for a (finite) sequence of Outmess is given by

totalWait :: [Outmess] -> Int
totalWait = sum . map waitTime
            where
            waitTime (Discharge _ w _) = w

For simulationInput2 the total waiting time is 29, going up to 287 with three queues and down to zero with five. We leave it to the reader to experiment with the round robin simulation outlined in the exercises of Simulation.

A more substantial project is to model a set-up with a single queue feeding a number of bank clerks – one way to do this is to extend the serverState with an extra queue which feeds into the individual queues: an element leaves the feeder queue when one of the small queues is empty. This should avoid the unnecessary waiting time we face when making the wrong choice of queue, and the simulation shows that waiting times are reduced by this strategy, though by less than we might expect if service times are short.

Proof revisited

After summarizing the effect that lazy evaluation has on the types of Haskell, we examine the consequences for reasoning about programs. Taking lists as a representative example, we look at how we can prove properties of infinite lists, and of all lists, rather than simply the set of finite lists, which was the scope of the proofs we looked at in Reasoning about programs, Higher-order functions and Algebraic types.

This section cannot give complete coverage of the issues of verification; we conclude with pointers to further reading.

Undefinedness

In nearly every programming language, it is possible to write a program which fails to terminate, and Haskell is no exception. We call the value of such programs the undefined value, as it gives no result to a computation.

The simplest expression which gives an undefined result is

undef :: a
undef = undef  -- (undef.1)

which gives a non-terminating or undefined value of every type, but of course we can write an undefined program without intending to, as in

fak n = (n+1) * fak n

where we have confused the use of n and n+1 in attempting to define the factorial function. The value of fak n will be the same as undef, as they are both non-terminating.

We should remark that we are using the term ‘undefined’ in two different ways here. The name undef is given a definition by (undef.1); the value that the definition gives it is the undefined value, which represents the result of a calculation or evaluation which fails to terminate (and therefore fails to define a result).

The existence of these undefined values has an effect on the type of lists. What if we define, for example, the list

list1 = 2:3:undef

The list has a well-defined head, 2, and tail 3:undef. Similarly, the tail has a head, 3, but its tail is undefined. The type [Integer] therefore contains partial lists like list1, built from the undefined list, undef, parts of which are defined and parts of which are not.

Of course, there are also undefined integers, so we also include in [Integer] lists like

list2 = undef:[2,3]
list3 = undef:4:undef

which contain undefined values, and might also be partial. Note that in list3 the first occurrence of undef is at type Integer while the second is at type [Integer].

What happens when a function is applied to undef? We use the rules for calculation we have seen already, so that the const function of the standard prelude satisfies

const 17 undef ~> 17

If the function applied to undef has to pattern match, then the result of the function will be undef, since the pattern match has to look at the structure of undef, which will never terminate. For instance, for the functions used in Reasoning about programs,

sum undef       ~> undef   -- (sum.u)
doubleAll undef ~> undef   -- (doubleAll.u)

In writing proofs earlier in the book we were careful to state that in some cases the results hold only for defined values.

An integer is defined if it is not equal to undef; a list is defined if it is a finite list of defined values; using this as a model it is not difficult to give a definition of the defined values of any algebraic type.

A finite list as we have defined it may contain undefined values. Note that in some earlier proofs we stipulated that the results hold only for (finite) lists of defined values, that is for defined lists.

List induction revisited

As we said above, since there is an undefined list, undef, in each list type, lists can be built up from this; there will therefore be two base cases in the induction principle.

Proof by structural induction: fp-lists

To prove the property P(xs) for all finite or partial lists (fp-lists) xs we have to do three things:

Among the results we proved by structural induction in Reasoning about programs were the equations

sum (doubleAll xs) = 2 * sum xs   -- (sum-double)
xs ++ (ys ++ zs)   = (xs ++ ys) ++ zs  -- (assoc++)
reverse (xs ++ ys) = reverse ys ++ reverse xs  -- (reverse++)

for all finite lists xs, ys and zs. For these results to hold for all fp-lists, we need to show that

sum (doubleAll undef) = 2 * sum undef   -- (sum-double.u)
undef ++ (ys ++ zs)   = (undef ++ ys) ++ zs  -- (assoc++.u)
reverse (undef ++ ys) = reverse ys ++ reverse undef  -- (reverse++.u)

as well as being sure that the induction step is valid for all fp-lists. Now, by (sum.u) and (doubleAll.u) the equation (sum-double.u) holds, and so (sum-double) holds for all fp-lists. In a similar way, we can show (assoc++.u). More interesting is (reverse++.u). Recall the definition of reverse:

reverse []    = []
reverse (x:xs) = reverse xs ++ [x]

It is clear from this that since there is a pattern match on the parameter, undef as the first parameter will give an undef result, so

reverse undef = undef

Taking a defined list, like [2,3] for ys in (reverse++.u) gives

reverse (undef ++ [2,3])
  = reverse undef
  = undef

reverse [2,3] ++ reverse undef
  = [3,2] ++ undef

This is enough to show that (reverse++.u) does not hold, and that we cannot infer that (reverse++) holds for all fp-lists. Indeed the example above shows exactly that (reverse++) is not valid.

Infinite lists

Beside the fp-lists, there are infinite members of the list types. How can we prove properties of infinite lists? A hint is given by our discussion of printing the results of evaluating an infinite list. In practice what happens is that we interrupt evaluation by hitting Ctrl-C after some period of time. We can think of what we see on the screen as an approximation to the infinite list.

If what we see are the elements a0,a1,a2,…,an, we can think of the approximation being the list

a0:a1:a2:...:an:undef

since we have no information about the list beyond the element an.

More formally, we say that the partial lists

undef, a0:undef, a0:a1:undef, a0:a1:a2:undef, ...

are approximations to the infinite list [a0,a1,a2,…,an,…].

Two lists xs and ys are equal if all their approximants are equal, that is for all natural numbers n, take n xs = take n ys. (The take function gives the defined portion of the nth approximant, and it is enough to compare these parts.) A more usable version of this principle applies to infinite lists only.

Infinite list equality

A list xs is infinite if for all natural numbers n, take n xs ≠ take (n+1) xs.
Two infinite lists xs and ys are equal if for all natural numbers n, xs!!n = ys!!n.

Example

Two factorial lists

Our example here is inspired by the process-based programs of Why infinite lists?. If fac is the factorial function

fac :: Int -> Int
fac 0 = 1  -- (fac.1)
fac m = m * fac (m-1)  -- (fac.2)

one way of defining the infinite list of factorials is

facMap = map fac [0 .. ]  -- (facMap.1)

while a process-based solution is

facs = 1 : zipWith (*) [1 .. ] facs  -- (facs.1)

Assuming these lists are infinite (which they clearly are), we have to prove for all natural numbers n that

facMap!!n = facs!!n   -- (facMap.!!)

extbfProof

In our proof we will assume for all natural numbers n the results

(map f xs)!!n        = f (xs!!n)  -- (map.!!)
(zipWith g xs ys)!!n = g (xs!!n) (ys!!n)  -- (zipWith.!!)

which we discuss again later in this section.

(facMap.!!) is proved by mathematical induction, that is we prove the result for 0 outright, and we prove the result for a positive n assuming the result for n-1.

Base

We start by proving the result at zero. Examining the left-hand side first,

facMap!!0
  = (map fac [0 .. ])!!0   -- by (facMap.1)
  = fac ([0 .. ]!!0)   -- by (map.!!)
  = fac 0  -- by def of [0 .. ],!!
  = 1   -- by (fac.1)

The right-hand side is

facs!!0
  = (1 : zipWith (*) [1 .. ] facs)!!0   -- by (facs.1)
  = 1  -- by def of !!

thus establishing the base case.

Induction

In the induction case we have to prove (facMap.!!) using the induction hypothesis:

facMap!!(n-1) = facs!!(n-1)   -- (hyp)

The left-hand side of (facMap.!!) is

facMap!!n
  = (map fac [0 .. ])!!n   -- by (facMap.1)
  = fac ([0 .. ]!!n)   -- by (map.!!)
  = fac n   -- by def of [0 .. ],!!
  = n * fac (n-1)   -- by (fac.2)

It is not hard to see that we have facMap !! (n-1) = fac (n-1) by a similar argument to the first three steps here and so,

  = n * (facMap!!(n-1))

The right-hand side of (facMap.!!) is

facs!!n
  = (1 : zipWith (*) [1 .. ] facs)!!n   -- by (facs.1)
  = (zipWith (*) [1 .. ] facs)!!(n-1)   -- by def of !!
  = (*) ([1 .. ]!!(n-1)) (facs!!(n-1))  -- by (zipWith.!!)
  = ([1 .. ]!!(n-1)) * (facs!!(n-1))  -- by def of (*)
  = n * (facs!!(n-1))   -- by def of [1 .. ],!!
  = n * (facMap!!(n-1))   -- by (hyp)

The final step of this proof is given by the induction hypothesis, and completes the proof of the induction step and the result itself. ⬛

Proofs for infinite lists

When are results we prove for all fp-lists valid for all lists? If a result holds for all fp-lists, then it holds for all approximations to infinite lists. For some properties it is enough to know the property for all approximations to know that it will be valid for all infinite lists as well. In particular, this is true for all equations. This means that, for example, we can assert that for all lists xs,

(map f . map g) xs = map (f.g) xs

and therefore by the principle of extensionality for functions,

map f . map g = map (f.g)

Many other of the equations we proved initially for finite lists can be extended to proof for the fp-lists, and therefore to all lists. Some of these are given in the exercises which follow.

Further reading

The techniques we have given here provide a flavour of how to write proofs for infinite lists and infinite data structures in general. We cannot give the breadth or depth of a full presentation, but refer the reader to for more details. An alternative approach to proving the factorial list example is given in , which also gives a survey of proof in functional programming.

Exercises

17.31 Show that for all fp-lists ys and zs,

undef ++ (ys ++ zs)  = (undef ++ ys) ++ zs

to infer that ++ is associative over all lists.

17.32 If rev xs is defined to be shunt xs [], as in Generalizing the proof goal, show that

rev (rev undef) = undef   -- (rev-rev.1)

In Reasoning about programs we proved that

rev (rev xs) = xs   -- (rev-rev.2)

for all finite lists xs.

Why can we not infer from (rev-rev.1) and (rev-rev.2) that the equation rev (rev xs) = xs holds for all fp-lists xs?

17.33 Prove for all natural numbers m, n and functions f :: Int -> a that

(map f [m .. ])!!n = f (m+n)

[Hint: you will need to choose the right variable for the induction proof.]

17.34 Prove that the lists

facMap = map fac [0 .. ]
facs = 1 : zipWith (*) [1 .. ] facs

are infinite.

17.35 If we define indexing thus

(x:_)!!0  = x
(_:xs)!!n = xs!!(n-1)
[]!!n     = error "Indexing"

show that for all strict functions f, fp-lists xs and natural numbers n,

(map f xs)!!n = f (xs!!n)

and therefore infer that the result is valid for all lists xs. State and prove a similar result for zipWith.

17.36 Show that the following equations hold between functions.

filter p . map f     = map f . filter (p . f)
filter p . filter q  = filter (q &&& p)
concat . map (map f) = map f . concat

where the operator &&& is defined by

(q &&& p) x = q x && p x

Summary

Lazy evaluation of Haskell expressions means that we can write programs in a different style. A data structure created within a program execution will only be created on demand, as we saw with the example of finding the sum of fourth powers. In finding routes through a graph we saw that we could explore just that part of the graph which is needed to reveal a path. In these and many more cases the advantage of lazy evaluation is to give programs whose purpose is clear and whose execution is efficient.

We re-examined the list comprehension notation, which makes many list processing programs easier to express; we saw this in the particular examples of route finding and parsing.

A design principle exploited in this chapter involved the use of lazy lists: if a function can return multiple results it is possible to represent this as a list; using lazy evaluation, the multiple results will only be generated one-by-one, as they are required. Also, we are able to represent ‘no result’ by the empty list, []. This ‘list of successes’ method is useful in a variety of contexts.

Exploiting this principle as well as higher-order functions, polymorphism and list comprehensions we gave a library of parsing functions, which we saw applied to the type of arithmetical expressions, Expr. This showed one of the strengths of modern functional programming languages, whose constructs are especially well suited to describing general toolkits of this sort.

Rather than being simply a curiosity, this chapter has shown that we can exploit infinite lists for a variety of purposes.

• In giving an infinite list of prime or random numbers we provide an unlimited resource: we do not have to know how much of the resource we need while constructing the program; this abstraction makes programming simpler and clearer.

• Infinite lists provide a mechanism for process-based programming in a functional setting.

The chapter concluded with a discussion of how proofs could be lifted to the partial and infinite elements of the list type: criteria were given in both cases and we gave examples and counter-examples in illustration.

1. In fact, multiplication could be ‘lazier’, since it is possible to say that 0*n is 0 without evaluating n. ↩
