Defining functions over lists

We have already seen how to define a variety of functions over lists using a combination of list comprehensions and the built-in list processing functions in the Haskell prelude and libraries. This chapter looks ‘under the bonnet’ and explains how functions over lists can be defined by means of recursion. This will allow us to define the prelude functions we have already been using, as well as letting us look at a wider class of applications, including sorting and a case study of text processing.

The chapter begins with a summary of the mechanism of pattern matching, and continues with a justification and explanation of recursion echoing the discussion in Designing and writing programs. We then explore a variety of examples both of functions defined by primitive recursion and of more general recursive functions, and conclude with the case study mentioned earlier.

Pattern matching revisited

We have seen that function definitions take the form of conditional equations like

mystery :: Integer -> Integer -> Integer
mystery x y
  | x==0        = y
  | otherwise   = x

where a choice of two alternatives is made by guards; we can rewrite this into two equations, thus

mystery 0 y = y  -- (mystery.1)
mystery x y = x  -- (mystery.2)

where we distinguish between the two cases by using a pattern – here the literal 0 – instead of a variable. Just as for guards, the equations are applied sequentially, and so (mystery.2) will only be used in cases that (mystery.1) does not apply.

Another aspect of this definition is that y is not used on the right-hand side of (mystery.2). Because of this we do not need to give a name to the second argument in this case, and so we can replace the variable y with the wildcard ‘_’ which matches anything, thus

mystery 0 y = y
mystery x _ = x

We have therefore seen that pattern matching can be used for distinguishing between certain sorts of cases in function definitions. We have also seen pattern matching used to name the components of tuples, as in

joinStrings :: (String,String) -> String
joinStrings (st1,st2) = st1 ++ "\t" ++ st2

where the variables st1 and st2 will be matched with the components of any argument.

We can see the case switching and extracting components in action together in the definition of the function to give the area of a Shape, first seen in Alternatives:

area :: Shape -> Float
area (Circle r)      = pi*r*r
area (Rectangle h w) = h*w

The two equations apply to different kinds of shape, and within each equation the appropriate information is extracted: from a circle its radius, r, and from a rectangle its height, h, and width, w. We see exactly this combination of case switching and component extraction in working with lists too, as we see in the next section.

Summarizing patterns

A pattern can be one of a number of things:

• A literal value such as 24, ’f’ or True; an argument matches this pattern if it is equal to the value.

• A variable such as x or longVariableName; any argument value will match this.

• A wildcard ‘_’; any argument value will match this.

• A tuple pattern (p1,p2,...,pn). To match this, an argument must be of the form (v1,v2,...,vn), and each vk must match pk.

• A constructor applied to a number of patterns (C p1 p2,...,pn). To match this the argument must be an application of the constructor C to n arguments: each of the each vk must match the corresponding pattern pk. We’ll look at this case again in the next section.

In a function definition we have a number of conditional equations, each of which will have a left-hand side in which the function is applied to a number of patterns. When the function is applied we try to match the arguments with the patterns in sequence, and we use the first equation which applies; pattern matching in Haskell is thus sequential, in a similar way to the conditions expressed by guards.

Lists and list patterns

Every list is either empty, [], or is non-empty. In the latter case – take the example [4,2,3] – then it can be written in the form x:xs, where x is the first item in the list and xs is the remainder of the list; in our example, we have 4:[2,3]. We call 4 the head of the list and [2,3] the tail.

What is more, every list can be built up from the empty list by repeatedly applying ‘:’, and indeed Haskell lists are represented in that way internally. Our example list can be thought of as being built step-by-step from the right, like this

[]      3:[] = [3]      2:[3] = [2,3]      4:[2,3] = [4,2,3]

and we can write the list using ‘:’ repeatedly like this:

4:2:3:[]

Note that here we use the fact that ‘:’ is right associative, so that for any values of x, y and zs,

x:y:zs = x:(y:zs)

It is also not hard to see that 4:2:3:[] is the only way that [4,2,3] can be built using ‘:’. The operator ‘:’, of type

a -> [a] -> [a]

therefore has a special role to play for lists: it is a constructor for lists, since every list can be built up in a unique way from [] and ‘:’. For historical reasons we sometimes call this constructor cons. Not all functions that build lists are constructors: ++ can be used to build lists, but this construction will not be unique, since, for example

[1] ++ [2,3] = [1,2,3] = [1,2] ++ [3]

Pattern-matching definitions

If we want to make a definition covering all cases of lists we can write

fun xs = ....

but more often than not we will want to distinguish between empty and non-empty cases, as in the prelude functions

head             :: [a] -> a
head (x:_)        = x

tail             :: [a] -> [a]
tail (_:xs)       = xs

null             :: [a] -> Bool
null []           = True
null (_:_)        = False

where head takes the first item in a non-empty list, tail takes all but the head of a non-empty list and null checks whether or not a list is empty.

In the definition of null the pattern (_:_) will match any non-empty list, but it gives no names for the head and tail; when we need to name one of these, as in tail, then a different pattern, (_:xs), is used.

It has become an informal convention in the Haskell community to write variables over lists in the form xs, ys (pronounced ‘exes’, ‘whyes’) and so on, with variables x, y, …ranging over their elements. We will – when using short variable names – often use that convention.

We can now go back to the final case of pattern matching. A constructor pattern over lists will either be [] or will have the form (p:ps) where p and ps are themselves patterns.

• A list matches [] exactly when it is empty.

• A list will match the pattern (p:ps) if it is non-empty, and also if its head matches the pattern p and its tail the pattern ps.

In the case of the pattern (x:xs), it is sufficient for the argument to be non-empty to match the pattern; the head of the argument is matched with x and its tail with xs. Let’s look at some examples in more detail.

• The list [2,3,4] will match (p:ps), because 2 is matched with p and [3,4] with ps.

• The list [2,3,4] will match (q:(p:ps)), because 2 is matched with q, 3 is matched with p and [4] with ps.

• The list [5] will not match (q:(p:ps)); this is because 5 can match with q, but [] cannot be matched with (p:ps).

Patterns and Parentheses

A pattern involving a constructor like ‘:’ will always have to be parenthesized, since function application binds more tightly than any other operation. This means that writing

f x:xs

will be interpreted as

(f x):xs

and not as

f (x:xs)

as we would like.

The case construction

So far we have seen how to perform a pattern match over the arguments of functions; sometimes we might want to pattern match over other values. This can be done by a case expression, which we introduce by means of an example.

Suppose we are asked to find the first digit in the string st, returning ’\0’ in case no digit is found. We can use the function digits of List comprehensions to give us the list of all the digits in the string: digits st. If this is not empty, that is if it matches (x:_), we want to return its first element, x; if it is empty, we return ’\0’.

We therefore want to pattern match over the value of (digits st) and for this we use a case expression as follows:

firstDigit :: String -> Char

firstDigit st
  = case (digits st) of
      []    -> '\0'
      (x:_) -> x

A case expression has the effect of distinguishing between various alternatives – here those of an empty and a non-empty list – and of extracting parts of a value, by associating values with the variables in a pattern. In the case of matching e with (x:_) we associate the head of e with x; as we have used a wild-card pattern in (x:_), the tail of e is not associated with any variable.

So, case is a way of defining an expression using pattern matching, whereas up to now we have used pattern matching in defining a function. Both mechanisms are useful, and we will use them as appropriate. We can avoid using case by defining a function instead, but that is not always the best way of defining what we want.

In general, a case expression has the form

case e of
  p1 -> e1
  p2 -> e2
  ...
  pk -> ek

where e is an expression to be matched in turn against the patterns p1, p2, …, pk. If pi is the first pattern which e matches, the result is ei where the variables in pi are associated with the corresponding parts of e.

Exercises

7.1 Give a pattern-matching definition of a function which returns the first integer in a list plus one, if there is one, and returns zero otherwise.

7.2 Give a pattern-matching definition of a function which adds together the first two integers in a list, if a list contains at least two elements; returns the head element if the list contains one, and returns zero otherwise.

7.3 Give solutions to the previous two questions without using pattern matching, using built-in functions instead.

7.4 Give a definition of the firstDigit function without using a case expression.

Primitive recursion over lists

Suppose we are to find the sum of a list of integers. Just as we described calculating factorial in Recursion, we can think of laying out the values of sum in a table thus:

         sum [] = 0
 ....    sum [5] = 5    ....
 ....    sum [7,5] = 12    ....
 ....    sum [2,7,5] = 14     ....
 ....    sum [3,2,7,5] = 17      ....
 ....

and just as in the case of factorial, we can describe the table by describing the first line and how to go from one line to the next, as follows:

sum :: [Integer] -> Integer
sum []     = 0  -- (sum.1)
sum (x:xs) = x + sum xs  -- (sum.2)

This gives a definition of sum by primitive recursion over lists. In such a definition we give

• a starting point: the value of sum at [], and

• a way of going from the value of sum at a particular point – sum xs – to the value of sum on the next line, namely sum (x:xs).

There is also a calculational explanation for why this form of recursion works; again, this is just like the case put forward in Recursion. Consider the calculation of sum [3,2,7,5]. Using the equation (sum.2) repeatedly we have

sum [3,2,7,5]
~> 3 + sum [2,7,5]
~> 3 + (2 + sum [7,5])
~> 3 + (2 + (7 + sum [5]))
~> 3 + (2 + (7 + (5 + sum [])))

and now we can use the equation (sum.1) and integer arithmetic to give

~> 3 + (2 + (7 + (5 + 0)))
~> 17

We can see that the recursion used to define sum will give an answer on any finite list since each recursion step takes us closer to the ‘base case’ where sum is applied to [].

In the next section we look at a collection of examples of definitions by primitive recursion, before we do that we talk about a nice way of using QuickCheck to test functions from the Prelude or any other library which we re-implement.

Testing re-implemented functions using QuickCheck

Suppose we re-implement a function like sum which is already implemented in the Prelude. We need to make sure that we hide the Prelude definition, but we can also test our re-implementation against the original, using the qualified name of the hidden function. So, putting it all together we have

module Chapter7 where

import Prelude hiding (...,sum,...)
import qualified Prelude

import Test.QuickCheck

sum = ... our definition ...

prop_sum xs =  sum xs == Prelude.sum xs

Of course, this is also something we can do when we have ourselves written two different implementations of a particular function: test that they always give the same value using a QuickCheck property.

Exercises

7.5 Define the function

product :: [Integer] -> Integer

which gives the product of a list of integers, and returns 1 for an empty list; why is this particular value chosen as the result for the empty list?

7.6 Define the functions

and, or :: [Bool] -> Bool

which give the conjunction and disjunction of a list of Booleans. For instance,

and [False, True] = False
or  [False, True] = True

On an empty list and gives True and or gives False; explain the reason for these choices.

Finding primitive recursive definitions

We saw in the last section how primitive recursion over lists works, by means of two explanations: tabulating a function and calculating the result of a function. In this section we present a series of examples of primitive recursive definitions over lists. A template for a primitive recursive definition over lists is

fun []     = ....
fun (x:xs) = .... x .... xs .... fun xs ....

The crucial question to ask in trying to find a primitive recursive definition is:

What if we were given the value fun xs. How could we define fun (x:xs) from it?

We explore how definitions are found through a series of examples.

Example 1.

1. By analogy with sum, many other functions can be defined by ‘folding in’ an operator. The prelude functions product, and and or are examples; here we look at how to define the prelude function concat,

concat :: [[a]] -> [a]  -- (concat.0)

with the effect that

concat [e1,e2,...,en] = e1++e2++...++en

We can begin our definition

concat []     = []
concat (x:xs) = ....

How do we find concat (x:xs) if we are given concat xs? Look at the example where (x:xs) is the list [e1,e2,...,en]. The value of concat xs is going to be

e2++...++en

and the result we want is e1++e2++...++en, and so we simply have to join the list x to the front of the joined lists concat xs, giving the definition

concat []     = []  -- (concat.1)
concat (x:xs) = x ++ concat xs  -- (concat.2)

Looking at the definition here we can see that (x:xs) is a list of lists, since its element is joined to another list in (concat.2); the type of x will be the type of the result. Putting these facts together we can conclude that the type of the input is [[a]] and the type of the output is [a]; this agrees with the type given in (concat.0).

2. How is the function ++ which we used in the previous example itself defined? Can we use primitive recursion? One strategy we can use is to look at examples, so, taking 2 for x and [3,4] for xs we have

[2,3,4] ++ [9,8] = [2,3,4,9,8]
  [3,4] ++ [9,8] = [3,4,9,8]

so we get [2,3,4] ++ [9,8] by putting 2 on the front of [3,4] ++ [9,8]. In the case that the first list is empty,

     [] ++ [9,8] = [9,8]

These examples suggest a definition

(++) :: [a] -> [a] -> [a]

[]     ++ ys = ys
(x:xs) ++ ys = x:(xs++ys)

Note that the type of ++ allows lists of arbitrary type to be joined, as long as the two lists are of the same type.

3. A third example is to check whether an Int is an element of an Integer list,

elem :: Integer -> [Integer] -> Bool

Clearly, no value is an element of [], but under what circumstances is x an element of (y:ys)? If you are not sure about how to answer this question, now is the point to stop and look at an example or two.

Returning to the question, since (y:ys) is built by adding y to the front of ys, x can be an element of y:ys either

• by being equal to y, or

• by being an element of ys.

It is this second case where we use the value elem x ys, and we make the following primitive recursive definition of elem.

elem x []     = False  -- (elem.1)
elem x (y:ys) = (x==y) || (elem x ys)  -- (elem.2)

Repeated variables in patterns

Another candidate definition of elem is

elem x (x:ys) = True  -- (elem.3)
elem x (y:ys) = elem x ys

in which the equality check is done by repeating the variable x on the left-hand side of (elem.3). Unfortunately, repeated variables like this are not permitted in Haskell patterns.

4. Suppose we wish to double every element of an integer list

doubleAll :: [Integer] -> [Integer]

The neatest solution is to use a list comprehension

doubleAll xs = [ 2*x | x<-xs ]

but we could ask whether this can be done ‘by hand’, as it were, using primitive recursion. Looking at some examples, we expect that

  doubleAll [2,3] =   [4,6]
doubleAll [4,2,3] = [8,4,6]

so that to double all the elements of (x:xs) we need to double all the elements of xs, and to stick 2*x on the front. Formally, we have

doubleAll []     = []  -- (doubleAll.1)
doubleAll (x:xs) = 2*x : doubleAll xs  -- (doubleAll.2)

5. Suppose that we want to select the even elements from an integer list.

selectEven :: [Integer] -> [Integer]

Using a list comprehension, we can say

selectEven xs = [ x | x<-xs , isEven x ]

but can we give a primitive recursive definition of this function? For an empty list, there are no elements to select from,

selectEven [] = []  -- (selectEven.1)

but what happens in the case of a non-empty list? Consider the examples

selectEven [2,3,4] = [2,4] = 2 : selectEven [3,4]
selectEven [5,3,4] =   [4] =     selectEven [3,4]

It is thus a matter of taking selectEven xs, and adding x to (the front of) this only when x is even. We therefore define

selectEven (x:xs)  -- (selectEven.2)
  | isEven x    = x : selectEven xs
  | otherwise   =     selectEven xs

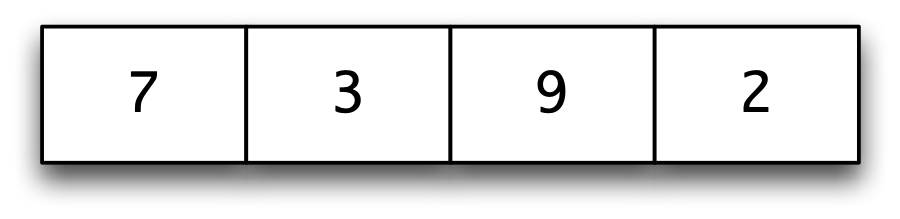

6. As a final example, suppose that we want to sort a list of numbers into ascending order. One way to sort the list

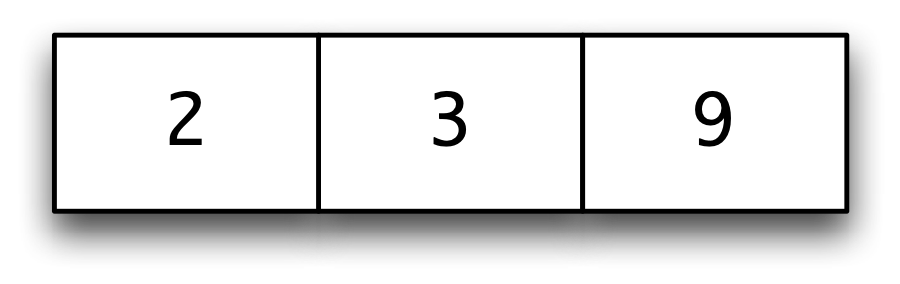

is to sort the tail [3,9,2] to give

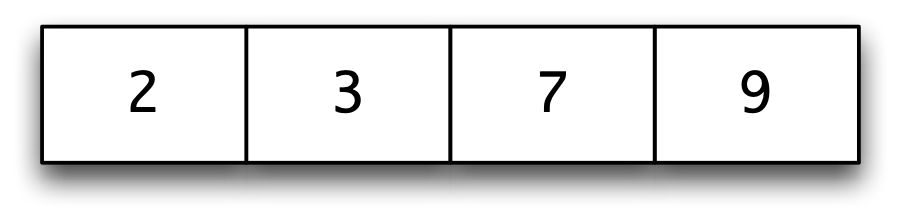

It is then a matter of inserting the head, 7, in the right place in this list, to give the result

This gives the definition of iSort – the ‘i’ is for insertion sort.

iSort :: [Integer] -> [Integer]

iSort []     = []   -- (iSort.1)
iSort (x:xs) = ins x (iSort xs)   -- (iSort.2)

This is a typical example of top-down definition, first discussed in Where do I start? Designing a program in Haskell. We have defined iSort assuming we can define ins. The development of the program has been in two separate parts, since we have a definition of the function iSort using a simpler function ins, together with a definition of the function ins itself. Solving each sub-problem is simpler than solving the original problem itself.

Now we have to define the function

ins :: Integer -> [Integer] -> [Integer]

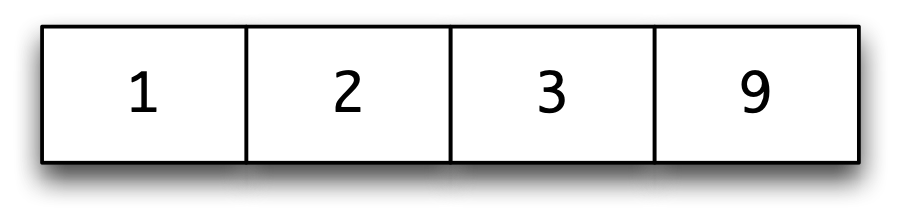

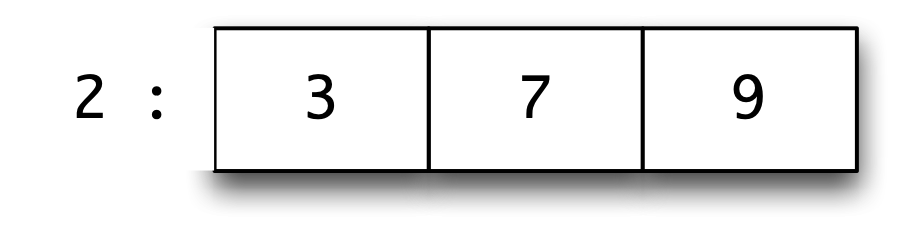

To get some guidance about how ins should behave, we look at some examples. Inserting 7 into [2,3,9] was given above, while inserting 1 into the same list gives

Looking at these two examples we see that

• in the case of 1, if the item to be inserted is no larger than the head of the list, we cons it to the front of the list;

• In the case of 7, if the item is greater than the head, we insert it in the tail of the list, and cons the head to the result, thus:

The function can now be defined, including the case that the list is empty.

ins x []    = [x]   -- (ins.1)
ins x (y:ys)
  | x <= y      = x:(y:ys)  -- (ins.2)
  | otherwise   = y : ins x ys  -- (ins.3)

We now show the functions in action, in the calculation of iSort [3,9,2]:

iSort [3,9,2]
~> ins 3 (iSort [9,2])   -- by (iSort.2)
~> ins 3 (ins 9 (iSort [2]))   -- by (iSort.2)
~> ins 3 (ins 9 (ins 2 (iSort [])))   -- by (iSort.2)
~> ins 3 (ins 9 (ins 2 []))   -- by (iSort.1)
~> ins 3 (ins 9 [2])   -- by (ins.1)
~> ins 3 (2 : ins 9 [])   -- by (ins.3)
~> ins 3 [2,9]   -- by (ins.1)
~> 2 : ins 3 [9]   -- by (ins.3)
~> 2 : [3,9]   -- by (ins.2)
~> [2,3,9]

Developing this function has shown the advantage of looking at examples while trying to define a function; the examples can give a guide about how the definition might break into cases, or the pattern of the recursion. We also saw how using top-down design can break a larger problem into smaller problems which are easier to solve.

In the next section we look at definitions by more general forms of recursion.

Exercises

7.7 Test your implementations against the built-in definitions, using the method outlined.

7.8 Using primitive recursion over lists, define a function

elemNum :: Integer -> [Integer] -> Integer

so that elemNum x xs returns the number of times that x occurs in the list xs.

Can you define elemNum without using primitive recursion, using list comprehensions and built-in functions instead?

7.9 Define a function

unique :: [Integer] -> [Integer]

so that unique xs returns the list of elements of xs which occur exactly once. For example, unique [4,2,1,3,2,3] is [4,1]. You might like to think of two solutions to this problem: one using list comprehensions and the other not.

7.10 Can you write a property which links elemNum and unique from the previous two questions? Check to see whether this property does hold using QuickCheck.

7.11 Give primitive recursive definitions of the prelude functions reverse and unzip.

7.12 Can you use the iSort function to find the minimum and maximum elements of a list of numbers? How would you find these elements without using iSort?

7.13 Design test data for the ins function. Your data should address different possible points of insertion, and also look at any exceptional cases.

7.14 Define a function

isSorted :: [Integer] -> Bool

which is true when its argument is sorted in ascending order. How could you use this to write QuickCheck properties to check your iSort and ins functions?

7.15 [Harder] Is it enough to test that the result of iSort is sorted? What other property should a sorting function have? Can you write a QuickCheck property to check this?

7.16 By modifying the definition of the ins function we can change the behaviour of the sort, iSort. Redefine ins in two different ways so that

• the list is sorted in descending order;

• duplicates are removed from the list. For example,

  iSort [2,1,4,1,2] = [1,2,4]


  under this definition.

7.17 Would you need to redefine your function isSorted to deal with the two different variations of sorting discussed in the last question? If so, how would you modify it; if not, explain why not.

7.18 Design test data for the duplicate-removing version of iSort, explaining your choices.

7.19 By modifying the definition of the ins and iSort functions, define a function to sort lists of pairs of numbers. The ordering should be lexicographic – the dictionary ordering. This ordering first looks at the first halves of the pairs; only if these values are equal are the second halves compared. For instance, (2,73) is smaller than (3,0), and this is smaller than (3,2).

General recursions over lists

Just as we argued in General forms of recursion, a recursive definition of a function need not always use the value of the function on the tail; any recursive call to a value on a simpler list will be legitimate, and so a number of different patterns of recursion are available for finding function definitions over lists. In trying to use recursion over lists to define a function we need to pose the question:

In defining f (x:xs) which values of f ys would help me to work out the answer?

Example 2.

1. It is possible to use recursion over two arguments simultaneously, an example being the definition of the prelude function zip. Recall that here we turn two lists into a list of pairs,

zip :: [a] -> [b] -> [(a,b)]

with the examples

zip [1,5] ['c','d']     = [(1,'c'), (5,'d')]
zip [1,5] ['c','d','e'] = [(1,'c'), (5,'d')]

If each of the lists is non-empty, we form a pair from their heads, and then zip their tails, giving

zip (x:xs) (y:ys) = (x,y) : zip xs ys  -- (zip.1)

but in all other cases – that is when at least one of the lists is empty – the result is empty:

zip _ _ = []  -- (zip.2)

Note that we rely on the sequential nature of pattern matching here; we can give the patterns for (zip.2) explicitly if we wish, thus:

zip (x:xs) (y:ys) = (x,y) : zip xs ys
zip (x:xs) []     = []
zip []     zs     = []

and in the second definition we see the three separate cases given in three separate equations. Using the original definition, an example calculation gives

zip [1,5] ['c','d','e']
~> (1,'c') : zip [5] ['d','e']  -- by (zip.1)
~> (1,'c') : (5,'d') : zip [] ['e']  -- by (zip.1)
~> (1,'c') : (5,'d') : []  -- by (zip.2)
~> (1,'c') : [ (5,'d') ]  -- by defn of :
~> [ (1,'c') , (5,'d') ]  -- by defn of :

Note that we have used the fact that ‘:’ is right associative in writing this calculation.

2. The function take is used to take a given number of values from a list. For instance,

take 5  "Hot Rats" = "Hot R"
take 15 "Hot Rats" = "Hot Rats"

In this example we do recursion over an Int and a list

take :: Int -> [a] -> [a]

There are some special cases, when the Int is zero, or the list is empty

take 0 _        = []  -- (take.1)
take _ []       = []  -- (take.2)

What about the general case, when the list is non-empty and the Int greater than zero? We take n-1 elements from the tail of the list, and place the head on the front, thus:

take n (x:xs)
  | n>0         = x : take (n-1) xs  -- (take.3)

and in the other cases we give an error

take _ _        = error "PreludeList.take: negative argument"
   -- (take.4)

3. As a final example, we look at another method for sorting lists (of integers). The quicksort algorithm works by generating two recursive calls to sort. Suppose we are to sort the list

                        [4,2,7,1,4,5,6]

we can take off the head, 4, and then split the result [2,7,1,4,5,6] into two parts:

                        [2,1,4]           [7,5,6]

The first contains the elements no larger than 4, the second those exceeding 4. We sort these two, giving

                        [1,2,4]           [5,6,7]

and then we get an ordered version of the original list thus

                        [1,2,4] ++ [4] ++ [5,6,7]

We can write this now

qSort :: [Integer] -> [Integer]

qSort [] = []  -- (qSort.1)
qSort (x:xs)
  = qSort [ y | y<-xs , y<=x] ++ [x] ++ qSort [ y | y<-xs , y>x]
   -- (qSort.2)

It is striking to see how close this program is to our informal description of the algorithm, and this expressiveness is one of the important advantages of a functional approach.

We can see that this recursion will give an answer for every finite list, since in the recursive calls we apply qSort to two sublists of xs, which are necessarily smaller than (x:xs).

In Time and space behaviour we talk about the efficiency of various algorithms, and show that in general quicksort will be more efficient than insertion sort. In the following section we look at a larger example of definitions which use general forms of recursion.

Exercises

7.20 Using the definition of take as a guide, define the prelude functions drop and splitAt. Write QuickCheck tests for these re-defined functions.

7.21 What is the value of take (-3) [] according to the definition of take given earlier? How would you modify the definition so that there is an error reported whenever the Int argument is negative?

7.22 The zip function takes its two arguments separately: we can define this variant to take the arguments as a pair:

zip' :: ([a],[b]) -> [(a,b)]
zip' (xs,ys) = zip xs ys

There’s a built-in function, which has the reverse effect, taking a list of pairs into a pair of lists:

unzip :: [(a,b)] -> ([a],[b])

Write a property for zip’ and unzip that expresses that they are the ‘inverse’ of each other: does it matter the order in which they are applied? Try both ways, and see what happens when you apply quickCheck in each case.

7.23 How would you define a function zip3 which zips together three lists? Try to write a recursive definition and also one which uses zip instead; what are the advantages and disadvantages of the two different definitions?

7.24 How would you modify qSort to sort a list into descending order? How would you ensure that qSort removed duplicate elements?

7.25 One list is a sublist of another if the elements of the first occur in the second, in the same order. For instance, "ship" is a sublist of "Fish & Chips", but not of "hippies".

A list is a subsequence of another if it occurs as a sequence of elements next to each other. For example, "Chip" is a subsequence of "Fish & Chips", but not of "Chin up".

Define functions which decide whether one string is a sublist or a subsequence of another string.

7.26 Write QuickCheck properties which test your implementations of the tests for ‘sublist’ and ‘subsequence’.

Example: text processing

In word processing systems it is customary for lines to be filled and broken automatically, to enhance the appearance of the text. This book is no exception. Input of the form

The heat bloomed     in December
 as the   carnival  season
            kicked into  gear.
Nearly helpless with sun and glare, I avoided Rio's brilliant
sidewalks
  and glittering beaches,
panting in dark   corners
and waiting out the inverted southern summer.

would be transformed by filling to

The heat bloomed in December as the
carnival season kicked into gear.
Nearly helpless with sun and glare,
I avoided Rio's brilliant sidewalks
and glittering beaches, panting in
dark corners and waiting out the
inverted southern summer.

To align the right-hand margin, the text is justified by adding extra inter-word spaces on all lines but the last:

The heat bloomed in December as the
carnival  season  kicked into gear.
Nearly helpless with sun and glare,
I avoided Rio's brilliant sidewalks
and glittering beaches, panting  in
dark  corners  and  waiting out the
inverted southern summer.

An input file in Haskell can be treated as a string of characters, and so string-manipulating operations play an important role here. Also, since strings are lists, this example will exercise general list functions.

Overall strategy

In this section we give an example of bottom-up program development, thinking first about some of the components we will need to solve the problem, rather than decomposing the solution in a top-down way.

The first step in processing text will be to split an input string into words, discarding any white space. The words are then rearranged into lines of the required length. These lines can then have spaces added so as to justify the text. We therefore start by looking at how text is split into words.

Extracting words

We first ask, given a string of characters, how should we define a function to take the first word from the front of a string?

A word is any sequence which does not contain the whitespace characters space, tab and newline.

whitespace = ['\n','\t',' ']

In defining getWord we will use the standard function elem, which tests whether an object is an element of a list. For instance, elem ’a’ whitespace is False.

To guide the definition, consider two examples.

• getWord " boo" should be "" as the first character is whitespace;

• getWord "cat dog" is "cat". We get this by putting ’c’ on the front of "at", which is getWord "at dog".

The definition is therefore given by:

getWord :: String -> String
getWord []    = []   -- (getWord.1)
getWord (x:xs)
  | elem x whitespace   = []  -- (getWord.2)
  | otherwise           = x : getWord xs  -- (getWord.3)

Consider an example

getWord "cat dog"
~> 'c' : getWord "at dog"   -- by (getWord.3)
~> 'c' : 'a' : getWord "t dog"   -- by (getWord.3)
~> 'c' : 'a' : 't' : getWord " dog"   -- by (getWord.3)
~> 'c' : 'a' : 't' : []   -- by (getWord.2)
~> "cat"

In a similar way, the first word of a string can be dropped.

dropWord :: String -> String
dropWord []    = []
dropWord (x:xs)
  | elem x whitespace   = (x:xs)
  | otherwise           = dropWord xs

It is easy to check that dropWord "cat dog" = " dog". We aim to use the functions getWord and dropWord to split a string into its constituent words. Note that before we take a word from the string " dog", we should remove the whitespace character(s) from the front. The function dropSpace will do this.

dropSpace :: String -> String
dropSpace []    = []
dropSpace (x:xs)
  | elem x whitespace   = dropSpace xs
  | otherwise           = (x:xs)

How is a string st to be split into words? Assuming st has no whitespace at the start,

• the first word in the output will be given by applying getWord to st;

• the remainder will be given by splitting what remains after removing the first word and the space following it: dropSpace (dropWord st).

The top-level function splitWords calls split after removing any whitespace at the start of the string.

type Word = String

splitWords :: String -> [Word]
splitWords st = split (dropSpace st)

split :: String -> [Word]
split [] = []
split st
  = (getWord st) : split (dropSpace (dropWord st))

Consider a short example.

splitWords "  dog cat"
~> split "dog cat"
~> (getWord "dog cat")
         : split (dropSpace (dropWord "dog cat"))
~> "dog" : split (dropSpace " cat")
~> "dog" : split "cat"
~> "dog" : (getWord "cat")
         : split (dropSpace (dropWord "cat"))
~> "dog" : "cat" : split (dropSpace [])
~> "dog" : "cat" : split []
~> "dog" : "cat" : []
~> [ "dog" , "cat" ]

Splitting into lines

Now we have to consider how to break a list of words into lines. As before, we look to see how we can take the first line from a list of words.

type Line = [Word]
getLine :: Int -> [Word] -> Line

getLine takes two parameters. The first is the length of the line to be formed, and the second the list from which the words are taken. The definition uses length to give the length of a list. The definition will have three cases

• In the case that no words are available, the line formed is empty.

• If the first word available is w, then this goes on the line if there is room for it: its length, length w, has to be no greater than the length of the line, len.
  The remainder of the line is built from the words that remain by taking a line of length len-(length w+1).

• If the first word does not fit, the line has to be empty.

getLine len []     = []
getLine len (w:ws)
  | length w <= len     = w : restOfLine
  | otherwise           = []
    where
    newlen      = len - (length w + 1)
    restOfLine  = getLine newlen ws

Why is the rest of the line of length len-(length w+1)? Space must be allocated for the word w and the inter-word space needed to separate it from the word which follows. How does the function work in an example?

getLine 20 ["Mary","Poppins","looks","like",...
~> "Mary" : getLine 15 ["Poppins","looks","like",...
~> "Mary" : "Poppins" : getLine 7 ["looks","like",...
~> "Mary" : "Poppins" : "looks" : getLine 1 ["like",...
~> "Mary" : "Poppins" : "looks" : []
~> [ "Mary" , "Poppins" , "looks" ]

A companion function,

dropLine :: Int -> [Word] -> Line

removes a line from the front of a list of words, just as dropWord is a companion to getWord. The function to split a list of words into lines of length at most (the constant value) lineLen can now be defined:

splitLines :: [Word] -> [Line]
splitLines [] = []
splitLines ws
  = getLine lineLen ws
         : splitLines (dropLine lineLen ws)

This concludes the definition of the function splitLines, which gives filled lines from a list of words.

Conclusion

To fill a text string into lines, we write

fill :: String -> [Line]
fill = splitLines . splitWords

To make the result into a single string we need to write a function

joinLines :: [Line] -> String

This is left as an exercise, as is justification of lines.

Exercises

7.27 Define the function dropLine specified in the text.

7.28 Give a definition of the function

joinLine :: Line -> String

which turns a line into printable form. For example,

joinLine [ "dog" , "cat" ] = "dog cat"

7.29 Using the function joinLine, or otherwise, define the function

joinLines :: [Line] -> String

which joins together the lines, separated by newlines.

7.30 In this case study we have defined separate ‘take’ and ‘drop’ functions for words and lines. Redesign the program so that it uses ‘split’ functions – like the prelude function splitAt – instead.

7.31 [Harder] Modify the function joinLine so that it justifies the line to length lineLen by adding the appropriate number of spaces between the words.

7.32 Design a function

wc :: String -> (Int,Int,Int)

which when given a text string returns the number of characters, words and lines in the string. The end of a line in the string is signalled by the newline character, ’\n’. Define a similar function

wcFormat :: String -> (Int,Int,Int)

which returns the same statistics for the text after it has been filled.

7.33 Define a function

isPalin :: String -> Bool

which tests whether a string is a palindrome – that is whether it is the same read both backwards and forwards. An example is the string

Madam I'm Adam

Note that punctuation and white space are ignored in the test, and that no distinction is made between capital and small letters. You might first like to develop a test which simply tests whether the string is exactly the same backwards and forwards, and only afterwards take account of punctuation and capital letters.

7.34 [Harder] Design a function

subst :: String -> String -> String -> String

so that

subst oldSub newSub st

is the result of replacing the first occurrence in st of the substring oldSub by the substring newSub. For instance,

subst "much  " "tall " "How much  is that?"
  = "How tall is that?"

If the substring oldSub does not occur in st, the result should be st.

7.35 [Harder] Define QuickCheck properties which test the behaviour of your subst function, defined in the previous question.

Summary

This chapter has shown how functions can be defined by recursion over lists, and completes our account of the different ways that list-processing functions can be defined. In the chapter we have looked at examples of the design principles which we first discussed in Designing and writing programs, including ‘divide and conquer’ and general pieces of advice about designing recursive programs. The text processing case study provides a broadly bottom-up approach to defining a library of functions.
