Abstract data types

The Haskell module system allows definitions of functions and other objects to be hidden when one module is imported into another. Those definitions hidden are only of use in defining the exported functions, and hiding them makes clearer the exact interface between the two modules: only those features of the module which are needed will be visible.

This chapter shows that information hiding is equally applicable for types, giving what are known as abstract data types, or ADTs. We explain the abstract data type mechanism here, as well as providing a number of examples of ADTs, including queues, sets, relations and the fundamental types belonging to a simulation case study.

Type representations

We begin our discussion with a scenario which is intended to show both the purpose and the operation of the abstract data type mechanism.

Suppose we are to build a calculator for numerical expressions, like those given by the Expr type of Recursive algebraic types, but with variables included. The calculator is to provide the facility to set the values of variables, as well as for variables to form parts of expressions.

As a part of our system, we need to be able to model the current values of the variables, which we might call the store of the calculator. How can this be done? A number of models present themselves, including:

  • a list of integer/variable pairs: [(Integer,Var)]; and

  • a function from variables to integers: (Var -> Integer).

Both models allow us to look up and update the values of variables, as well as set a starting value for the store. These operations have types as follows.

initial :: Store
value   :: Store -> Var -> Integer    -- (StoreSig)
update  :: Store -> Var -> Integer -> Store

but each model allows more than that: we can, for instance, reverse a list, or compose a function with others. In using the type Store we intend only to use the three operations given, but it is always possible to use the model in unintended ways.

How can we give a better model of a store? The answer is to define a type which only has the operations initial, value and update, so that we cannot abuse the representation. We therefore hide the information about how the type is actually implemented, and only allow the operations (StoreSig) to manipulate objects of the type.

When we provide a limited interface to a type by means of a specified set of operations we call the type an abstract data type (or ADT). Since the ‘concrete’ type itself is no longer accessible and we may only access the type by means of the operations provided, these operations give a more ‘abstract’ view of the type.

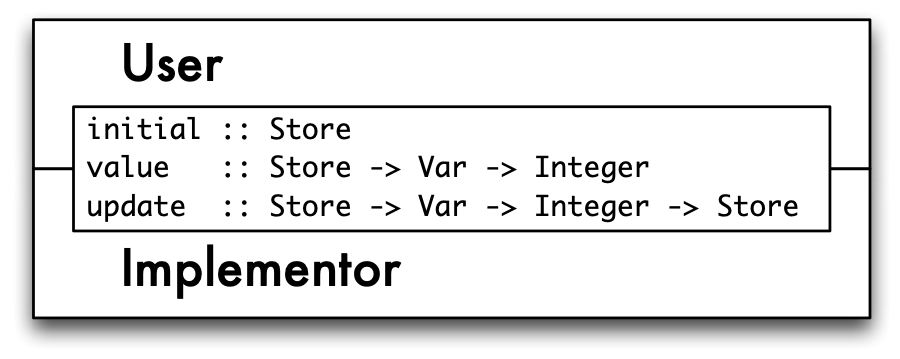

The Store abstract data type.

The Store abstract data type. illustrates the situation, and suggests that as well as giving a natural representation of the type of stores, there are two other benefits of type abstraction.

  • The type declarations in (StoreSig) form a clearly defined interface, which is called the signature of the ADT, between the user of the type and its implementer. The only information that they have to agree on is the signature; once this is agreed, they can work independently. This is therefore another way of breaking a complex problem into simpler parts; another aspect of the ‘divide and conquer’ method.

  • We can modify the implementation of the Store without having any effect on the user. Contrast this with the situation where the implementation is visible to the user. In particular, if the implementation is an algebraic type then any change in the implementation will mean that all definitions that use pattern matching will have to be changed. These will include not just those in the signature, but also any user-defined functions which use pattern matching.

We shall see both aspects illustrated in the sections to come; first we look at the details of the Haskell abstract data type mechanism.

The Haskell abstract data type mechanism

When we introduced the Haskell module system in Case study: Huffman codes we saw that there were two ways in which we could export a data type, called Data say. If we include Data(..) in the export list of the module, the type is exported with its constructors; if we include Data then the constructors are not exported, and so we can only operate over the type using the other operations of the signature.

In the case of the Store type, our module header would be

module Store ( Store, initial, value, update ) where

which shows that we can access the type only through the three functions mentioned. In this book we will adopt the convention that we will also include as comments in the module header the types of the exported functions, giving in the case of Store the following header.

module Store
   ( Store,
     initial,     -- Store
     value,       -- Store -> Var -> Integer
     update       -- Store -> Var -> Integer -> Store
    ) where

Now, the module must contain a definition of the Store type and the functions over it.

If the implementation type was a data type, then this would complete the realization of the abstract data type. However, in our running example of stores, we suggested earlier that we would use a list of pairs, [ (Integer,Var) ], to model the type, and so we will have to define a new data type, called Store

data Store = Store [ (Integer,Var) ]

which has a single constructor which we also call Store. This is the function which converts a list into an element of the Store type; we can think of it as ‘wrapping up’ a list to make it into a Store.

We now have to define the functions initial, value and update over the Store type. One approach is to define the analogous functions over [(Integer,Var)] and then to adapt those. We can say

init :: [(Integer,Var)]
init = []

val :: [(Integer,Var)] -> Var -> Integer
val [] v        = 0
val ((n,w):sto) v
  | v==w        = n
  | otherwise   = val sto v

upd :: [(Integer,Var)] -> Var -> Integer -> [(Integer,Var)]
upd sto v n   = (n,v):sto

The initial store, init, is represented by an empty list; the value of v is looked up by finding the first pair (n,v) in the list, and the store is updated by adding a new (Integer,Var) at the front of the list.

These functions then have to be converted to work over the type Store, so that arguments and results are of the form Store xs with xs::[(Integer,Var)]. The definitions become

initial :: Store
initial = Store []

value  :: Store -> Var -> Integer
value (Store []) v  = 0
value (Store ((n,w):sto)) v
  | v==w            = n
  | otherwise       = value (Store sto) v

update  :: Store -> Var -> Integer -> Store
update (Store sto) v n = Store ((n,v):sto)

where we can see that the pattern of the definitions is similar, except that we have to ‘unwrap’ arguments of the form (Store sto) on the left-hand side, and ‘wrap up’ results using Store on the right-hand side. We look at a general mechanism for ‘wrapping up’ functions in the example of the Set ADT in Sets.

What happens if we try to break the abstraction barrier and deal with a Store as having the form (Store xs)? On typing

initial == Store []

in a module importing Store we get the type error message

Not in scope: data constructor `Store'

The fact that initial is indeed implemented as Store [] is irrelevant, since the implementation is not in scope outside the Store module.

The newtype construction

In fact in this case rather than using a data type we will define

newtype Store = Store [ (Integer,Var) ]

which has the same effect as declaring a data type with one unary constructor but which is implemented in a more efficient fashion.

Naming newtypes

Another possible way of implementing the type would be to say

newtype Store = Sto [ (Integer,Var) ]

using different names for the type and its constructor. Although this makes it clear whether we are talking about the type or the constructor, we prefer to use a single name within this newtype, as otherwise we need to choose two different – but related – names.

Moreover, in practice, when we use Store we will always be able to tell which use – type name or constructor – is meant. Finally, this convention is in widespread use in the Haskell developer community, and so it’s helpful to be aware of the fact.

Type classes: showing values and equality

We can declare types as belonging to particular type classes such as Show and Eq, and this applies equally well to abstract data types. In the case of Store we can say

instance Eq Store where
  (Store sto1) == (Store sto2) = (sto1 == sto2)

instance Show Store where
  showsPrec n (Store sto) = showsPrec n sto

Note, however, that once declared, these instances cannot be hidden, so that even though they are not named in the export list, the functions over Store which are defined by means of these instance declarations will be available whenever the module Store is imported. Of course, we can choose not to declare these instances, and so not to provide an equality or a show function over Stores.

Stores as functions

A different implementation of Store is given by the type of functions from variables to integers.

newtype Store = Store (Var -> Integer)

initial :: Store
initial = Store (\v -> 0)

value :: Store -> Var -> Integer
value (Store sto) v = sto v

update  :: Store -> Var -> Integer -> Store
update (Store sto) v n
  = Store (\w -> if v==w then n else sto w)

Under this implementation,

  • the initial store maps every variable to 0;

  • to look up a value of a variable v the store function sto is applied to v, and

  • in the case of an update, a function returned is identical to sto except on the variable whose value is changed.

Testing ADTs

Suppose that we have implemented a store as a list of integer-variable pairs. We can inspect the result of updating a store, which will be a new list, and check that it has the properties that we would expect. For example, we might take the difference of the lists before and after the update.

If we implement queues as an ADT, we can’t look directly at the underlying implementation; instead we have to write properties using the interface functions, here initial, value and update. We can start by saying what happens if we look up a value in the initial store:

prop_Initial :: Char -> Bool

prop_Initial ch =
   value initial ch == 0

What can we say about the effect of an update on a store? First, if perform an update for the variable ch and then look up the value, we would expect to see the new value:

prop_Update1 :: Char -> Integer -> Store -> Bool

prop_Update1 ch int st =
    value (update st ch int) ch == int

Finally, what if we look up the value of another variable after this update? Its value should be the same as it was before:

prop_Update2 :: Char -> Char -> Integer -> Store -> Bool

prop_Update2 ch1 ch2 int st =
    value (update st ch2 int) ch1 == value st ch1

If we perform a QuickCheck on these properties – the appropriate QuickCheck magic is given in the module StoreTest and the properties in QCStoreTest – the first two pass every time, but the third one sometimes fails: that is when ch1 and ch2 are equal!

Modifying the test to take this into account, we get a test that always passes:

prop_Update2 :: Char -> Char -> Integer -> Store -> Bool

prop_Update2 ch1 ch2 int st =
    value (update st ch2 int) ch1 == value st ch1 || ch1==ch2

Because the tests are written in terms of the interface only, if we were to change the implementation then the tests could still be applied, assuming that we have the right QuickCheck definitions in place.

Exercises

16.1 Give an implementation of Store using lists whose entries are ordered according to the variable names. Discuss why this might be preferable to the original list implementation, and also its disadvantages, if any.

16.2 For the implementation of Store as a list type [(Integer,Var)], give a definition of equality which equates any two stores which give the same values to each variable. Can this operation be defined for the second implementation? If not, give a modification of the implementation which allows it to be defined.

16.3 In this question you should use the type Maybe a. Suppose it is an error to look up the value of a variable which does not have a value in the given store. Explain how you would modify both the signature of Store and the two implementations.

16.4 Rather than giving an error when looking up a variable which does not have a value in the particular store, extend the signature to provide a test of whether a variable has a value in a given store, and explain how would modify the two implementations to define the test.

16.5 Suppose you are to implement a fourth operation over Store

setAll :: Integer -> Store

so that setAll n is the store where every variable has the value n. Can you do this for both the example implementations? Show how if you can, and explain why, if not.

16.6 Design an ADT for the library database, first examined in Data types, tuples and lists.

Queues

A queue is a ‘first in, first out’ structure. If first Flo and then Eddie joins an initially empty queue, the first person to leave will be Flo. As an abstract data type, we expect to be able to add items and remove items as well as there being an empty queue.

module Queue
  ( Queue ,
    emptyQ ,       --  Queue a
    isEmptyQ ,     --  Queue a -> Bool
    addQ ,         --  a -> Queue a -> Queue a
    remQ           --  Queue a -> (  a , Queue a )
   ) where

The function remQ returns a pair – the item removed together with the part of the queue that remains – if there are any items in the queue. If not, the standard function error is called.

A list can be used to model a queue: we add to the end of the list, and remove from the front, giving

newtype Queue a = Queue [a]

emptyQ :: Queue a
emptyQ = Queue []

isEmptyQ :: Queue a -> Bool
isEmptyQ (Queue []) = True
isEmptyQ _          = False

addQ   :: a -> Queue a -> Queue a
addQ x (Queue xs) = Queue (xs++[x])

remQ   :: Queue a -> (  a , Queue a )
remQ q@(Queue xs)
  | not (isEmptyQ q)   = (head xs , Queue (tail xs))
  | otherwise          = error "remQ"

As (@) patterns

The definition of remQ uses an aspect of pattern matching which we have not seen so far. We use the pattern q@(Queue xs), where we can read ‘@’ as ‘as’, to match the input. The variable q matches the whole input, while it is also matched against Queue xs, so that xs gives us access to the list from which it is built. This means that we can refer directly to the whole input and to its components in the definition. Without this, the alternative would be

remQ (Queue xs)
  | not (isEmptyQ (Queue xs)) = (head xs , Queue (tail xs))
  | otherwise                 = error "remQ"

in which we have to rebuild the original queue from xs.

In implementing queues, rather than adding elements at the end of the list, we could choose to add them at the beginning of the list. This leaves emptyQ and isEmptyQ unchanged, and gives

addQ x (Queue xs) = Queue (x:xs)

remQ q@(Queue xs)
  | not (isEmptyQ q)   = (last xs , Queue (init xs))
  | otherwise          = error "remQ"

where the built-in functions last and init take the last element and the remainder of a list.

Although we have not said exactly how to calculate the cost of evaluation (a topic we take up in Time and space behaviour), we can see that in each implementation one of the operations is ‘cheap’ and the other is ‘expensive’. The ‘cheap’ functions – remQ in the first implementation and addQ in the second – can be evaluated in one step, while in both cases the ‘expensive’ function will have to run along a list xs one step per element, and so will be costly if the list is long.

Is there any way of making both operations ‘cheap’? The idea is to make the queue out of two lists, so that both adding and removing an element can take place at the head of a list. The process is illustrated in A two-list queue in action.,

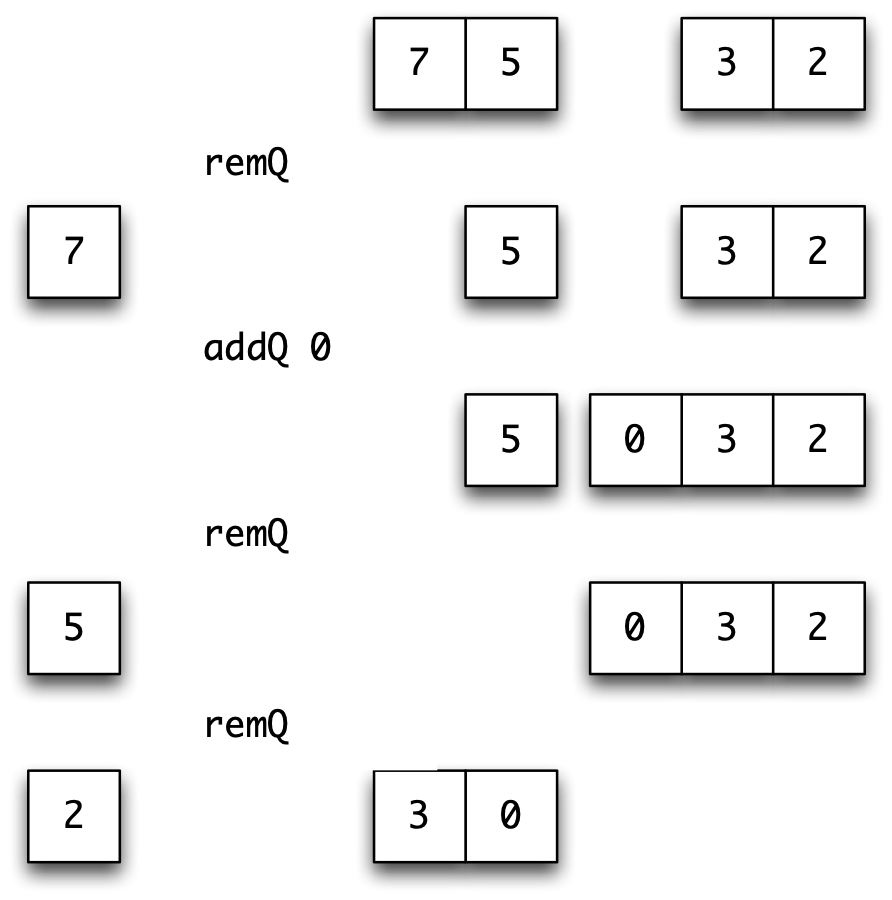

A two-list queue in action.

which represents a number of queues. Initially the queue containing the elements 7, 5, 2 and 3 is shown: here 7 is the oldest element in the queue and 3 the most recent addition. Subsequently we see the effect of removing an element, adding the element 0, and removing two further elements. In each case the queue is represented by two lists, each being shown with its head at the left-hand side.

The function remQ removes elements from the head of the left-hand list, and addQ adds elements to the head of the right. This works until the left-hand list is empty, when the elements of the right-hand queue have to be transferred to the left, reversing their order.

This case in which we have to transfer elements is expensive, as we have to run along a list to reverse it, but we would not in general expect to perform this every time we remove an element from the queue. The Haskell implementation follows now.

data Queue a = Queue [a] [a]

emptyQ :: Queue a
emptyQ = Queue [] []

isEmptyQ :: Queue a -> Bool
isEmptyQ (Queue [] []) = True
isEmptyQ _             = False

addQ   :: a -> Queue a -> Queue a
addQ x (Queue xs ys) = Queue xs (x:ys)

remQ   :: Queue a -> (  a , Queue a )
remQ (Queue (x:xs) ys)    = (x , Queue xs ys)
remQ (Queue [] ys@(z:zs)) = remQ (Queue (reverse ys) [])
remQ (Queue [] [])        = error "remQ"

As we commented for the Store types, the behaviour of this implementation will be indistinguishable from the first two, as far as the operations of the abstract data type are concerned. On the other hand, the implementation will be substantially more efficient than the single list implementations, as we explained above. A thorough examination of recent work on the efficient implementation of data structures in functional languages can be found in .

Using newtype

Why didn’t we use a newtype in the definition of Queue? The reason is that a newtype must have a single argument, and Queue has two; we could pair the arguments, and then use a newtype. We leave this as an exercise for the reader.

Exercises

16.7 Give calculations of

"abcde" ++ "f"
init "abcdef"
last "abcdef"

where

init x = take (length x-1) x
last x = x !! (length x-1)

16.8 Explain the behaviour of the three queue models if you are asked to perform the following sequence of queue operations: add 2, add 1, remove item, add 3, remove item, add 1, add 4, remove item, remove item.

16.9 Define QuickCheck properties which will test the queue implementations given here. We will show how to define the appropriate generators needed to perform the tests in Domain-Specific Languages.

16.10 A double-ended queue, or deque, allows elements to be added or removed from either end of the structure. Give a signature for the ADT Deque a, and give two different implementations of the deque type.

16.11 A unique queue can contain only one occurrence of each entry (the one to arrive earliest). Give a signature for the ADT of these queues, and an implementation of the ADT.

16.12 Each element of a priority queue has a numerical priority. When an element is removed, it will be of the highest priority in the queue. If there is more than one of these, the earliest to arrive is chosen. Give a signature and implementation of the ADT of priority queues.

16.13 [Harder] Examine how priority queues could be used to implement the Huffman coding system in Case study: Huffman codes.

Design

This section examines the design of Haskell abstract data types, and how the presence of this mechanism affects design in general.

General principles

In building a system, the choice of types is fundamental, and affects the subsequent design and implementation profoundly. If we use abstract data types at an early stage we hope to find ‘natural’ representations of the types occurring in the problem. Designing the abstract data types is a three-stage process.

  • First we need to identify and name the types in the system.

  • Next, we should give an informal description of what is expected from each type.

  • Using this description we can then move to writing the signature of each abstract data type.

How do we decide what should go in the signature? This is the $64,000 question, of course, but there are some general questions we can ask of any abstract data type signature.

  • Can we create objects of the type? For instance, in the Queue a type, we have the object emptyQ, and in a type of sets, we might give a function taking an element to the ‘singleton’ set containing that element alone. If there are no such objects or functions, something is wrong!

  • Can we check what sort of object we have? In a tree ADT we might want to check whether we have a leaf or a node, for instance.

  • Can we extract the components of objects, if we so require? Can we take the head of a Queue a, say?

  • Can we transform objects: can we reverse a list, perhaps, or add an item to a queue?

  • Can we combine objects? We might want to be able to join together two trees, for example.

  • Can we collapse objects? Can we take the sum of a numerical list, or find the size of an object, say?

Not all these questions are appropriate in every case, but the majority of operations we perform on types fall into one of these categories. All the operations in the following signature for binary trees can be so classified, for instance.

module Tree
  (Tree,
   nil,           -- Tree a
   isNil,         -- Tree a -> Bool
   isNode,        -- Tree a -> Bool
   leftSub,       -- Tree a -> Tree a
   rightSub,      -- Tree a -> Tree a
   treeVal,       -- Tree a -> a
   insTree,       -- Ord a => a -> Tree a -> Tree a
   delete,        -- Ord a => a -> Tree a -> Tree a
   minTree        -- Ord a => Tree a -> Maybe a
  ) where

Other functions might be included in the signature; in the case of Tree a we might want to include the size function. This function can be defined using the other operations.

size :: Tree a -> Integer
size t
  | isNil t     = 0
  | otherwise   = 1 + size (leftSub t) + size (rightSub t)

This definition of size is independent of the implementation, and so would not have to be reimplemented if the implementation type for Tree a changed. This is a good reason for leaving size out of the signature, and this is a check we can make for any signature: are all the functions in the signature needed? We come back to this point, and the tree type, later in the chapter. Now we look at a larger-scale example.

Exercises

16.14 Are all the operations in the Tree a signature necessary? Identify those which can be implemented using the other operations of the signature.

16.15 Design a signature for an abstract type of library databases, as first introduced in Data types, tuples and lists.

16.16 Design a signature for an abstract type of indexes, as examined in Example: creating an index.

Simulation

We first introduced the simulation example in Design with algebraic data types, where we designed the algebraic types Inmess and Outmess. Let us suppose, for ease of exposition, that the system time is measured in minutes.

The Inmess No signals no arrival, while Yes 34 12 signals the arrival of a customer at the 34th minute, who will need 12 minutes to be served.

The Outmess Discharge 34 27 12 signals that the person arriving at time 34 waited 27 minutes before receiving their 12 minutes of service.

Our aim in this section is to design the ADTs for a simple simulation of queueing. We start by looking at a single queue. Working through the stages, we will call the type QueueState, and it can be described thus.

There are two main operations on a queue. The first is to add a new item, an Inmess, to the queue. The second is to process the queue by a one-minute step; the effect of this is to give one minute’s further processing to the item at the head of the queue (if there is such a thing). Two outcomes are possible: the item might have its processing completed, in which case an Outmess is generated, or further processing may be needed.

Other items we need are an empty queue, an indication of the length of a queue and a test of whether a queue is empty.

This description leads directly to a signature declaration

module QueueState
  ( QueueState ,
    addMessage,      -- Inmess -> QueueState -> QueueState
    queueStep,       -- QueueState -> ( QueueState , [Outmess] )
    queueStart,      -- QueueState
    queueLength,     -- QueueState -> Int
    queueEmpty       -- QueueState -> Bool
    ) where

The queueStep function returns a pair: the QueueState after a step of processing, and a list of Outmess. A list is used, rather than a single Outmess, so that in the case of no output an empty list can be returned.

The QueueState type allows us to model a situation in which all customers are served by a single processor (or bank clerk). How can we model the case where there is more than one queue? We call this a server and it is to be modelled by the ServerState ADT.

A server consists of a collection of queues, which can be identified by the integers 0, 1 and so on. It is assumed that the system receives one Inmess each minute: at most one person arrives every minute, in other words.

There are three principal operations on a server. First, we should be able to add an Inmess to one of the queues. Second, a processing step of the server is given by processing each of the constituent queues by one step: this can generate a list of Outmess, as each queue can generate such a message. Finally, a step of the simulation combines a server step with allocation of the Inmess to the shortest queue in the server.

Three other operations are necessary. We have a starting server, consisting of the appropriate number of empty queues, and we should be able to identify the number of queues in a server, as well as the shortest queue it contains.

As a signature, we have

module ServerState
  ( ServerState ,
    addToQueue,     -- Int -> Inmess -> ServerState -> ServerState
    serverStep,     -- ServerState -> ( ServerState , [Outmess] )
    simulationStep, -- ServerState -> Inmess -> ( ServerState ,
                                                  [Outmess] )
    serverStart,    -- ServerState
    serverSize,     -- ServerState -> Int
    shortestQueue   -- ServerState -> Int
  ) where

In the next section we explore how to implement these two abstract data types. It is important to realize that users of the ADTs can begin to do their programming now: all the information that they need to know is contained in the signature of the abstract data type.=-1

Exercises

16.17 Are there redundant operations in the signatures of the ADTs QueueState and ServerState?

16.18 Design a signature for round-robin simulation, in which allocation of the first item is to queue 0, the second to queue 1, and so on, starting again at 0 after the final queue has had an element assigned to it.

Implementing the simulation

This section gives an implementation of the ADTs for a queue and a server. The QueueState is implemented from scratch, while the ServerState implementation builds on the QueueState ADT. This means that the two implementations are independent; modifying the implementation of QueueState has no effect on the implementation of ServerState.

The queue

In the previous section, we designed the interfaces for the ADT; how do we proceed with implementation? First we ought to look again at the description of the QueueState type. What information does this imply the type should contain?

  • There has to be a queue of Inmess to be processed. This can be represented by a list, and we can take the item at the head of the list as the item currently being processed.

  • We need to keep a record of the processing time given to the head item, up to the particular time represented by the state.

  • In an Outmess, we need to give the waiting time for the particular item being processed. We know the time of arrival and the time needed for processing – if we also know the current time, we can calculate the waiting time from these three numbers.

It therefore seems sensible to define

data QueueState = QS Time Service [Inmess]
                  deriving (Eq, Show)

where the first field gives the current time, the second the service time so far for the item currently being processed, and the third the queue itself. Now we look at the operations one by one. To add a message, it is put at the end of the list of messages.

addMessage  :: Inmess -> QueueState -> QueueState

addMessage im (QS time serv ml) = QS time serv (ml++[im])

The most complicated definition is of queueStep. As was explained informally, there are two principal cases, when there is an item being processed.

queueStep   :: QueueState -> ( QueueState , [Outmess] )

queueStep (QS time servSoFar (Yes arr serv : inRest))
  | servSoFar < serv
    = (QS (time+1) (servSoFar+1) (Yes arr serv : inRest) , [])
  | otherwise
    = (QS (time+1) 0 inRest , [Discharge arr (time-serv-arr) serv])

In the first case, when the service time so far (servSoFar) is smaller than is required (serv), processing is not complete. We therefore add one to the time, and the service so far, and produce no output message.

If processing is complete – which is the otherwise case – the new state of the queue is QS (time+1) 0 inRest. In this state the time is advanced by one, processing time is set to zero and the head item in the list is removed. An output message is also produced in which the waiting time is given by subtracting the service and arrival times from the current time.

If there is nothing to process, then we simply have to advance the current time by one, and produce no output.

queueStep (QS time serv []) = (QS (time+1) serv [] , [])

Note that the case of an input message No is not handled here since these messages are filtered out by the server; this is discussed below.

The three other functions are given by

queueStart  :: QueueState
queueStart  =  QS 0 0 []

queueLength :: QueueState -> Int
queueLength (QS _ _ q) = length q

queueEmpty  :: QueueState -> Bool
queueEmpty (QS _ _ q)  = (q==[])

and this completes the implementation.

Obviously there are different possible implementations. We might choose to take the item being processed and hold it separately from the queue, or to use an ADT for the queue part, rather than a ‘concrete’ list.

The server

The server consists of a collection of queues, accessed by integers from 0; we choose to use a list of queues.

newtype ServerState = SS [QueueState]
                         deriving (Eq, Show)

Note that the implementation of this ADT builds on another ADT; this is not unusual. Now we take the functions in turn.

Adding an element to a queue uses the function addMessage from the QueueState abstract type.

addToQueue :: Int -> Inmess -> ServerState -> ServerState

addToQueue n im (SS st)
  = SS (take n st ++ [newQueueState] ++ drop (n+1) st)
    where
    newQueueState = addMessage im (st!!n)

A step of the server is given by making a step in each of the constituent queues, and concatenating together the output messages they produce.

serverStep :: ServerState -> ( ServerState , [Outmess] )

serverStep (SS [])
  = (SS [],[])
serverStep (SS (q:qs))
  =  (SS (q':qs') , mess++messes)
    where
    (q' , mess)       = queueStep  q
    (SS qs' , messes) = serverStep (SS qs)

In making a simulation step, we perform a server step, and then add the incoming message, if it indicates an arrival, to the shortest queue.

simulationStep
  :: ServerState -> Inmess -> ( ServerState , [Outmess] )

simulationStep servSt im
  = (addNewObject im servSt1 , outmess)
    where
    (servSt1 , outmess) = serverStep servSt

Adding the message to the shortest queue is done by addNewObject, which is not in the signature. The reason for this is that it can be defined using the operations addToQueue and shortestQueue.

addNewObject :: Inmess -> ServerState -> ServerState

addNewObject No servSt = servSt

addNewObject (Yes arr wait) servSt
  = addToQueue (shortestQueue servSt) (Yes arr wait) servSt

It is in this function that the input messages No are not passed to the queues, as was mentioned above.

The other three functions of the signature are standard.

serverStart :: ServerState
serverStart = SS (replicate numQueues queueStart)

where numQueues is a constant to be defined, and the standard function replicate returns a list of n copies of x when applied thus: replicate n x.

serverSize :: ServerState -> Int
serverSize (SS xs) = length xs

In finding the shortest queue, we use the queueLength function from the QueueState type.

shortestQueue :: ServerState -> Int

shortestQueue (SS [q]) = 0
shortestQueue (SS (q:qs))
  | (queueLength (qs!!short) <= queueLength q)   = short+1
  | otherwise                                    = 0
      where
      short = shortestQueue (SS qs)

This concludes the implementation of the two simulation ADTs. The example is intended to show the merit of designing in stages. First we gave an informal description of the operations on the types, then a description of their signature, and finally an implementation. Dividing the problem up in this way makes each stage easier to solve.

The example also shows that types can be implemented independently: since ServerState uses only the abstract data type operations over QueueState, we can reimplement QueueState without affecting the server state at all.

Exercises

16.19 Give calculations of the expressions

queueStep (QS 12 3 [Yes 8 4])
queueStep (QS 13 4 [Yes 8 4])
queueStep (QS 14 0 [])

16.20 If we let

serverSt1 = SS [ (QS 13 4 [Yes 8 4]) , (QS 13 3 [Yes 8 4]) ]

then give calculations of

serverStep serverSt1
simulationStep (Yes 13 10) serverSt1

16.21 Define QuickCheck properties which will test the simulation system. We will show how to define the appropriate generators needed to perform the tests in Domain-Specific Languages.

16.22 Explain why we cannot use the function type (Int -> QueueState) as the representation type of ServerState. Design an extension of this type which will represent the server state, and implement the functions of the signature over this type.

16.23 Given the implementations of the ADTs from this section, is your answer to the question of whether there are redundant operations in the signatures of queues and servers any different?

16.24 If you have not done so already, design a signature for round-robin simulation, in which allocation of the first item is to queue 0, the second to queue 1, and so on.

16.25 Give an implementation of the round-robin simulation which uses the ServerState ADT.

16.26 Give a different implementation of the round-robin simulation which modifies the implementation of the type ServerState itself.

Search trees

A binary search tree is an object of type Tree a whose elements are ordered. A general binary tree is implemented by the algebraic data type Tree:

data Tree a = Nil | Node a (Tree a) (Tree a)

When is a tree ordered? The tree (Node val t1 t2) is ordered if

  • all values in t1 are smaller than val,

  • all values in t2 are larger than val, and

  • the trees t1 and t2 are themselves ordered;

and the tree Nil is ordered.

Search trees are used to represent sets of elements, for instance. How can we create a type of search trees? The concrete (algebraic) type Tree a will not serve, as it contains elements like Node 2 (Node 3 Nil Nil) Nil, which are not ordered.

The answer is to build elements of the type Tree a using only operations which create or preserve order. We ensure that only these ‘approved’ operations are used by making the type an abstract data type.

The abstract data type for search trees

We discussed the signature of the abstract data type earlier, in Design, but we repeat it here.

module Tree
  (Tree,
   nil,           -- Tree a
   isNil,         -- Tree a -> Bool
   isNode,        -- Tree a -> Bool
   leftSub,       -- Tree a -> Tree a
   rightSub,      -- Tree a -> Tree a
   treeVal,       -- Tree a -> a
   insTree,       -- Ord a => a -> Tree a -> Tree a
   delete,        -- Ord a => a -> Tree a -> Tree a
   minTree        -- Ord a => Tree a -> Maybe a
  ) where

As we have said, the implementation type is

data Tree a = Nil | Node a (Tree a) (Tree a)

and the standard operations to discriminate between different sorts of tree and to extract components are defined by

nil :: Tree a
nil = Nil

isNil :: Tree a -> Bool
isNil Nil = True
isNil _   = False

isNode :: Tree a -> Bool
isNode Nil = False
isNode _   = True

leftSub :: Tree a -> Tree a
leftSub Nil            = error "leftSub"
leftSub (Node _ t1 _)  = t1

rightSub :: Tree a -> Tree a
rightSub Nil            = error "rightSub"
rightSub (Node _ _ t2)  = t2

treeVal  :: Tree a -> a
treeVal Nil            = error "treeVal"
treeVal (Node v _ _)   = v
Insertion into a search tree

insTree :: Ord a => a -> Tree a -> Tree a

insTree val Nil = (Node val Nil Nil)

insTree val (Node v t1 t2)
  | v==val      = Node v t1 t2
  | val > v     = Node v t1 (insTree val t2)
  | val < v     = Node v (insTree val t1) t2

delete :: Ord a => a -> Tree a -> Tree a

delete val (Node v t1 t2)
  | val < v     = Node v (delete val t1) t2
  | val > v     = Node v t1 (delete val t2)
  | isNil t2    = t1
  | isNil t1    = t2
  | otherwise   = join t1 t2

minTree :: Ord a => Tree a -> Maybe a

minTree t
  | isNil t     = Nothing
  | isNil t1    = Just v
  | otherwise   = minTree t1
      where
      t1 = leftSub t
      v  = treeVal t

--      join is an auxiliary function, used in delete;
--      it is not exported.

join :: Ord a => Tree a -> Tree a -> Tree a

join t1 t2
  = Node mini t1 newt
    where
    (Just mini) = minTree t2
    newt        = delete mini t2
Operations over search trees.

Operations over search trees. contains the definitions of the insertion, deletion and join functions. The function join is used to join two trees with the property that all elements in the left are smaller than all in the right; that will be the case for the call in delete where it is used. It is not exported, as it can break the ordered property of search trees if it is applied to an arbitrary pair of search trees.

Deletion from a search tree

Note that the types of insTree, delete, minTree and join contain the context Ord a. Recall from Overloading, type classes and type checking that this constraint means that these functions can only be used over types which carry an ordering operation, <=. It is easy to see from the definitions of these functions that they do indeed use the ordering, and given the definition of search trees it is unsurprising that we use an ordering in these operations. Now we look at the definitions in Operations over search trees. in turn.

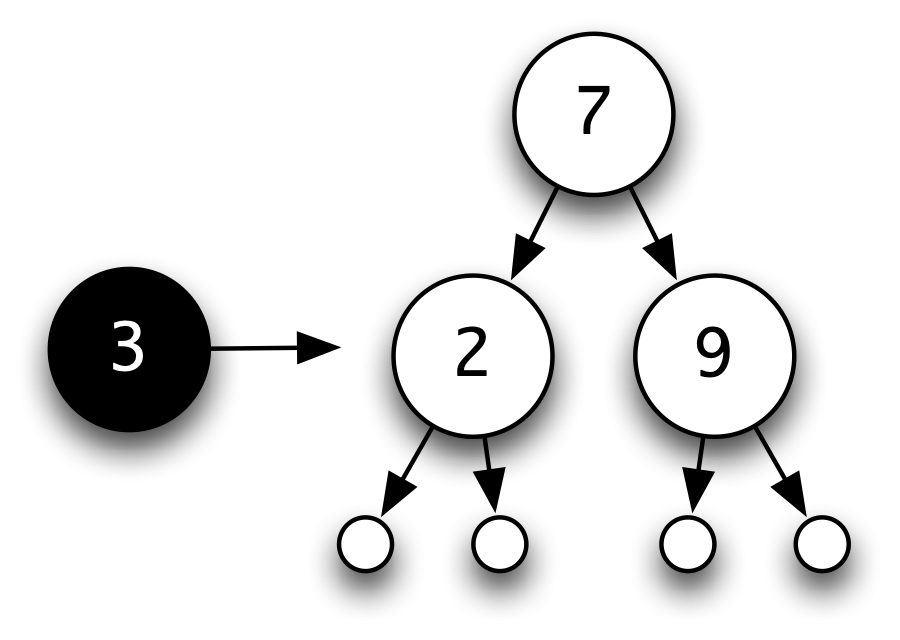

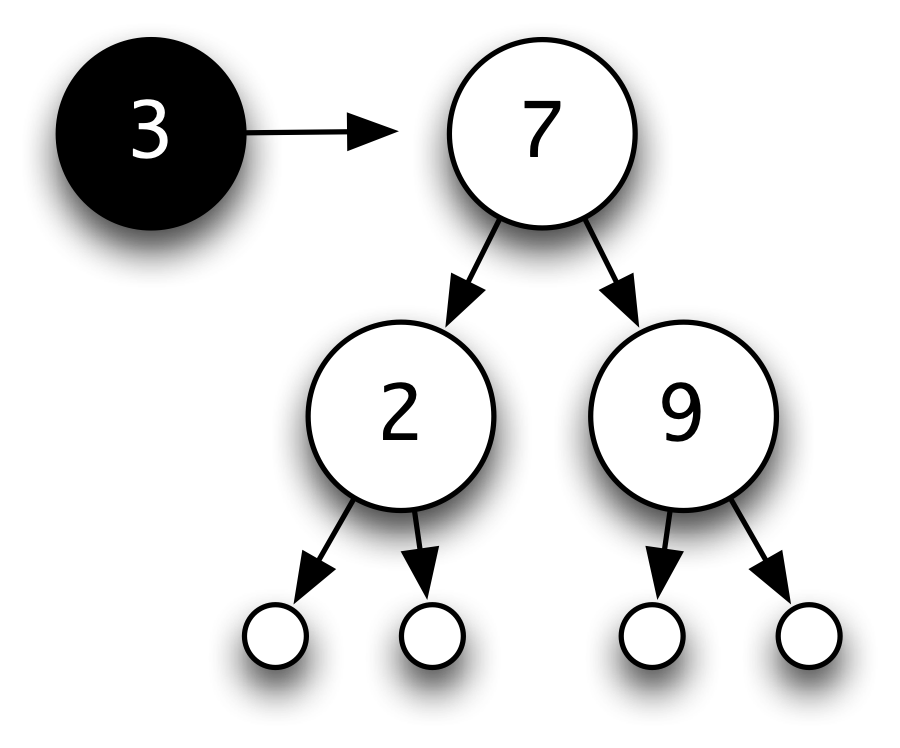

Inserting an element which is already present has no effect, while inserting an element smaller (larger) than the value at the root causes it to be inserted in the left (right) subtree. Insertion into a search tree shows 3 being inserted in the tree

(Node 7 (Node 2 Nil Nil) (Node 9 Nil Nil))

to give

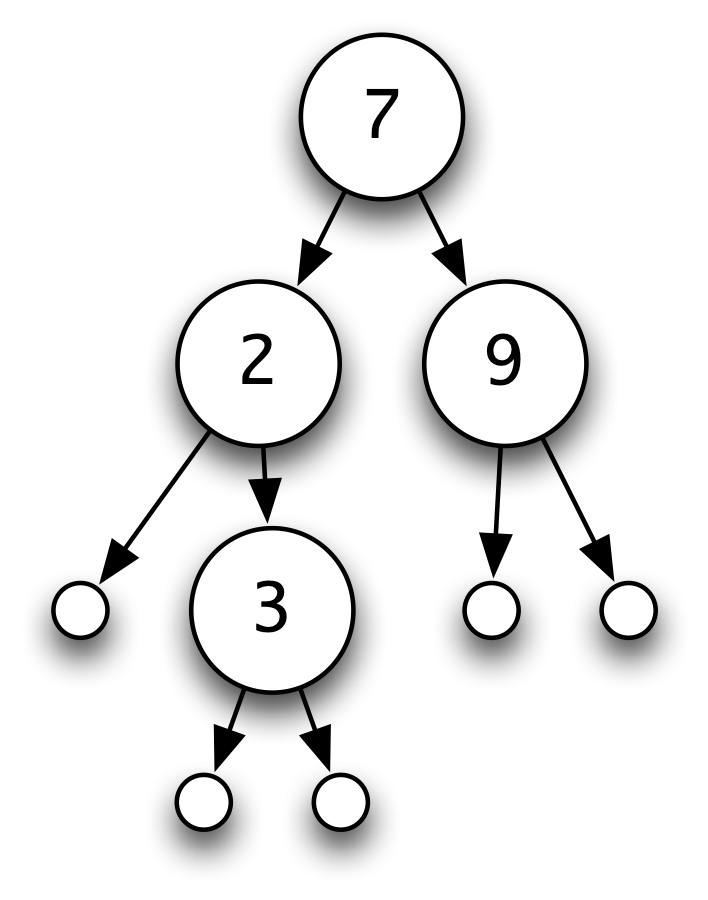

(Node 7 (Node 2 Nil (Node 3 Nil Nil)) (Node 9 Nil Nil))

Deletion is straightforward when the value is smaller (larger) than the value at the root node: the deletion is made in the left (right) sub-tree. If the value to be deleted lies at the root, deletion is again simple if either sub-tree is Nil: the other sub-tree is returned. The problem comes when both sub-trees are non-Nil. In this case, the two sub-trees have to be joined together, keeping the ordering intact.

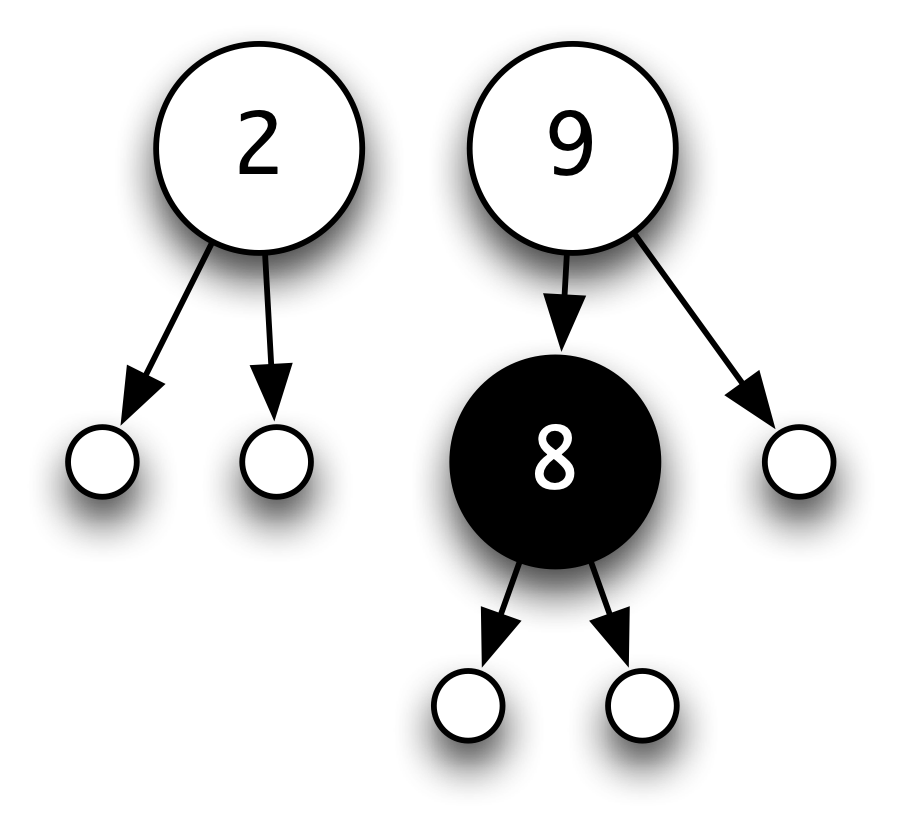

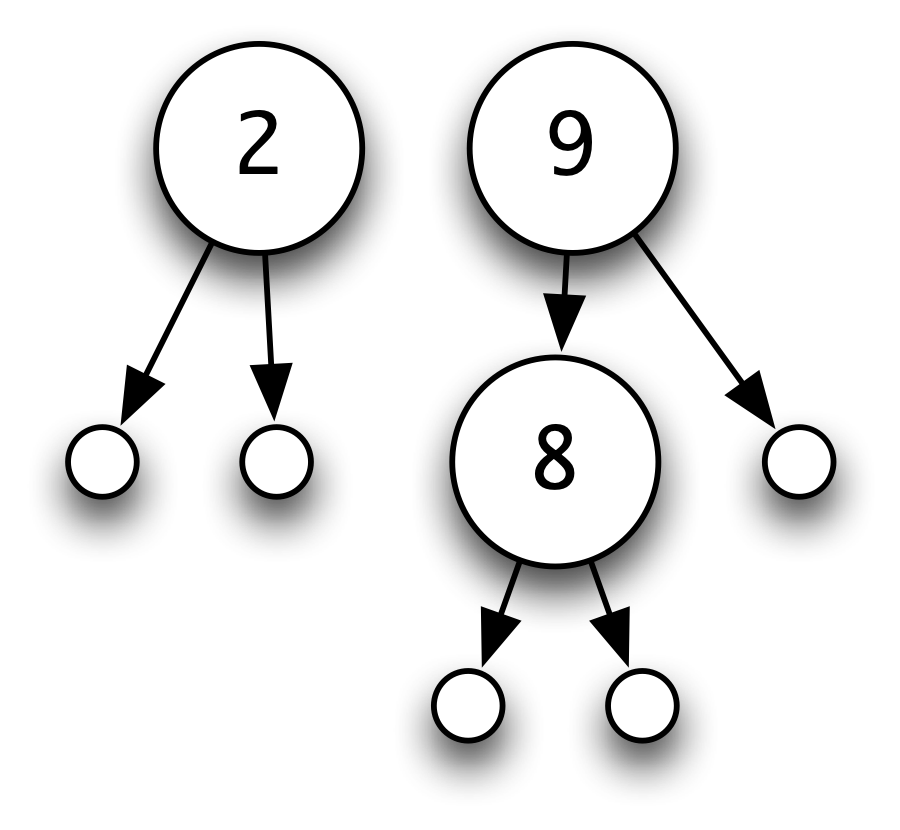

To join two non-Nil trees t1 and t2, where it is assumed that t1 is smaller than t2, we pick the minimum element, mini, of t2 to be the value at the root. The left sub-tree is t1, and the right is given by deleting mini from t2. Deletion from a search tree shows the deletion of 7 from

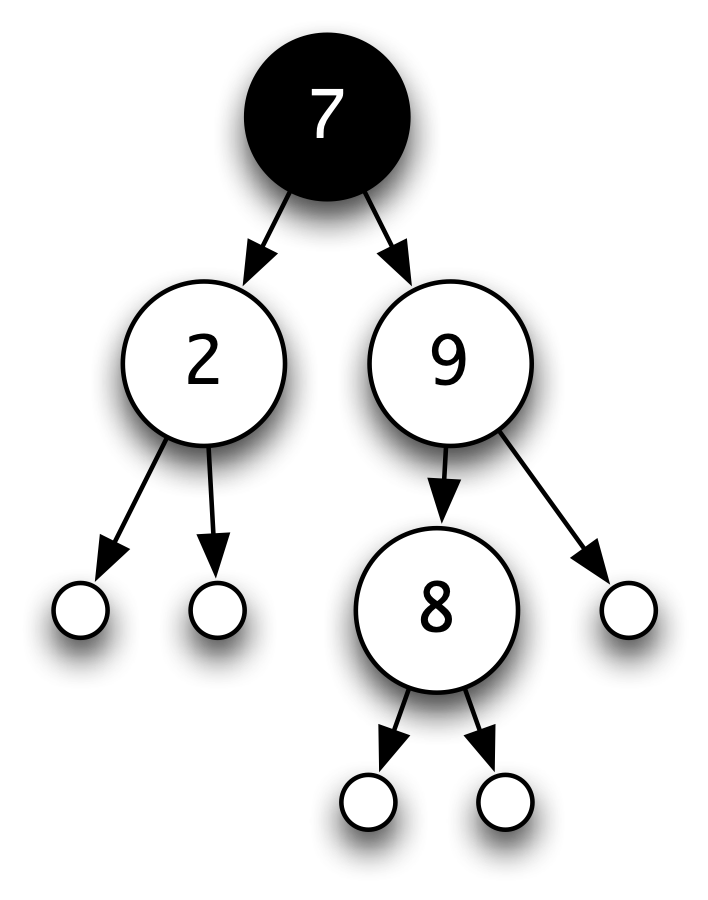

(Node 7 (Node 2 Nil Nil) (Node 9 (Node 8 Nil Nil) Nil))

to give

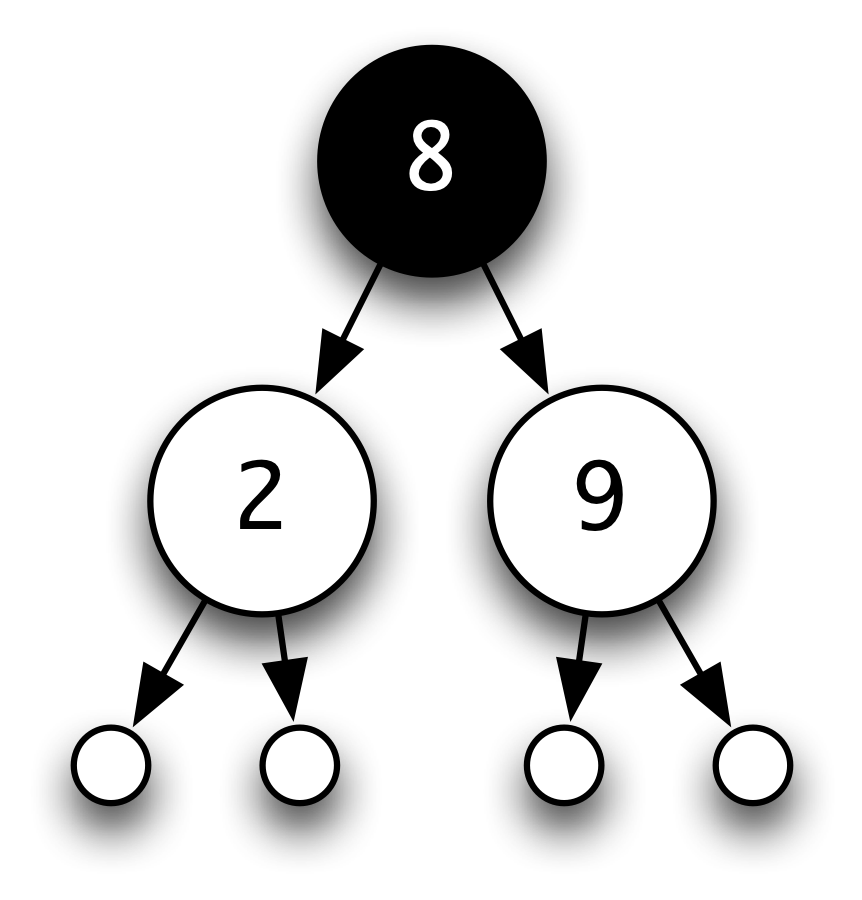

(Node 8 (Node 2 Nil Nil) (Node 9 Nil Nil))

The minTree function returns a value of type Maybe a, since a Nil tree has no minimum. The Just constructor therefore has to be removed in the where clause of join.

Modifying the implementation

Given a search tree, we might be asked for its nth element,

indexT :: Int -> Tree a -> a

indexT n t   -- (indexT)
  | isNil t     = error "indexT"
  | n < st1     = indexT n t1
  | n == st1    = v
  | otherwise   = indexT (n-st1-1) t2
    where
    v   = treeVal t
    t1  = leftSub t
    t2  = rightSub t
    st1 = size t1

where the size is given by

size :: Tree a -> Int
size t
  | isNil t     = 0
  | otherwise   = 1 + size (leftSub t) + size (rightSub t)

If we are often asked to index elements of a tree, we will repeatedly have to find the size of search trees, and this will require computation.

We can think of making the size operation more efficient by changing the implementation of Tree a, so that an extra field is given in an Stree to hold the size of the tree:

data Stree a = Nil | Node a Int (Stree a) (Stree a)

What will have to be changed?

  • We will have to redefine all the operations in the signature, since they access the implementation type, and this has changed. For example, the insertion function has the new definition

    insTree val Nil = (Node val 1 Nil Nil)

insTree val (Node v n t1 t2)
  | v==val      = Node v n t1 t2
  | val > v     = Node v (1 + size t1 + size nt2) t1 nt2
  | val < v     = Node v (1 + size nt1 + size t2) nt1 t2
    where
    nt1 = insTree val t1
    nt2 = insTree val t2

  • We will have to add size to the signature, and redefine it thus:

    size Nil            = 0
size (Node _ n _ _) = n

    to use the value held in the tree.

Nothing else needs to be changed, however. In particular, the definition of indexT given in (indexT) is unchanged. This is a powerful argument in favour of using abstract data type definitions, and against using pattern matching. If (indexT) had used a pattern match over its argument, then it would have to be rewritten if the underlying type changed. This shows that ADTs make programs more easily modifiable, as we argued at the start of the chapter.

In conclusion, it should be said that these search trees form a model for a collection of types, as they can be modified to carry different sorts of information. For, example, we could carry a count of the number of times an element occurs. This would be increased when an element is inserted, and reduced by one on deletion. Indeed any type of additional information can be held at the nodes – the insertion, deletion and other operations use the ordering on the elements to structure the tree irrespective of whatever else is held there. An example might be to store indexing information together with a word, for instance. This would form the basis for a reimplementation of the indexing system of Section Example: creating an index. Exercises

16.27 Explain how you would test the implementations of the functions over search trees. You might need to augment the signature of the type with a function to print a tree.

16.28 Define QuickCheck properties which will test the implementation of search trees. We will show how to define the appropriate generators needed to perform the tests in Domain-Specific Languages.

16.29 Define the functions

successor :: Ord a => a -> Tree a -> Maybe a
closest   :: Int -> Tree Int -> Int

The successor of v in a tree t is the smallest value in t larger than v, while the closest value to v in a numerical tree t is a value in t which has the smallest difference from v. You can assume that closest is always called on a non-Nil tree, so always returns an answer.

16.30 Redefine the functions of the Tree a signature over the Stree implementation type.

16.31 To speed up the calculation of maxTree and other functions, you could imagine storing the maximum and minimum of the sub-tree at each node. Redefine the functions of the signature to manipulate these maxima and minima, and redefine the functions maxTree, minTree and successor to make use of this extra information stored in the trees.

16.32 You are asked to implement search trees with a count of the number of times an element occurs. How would this affect the signature of the type? How would you implement the operations? How much of the previously written implementation could be re-used?

16.33 Using a modified version of search trees instead of lists, reimplement the indexing software of Example: creating an index.

16.34 Design a polymorphic abstract data type

Tree a b c

so that entries at each node contain an item of type a, on which the tree is ordered, and an item of type b, which might be something like the count, or a list of index entries.

On inserting an element, information of type c is given (a single index entry in that example); this information has to be combined with the information already present. The method of combination can be a functional parameter. There also needs to be a function to describe the way in which information is transformed at deletion.

As a test of your type, you should be able to implement the count trees and the index trees as instances.

Sets

A finite set is a collection of elements of a particular type, which is both like and unlike a list. Lists are, of course, familiar, and examples include

[Joe,Sue,Ben]     [Ben,Sue,Joe]
[Joe,Sue,Sue,Ben] [Joe,Sue,Ben,Sue]

Each of these lists is different – not only do the elements of a list matter, but also the order in which they occur and the number of times that each element occurs (its multiplicity) are significant.

In many situations, order and multiplicity are irrelevant. If we want to talk about the collection of people going to a birthday party, we just want the names; a person is either there or not and so multiplicity is not important and the order in which we might list them is also of no interest. In other words, all we want to know is the set of people coming. In the example above, this is the set consisting of Joe, Sue and Ben.

Like lists, queues, trees and so on, sets can be combined in many different ways: the operations which combine sets form the signature of the abstract data type. The search trees we saw earlier provide operations which concentrate on elements of a single ordered set: ‘what is the successor of element e in set s?’ for instance.

In this section we focus on the combining operations for sets. The signature for sets is as follows. We explain the purpose of the operations at the same time as giving their implementation.

module Set
 ( Set ,
  empty              , -- Set a
  sing               , -- a -> Set a
  memSet             , -- Ord a => Set a -> a -> Bool
  union,inter,diff   , -- Ord a => Set a -> Set a -> Set a
  eqSet              , -- Eq a  => Set a -> Set a -> Bool
  subSet             , -- Ord a => Set a -> Set a -> Bool
  makeSet            , -- Ord a => [a] -> Set a
  mapSet             , -- Ord b => (a -> b) -> Set a -> Set b
  filterSet          , -- (a->Bool) -> Set a -> Set a
  foldSet            , -- (a -> a -> a) -> a -> Set a -> a
  showSet            , -- (a -> String) -> Set a -> String
  card                 -- Set a -> Int
 ) where

There are numerous possible signatures for sets, some of which assume certain properties of the element type. To test for elementhood, we need the elements to belong to a type in the Eq class; here we assume that the elements are in fact from an ordered type, which enlarges the class of operations over Set a. This gives the contexts Ord a and Ord b, which are seen in some of the types in the signature above.

Implementing the type and operations

We choose to represent a set as an ordered list of elements without repetitions:

newtype Set a = Set [a]

The principal definitions over Set a are given in Operations over the set abstract data type, part 1. and Operations over the set abstract data type, part 2.. At the start of the file we see that we import the library List, but as there is a definition of union in there we have to hide this on import, thus,

import List hiding ( union )

Also at the start of the file we give the instance declarations for the type. It is important to list these at the start because there is no explicit record of them in the module header.

We now run through the individual functions as they are implemented in Operations over the set abstract data type, part 1. and Operations over the set abstract data type, part 2.. In our descriptions we use curly brackets ‘{’, ‘}’, to represent sets in examples – this is emphatically not part of Haskell notation.

Empty set and singleton.

The empty set {} is represented by an empty list, and the singleton set {x}, consisting of the single element x, by a one-element list.

import List hiding ( union )

instance Eq a => Eq (Set a) where
  (==) = eqSet
instance Ord a => Ord (Set a) where
  (<=) = leqSet

newtype Set a = Set [a]

empty :: Set a
empty  = Set []

sing :: a -> Set a
sing x = Set [x]

memSet :: Ord a => Set a -> a -> Bool
memSet (Set []) y     = False
memSet (Set (x:xs)) y
  | x<y         = memSet (Set xs) y  -- (memSet.1)
  | x==y        = True  -- (memSet.2)
  | otherwise   = False  -- (memSet.3)

union :: Ord a => Set a -> Set a -> Set a
union (Set xs) (Set ys) = Set (uni xs ys)

uni :: Ord a => [a] -> [a] -> [a]
uni [] ys       = ys
uni xs []       = xs
uni (x:xs) (y:ys)
  | x<y         = x : uni xs (y:ys)
  | x==y        = x : uni xs ys
  | otherwise   = y : uni (x:xs) ys

inter :: Ord a => Set a -> Set a -> Set a
inter (Set xs) (Set ys) = Set (int xs ys)

int :: Ord a => [a] -> [a] -> [a]
int [] ys       = []
int xs []       = []
int (x:xs) (y:ys)
  | x<y         = int xs (y:ys)
  | x==y        = x : int xs ys
  | otherwise   = int (x:xs) ys
Operations over the set abstract data type, part 1.

subSet :: Ord a => Set a -> Set a -> Bool
subSet (Set xs) (Set ys) = subS xs ys

subS :: Ord a => [a] -> [a] -> Bool
subS [] ys      = True
subS xs []      = False
subS (x:xs) (y:ys)
  | x<y         = False
  | x==y        = subS xs ys
  | x>y         = subS (x:xs) ys

eqSet :: Eq a => Set a -> Set a -> Bool
eqSet (Set xs) (Set ys) = (xs == ys)

leqSet :: Ord a => Set a -> Set a -> Bool
leqSet (Set xs) (Set ys) = (xs <= ys)

makeSet :: Ord a => [a] -> Set a
makeSet = Set . remDups . sort
          where
          remDups []     = []
          remDups [x]    = [x]
          remDups (x:y:xs)
            | x < y      = x : remDups (y:xs)
            | otherwise  = remDups (y:xs)

mapSet :: Ord b => (a -> b) -> Set a -> Set b
mapSet f (Set xs) = makeSet (map f xs)

filterSet :: (a -> Bool) -> Set a -> Set a
filterSet p (Set xs) = Set (filter p xs)

foldSet :: (a -> a -> a) -> a -> Set a -> a
foldSet f x (Set xs) = (foldr f x xs)

showSet :: (a->String) -> Set a -> String
showSet f (Set xs) = concat (map ((++"\n") . f) xs)

card :: Set a -> Int
card (Set xs) = length xs
Operations over the set abstract data type, part 2.

Membership.

To test for membership of a set, we define memSet. It is important to see that we exploit the ordering in giving this definition. Consider the three cases where the list is non-empty. In (memSet.1), the head element of the set, x, is smaller than the element y which we seek, and so we should check recursively for the presence of y in the tail xs. In case (memSet.2) we have found the element, while in case (memSet.3) the head element is larger than y; since the list is ordered, all elements will be larger than y, so it cannot be a member of the list. This definition would not work if we chose to use arbitrary lists to represent sets.

Union, intersection, difference.

The functions union,inter,diff give the union, intersection and difference of two sets. The union consists of the elements occurring in either set (or both), the intersection of those elements in both sets and the difference of those elements in the first but not the second set – we leave the definition of diff as an exercise for the reader. For example,

union {Joe,Sue} {Sue,Ben} =  {Joe,Sue,Ben}
inter {Joe,Sue} {Sue,Ben} =  {Sue}
diff  {Joe,Sue} {Sue,Ben} =  {Joe}

In making these definitions we again exploit the fact that the two arguments are ordered. We also define the functions by ‘wrapping up’ a function over the ‘bare’ list type. For instance, in defining union we first define

uni :: Ord a => [a] -> [a] -> [a]

which works directly over ordered lists, and then make a version which works over Set,

union :: Ord a => Set a -> Set a -> Set a
union (Set xs) (Set ys) = Set (uni xs ys)

Recall that the brackets ‘{’, ‘}’ are not a part of Haskell; we can see them as shorthand for Haskell expressions as follows.

{e1, ... ,en} = makeSet [e1, ... ,en]
Subset and equality tests.

To test whether the first argument is a subset of the second, we use subSet; x is a subset of y if every element of x is an element of y.

Two sets are going to be equal if their representations as ordered lists are the same – hence the definition of eqSet as list equality; note that we require equality on a to define equality on Set a. The function eqSet is exported as part of the signature, but also we declare an instance of the Eq class, binding == to eqSet thus

instance Eq a => Eq (Set a) where
  (==) = eqSet

The ADT equality will not in general be the equality on the underlying type: if we were to choose arbitrary lists to model sets, the equality test would be more complex, since [1,2] and [2,1,2,2] would represent the same set.

Ordering.

We also export list ordering as an ordering over Set.

instance Ord a => Ord (Set a) where
  (<=) = leqSet

The subset ordering is not bound to <= since it is customary for the <= in Ord to be a total order, that is for all elements x and y, either x<=y or y<=x will hold. The subset ordering is not a total order, while the lexicographic ordering over (ordered) lists is total. Some examples for comparison are given in the exercises.

Construction.

To form a set from an arbitrary list, makeSet, the list is sorted, and then duplicate elements are removed, before it is wrapped with Set. The definition of sort is imported from the List library.

Higher-order functions.

mapSet, filterSet and foldSet behave like map, filter and foldr except that they operate over sets. The latter two are essentially given by filter and foldr; in mapSet duplicates have to be removed after mapping.

Print.

showSet f (Set xs) gives a printable version of a set, one item per line, using the function f to give a printable version of each element.

showSet f (Set xs) = concat (map ((++"\n") . f) xs)
Cardinality.

The cardinality of a set is the number of its members. The function card gives this, as it returns the length of the list.

In the next section we build a library of functions to work with relations and graphs which uses the Set library as its basis.

Exercises

16.35 Compare how the following pairs of sets are related by the orderings <= and subSet.

{3}          {3,4}
{2,3}        {3,4}
{2,9}        {2,7,9}

16.36 Define the function diff so that diff s1 s2 consists of the elements of s1 which do not belong to s2.

16.37 Define the function

symmDiff :: Ord a => Set a -> Set a -> Set a

which gives the symmetric difference of two sets. This consists of the elements which lie in one of the sets but not the other, so that

symmDiff {Joe,Sue} {Sue,Ben} =  {Joe,Ben}

Can you use the function diff in your definition?

16.38 How can you define the function

powerSet :: Ord a => Set a -> Set (Set a)

which returns the set of all subsets of a set defined? Can you give a definition which uses only the operations of the abstract data type and not the concrete implementation?

16.39 How are the functions

setUnion :: Ord a => Set (Set a) -> Set a
setInter :: Ord a => Set (Set a) -> Set a

which return the union and intersection of a set of sets defined using the operations of the abstract data type?

16.40 Can infinite sets (of numbers, for instance) be adequately represented by ordered lists? Can you tell if two infinite lists are equal, for instance?

16.41 The abstract data type Set a can be represented in a number of different ways. Alternatives include arbitrary lists (rather than ordered lists without repetitions) and Boolean valued functions, that is elements of the type a -> Bool. Give implementations of the type using these two representations.

16.42 Give an implementation of the Set abstract data type using search trees.

16.43 Give an implementation of the search tree abstract data type using ordered lists. Compare the behaviour of the two implementations.

16.44 Give a set of QuickCheck properties for the Set type. These should reflect the mathematical properties of sets. Hint: you could begin by thinking about corresponding properties of lists, and about which of these you would expect to hold for sets and which would not.

Relations and graphs

We now use the Set abstract data type as a means of implementing relations and, taking an alternative view of the same objects, graphs.

Relations

A binary relation relates together certain elements of a set. A family relationship can be summarized by saying that the isParent relation holds between Ben and Sue, between Ben and Leo and between Sue and Joe. In other words, it relates the pairs (Ben,Sue), (Ben,Leo) and (Sue,Joe), and so we can think of this particular relation as the set

isParent = {(Ben,Sue) , (Ben,Leo) , (Sue,Joe)}

In general we say

type Relation a = Set (a,a)

This definition means that all the set operations are available on relations. We can test whether a relation holds of two elements using memSet; the union of two relations like isParent and isSibling gives the relationship of being either a parent or a sibling, and so on.

We look at two examples of family relations, based on a relation isParent which we assume is given to us. We first set ourselves the task of defining the function addChildren which adds to a set of people all their children; we then aim to define the isAncestor relation. The full code for the functions discussed here is given in Functions over the type of relations, Relation a..

image :: Ord a => Relation a -> a -> Set a
image rel val = mapSet snd (filterSet ((==val).fst) rel)

setImage :: Ord a => Relation a -> Set a -> Set a
setImage rel = unionSet . mapSet (image rel)

unionSet :: Ord a => Set (Set a) -> Set a
unionSet = foldSet union empty

addImage :: Ord a => Relation a -> Set a -> Set a
addImage rel st = st `union` setImage rel st

addChildren :: Set People -> Set People
addChildren = addImage isParent



compose :: Ord a => Relation a -> Relation a -> Relation a
compose rel1 rel2
  =  mapSet outer (filterSet equals (setProduct rel1 rel2))
     where
     equals ((a,b),(c,d)) = (b==c)
     outer  ((a,b),(c,d)) = (a,d)

setProduct :: (Ord a,Ord b) => Set a -> Set b -> Set (a,b)
setProduct st1 st2 = unionSet (mapSet (adjoin st1) st2)

adjoin :: (Ord a,Ord b) => Set a -> b -> Set (a,b)
adjoin st el = mapSet (addEl el) st
               where
               addEl el el' = (el',el)

tClosure :: Ord a => Relation a -> Relation a
tClosure rel = limit addGen rel
               where
               addGen rel' = rel' `union` (rel' `compose` rel)

limit:: Eq a => (a -> a) -> a -> a
limit f x
  | x == next     = x
  | otherwise     = limit f next
    where
    next = f x
Functions over the type of relations, `Relation a`.

Defining addChildren

The image of an element.

Working bottom-up, we first ask how we find all elements related to a given element: who are all Ben’s children, for instance? We need to find all pairs beginning with Ben, and then return their second halves. The function to perform this is called image and the set of Ben’s children will be

image isParent Ben = {Sue,Leo}
The image of a set of elements.

Now, how can we find all the elements related to a set of elements? We find the image of each element separately and then take the union of these sets. The union of a set of sets is given by folding the binary union operation into the set.

unionSet {s1, ... ,sn}
  = s1 ∪ ... ∪ sn
  = s1 `union` ... `union` sn

Now, how do we add all the children to a set of people? We find the image of the set under isParent, and combine it with the set itself. This is given by the function addChildren.

Defining isAncestor

The second task we set ourselves was to find the isAncestor relation. The general problem is to find the transitive closure of a relation, the function tClosure of Functions over the type of relations, Relation a.. We do this by closing up the relation, so we add grandparenthood, great-grandparenthood and so forth to the relation until nothing further is added. We explain transitive closure formally later in this section.

The ‘grandparent’ relation: relational composition.

How do we define the relation isGrandparent? We match together pairs like

(Ben,Sue)    (Sue,Joe)

and see that this gives that Ben is a grandparent of Joe. We call this the relational composition of isParent with itself. In general,

isGrandparent
  = isParent `compose` isParent
  = {(Ben,Joe)}
Set product.

In defining compose we have used the setProduct function to give the product of two sets. This is formed by pairing every element of the first set with every element of the second. For instance,

setProduct {Ben,Suzie} {Sue,Joe}
  = { (Ben,Sue) , (Ben,Joe) , (Suzie,Sue) , (Suzie,Joe) }

setProduct uses the function adjoin to pair each element of a set with a given element. For instance,

adjoin {Ben,Sue} Joe = { (Ben,Joe) , (Sue,Joe) }
Transitive closure and limits.

A relation rel is transitive if for all (a,b) and (b,c) in rel, (a,c) is in rel. The transitive closure of a relation rel is the smallest relation extending rel which is transitive. We compute the transitive closure of rel, tClosure rel, by repeatedly adding one more ‘generation’ of rel, using compose, until nothing more is added.

To do this, we make use of the limit function, a polymorphic higher-order function of general use. limit f x gives the limit of the sequence

x , f x , f (f x) , f (f (f x)) , ...

The limit is the value to which the sequence settles down if it exists. It is found by taking the first element in the sequence whose successor is equal to the element itself.

Example.

As an example, take Ben to be Sue’s father, Sue to be Joe’s mother, who himself has no children. Now define

addChildren :: Set Person -> Set Person

to add to a set the children of all members of the set, so that for instance

addChildren {Joe,Ben} = {Joe,Sue,Ben}

Now we can give an example calculation of a limit of a function over sets.

limit addChildren {Ben}
  ??  {Ben}=={Ben,Sue} ~> False
~> limit addChildren {Ben,Sue}
  ??  {Ben,Sue}=={Ben,Joe,Sue} ~> False
~> limit addChildren {Ben,Joe,Sue}
  ??  {Ben,Joe,Sue}=={Ben,Joe,Sue} ~> True
~> {Ben,Joe,Sue}

Context simplification

The functions of Functions over the type of relations, Relation a. give an interesting example of context simplification for type classes. The adjoin function requires that the types a and b carry an ordering. Haskell contains the instance declaration

instance (Ord a, Ord b) => Ord (a,b) ....  -- (pair)

and so this is sufficient to ensure Ord (a,b), which is required for the application of mapSet within adjoin.

Similarly, in defining compose we require an ordering on the type ((a,a),(a,a)); again, knowing Ord a is sufficient to give this, since (pair) can be used to derive the ordering on ((a,a),(a,a)).

Graphs

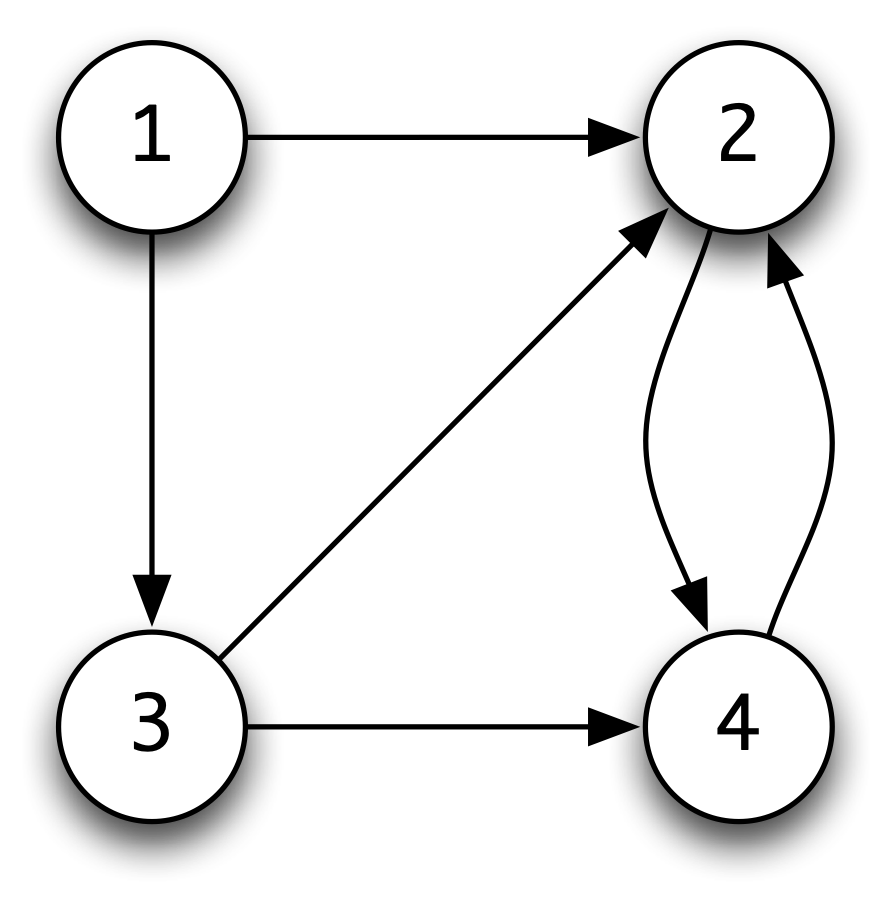

Another way of seeing a relation is as a directed graph. For example, the relation

graph1 = { (1,2) , (1,3) , (3,2) , (3,4) , (4,2) , (2,4) }

can be pictured like this

where we draw an arrow joining a to b if the pair (a,b) is in the relation. What then does the transitive closure represent? Two points a and b are related by tClosure graph1 if there is a path from a to b through the graph. For example, the pair (1,4) is in the closure, since a path leads from 1 to 3 then to 2 and finally to 4, while the pair (2,1) is not in the closure, since no path leads from 2 to 1 through the graph.

Strongly connected components

A problem occurring in many different application areas, including networks and compilers, is to find the strongly connected components of a graph. Every graph can have its nodes split into sets or components with the property that every node in a component is connected by a path to all other nodes in the same component. The components of graph1 are {1}, {3} and {2,4}.

We solve the problem in two stages:

  • we first form the relation which links points in the same component, then

  • we form the components (or equivalence classes) generated by this relation.

There is a path from x to y and vice versa if both (x,y) and (y,x) are in the closure, so we define

connect :: Ord a => Relation a -> Relation a
connect rel = clos `inter` solc
              where
              clos = tClosure rel
              solc = inverse clos

inverse :: Ord a => Relation a -> Relation a
inverse = mapSet swap
          where
          swap (x,y) = (y,x)

Now, how do we form the components given by the relation graph1? We start with the set

{{1},{2},{3},{4}}

and repeatedly add the images under the relation to each of the classes, until a fixed point is reached. In general this gives

classes :: Ord a => Relation a -> Set (Set a)
classes rel
  = limit (addImages rel) start
    where
    start = mapSet sing (eles rel)

where the auxiliary functions used are

eles :: Ord a => Relation a -> Set a
eles rel = mapSet fst rel `union` mapSet snd rel

addImages :: Ord a => Relation a -> Set (Set a) -> Set (Set a)
addImages rel = mapSet (addImage rel)

Searching in graphs

Many algorithms require us to search through the nodes of a graph: we might want to find a shortest path from one point to another, or to count the number of paths between two points.

Two general patterns of search are depth-first and breadth-first. In a depth-first search, we explore all elements below a given child before moving to the next child; a breadth-first search examines all the children before examining the grandchildren, and so on. In the case of searching below node 1 in graph1, the sequence [1,2,4,3] is depth-first (4 is visited before 3), while [1,2,3,4] is breadth-first. These examples show that we can characterize the searches as functions

breadthFirst :: Ord a => Relation a -> a -> [a]
depthFirst   :: Ord a => Relation a -> a -> [a]

with breadthFirst graph1 1 = [1,2,3,4], for instance. The use of a list in these functions is crucial – we are not simply interested in finding the nodes below a node (tClosure does this), we are interested in the order in which they occur.

The essential step in both searches is to find all the descendants of a node which have not been visited so far. We can write

newDescs :: Ord a => Relation a -> Set a -> a -> Set a
newDescs rel st v = image rel v `diff` st

which returns the set of descendants of v in rel which are not in the set st. Here we have a problem; the result of this function is a set and not a list, but we require the elements in some order. One solution is to add to the Set abstract data type a function

flatten :: Set a -> [a]  -- (setList)
flatten (Set xs) = xs

which breaks the abstraction barrier in the case of the ordered list implementation. An alternative is to supply as a parameter a function

minSet :: Set a -> Maybe a

which returns the minimum of a non-empty set and which can be used in flattening a set to a list without breaking the abstraction barrier. Unconcerned about its particular definition, we assume the existence of a flatten function of type (setList). Then we can say

findDescs :: Ord a => Relation a -> [a] -> a -> [a]
findDescs rel xs v = flatten (newDescs rel (makeSet xs) v)

A breadth-first search involves repeatedly applying findDescs until a limit is reached. The limit function discussed earlier will find this, so we define

breadthFirst :: Ord a => Relation a -> a -> [a]
breadthFirst rel val
    = limit step start
      where
      start = [val]
      step xs = xs ++ nub (concat (map (findDescs rel xs) xs))

A step performs a number of operations:

  • First, all the descendants of elements in xs which are not already in xs are found. This is given by mapping (findDescs rel xs) along the list xs.

  • This list of lists is then concatenated into a single list.

  • Duplicates can occur in this list, as a node may be a descendant of more than one node, and so any duplicated elements must be removed. This is the effect of the library function

    nub :: Eq a => [a] -> [a]

    which removes all but the first occurrence of each element in a list.

How does depth-first search proceed? We first generalize the problem to

depthSearch :: Ord a => Relation a -> a -> [a] -> [a]
depthFirst rel v = depthSearch rel v []

where the third argument is used to carry the list of nodes already visited, and which are therefore not to appear in the result of the function call.

depthSearch rel v used
        = v : depthList rel (findDescs rel used' v) used'
          where
          used' = v:used

Here we call the auxiliary function depthList, which finds all the descendants of a list of nodes.

depthList :: Ord a => Relation a -> [a] -> [a] -> [a]

depthList rel [] used = []

depthList rel (val:rest) used
  = next ++ depthList rel rest (used++next)
    where
    next = if   elem val used
           then []
           else depthSearch rel val used

The definition has two equations, the first giving the trivial case where no nodes are to be explored. In the second there are two parts to the solution:

  • next gives the part of the graph accessible below val. This may be [], if val is a member of the list used, otherwise depthSearch is called.

  • depthList is then called on the tail of the list, but with next appended to the list of nodes already visited.

This pair of definitions is a good example of definition by mutual recursion, since each calls the other. It is possible to define a single function to perform the effect of the two, but this pair of functions seems to express the algorithm in the most natural way.

Exercises

16.45 Calculate

classes (connect graph1)
classes (connect graph2)

where graph2 = graph1 ∪ {(4,3)}.

16.46 Give calculations of

breadthFirst graph2 1
depthFirst graph2 1

where graph2 is defined in the previous question.

16.47 Using the searches as a model, give a function

distance :: Eq a => Relation a -> a -> a -> Int

which gives the length of a shortest path from one node to another in a graph. For instance,

distance graph1 1 4 = 2
distance graph1 4 1 = 0

0 is the result when no such path exists, or when the two nodes are equal.

16.48 A weighted graph carries a numerical weight with each edge. Design a type to model this. Give functions for breadth-first and depth-first search which return lists of pairs. Each pair consists of a node, together with the length of a shortest path to that node from the node at the start of the search.

16.49 A heterogeneous relation relates objects of different type. An example might be the relation relating a person to their age. Design a type to model these relations; how do you have to modify the functions defined over Relation a to work over this type, if it is possible?

16.50 [Harder] Formulate QuickCheck properties for the search functions given in this section. You should try to think of properties which are shared by all search functions, and also other properties which hold of particular search functions.

Commentary

This section explores a number of issues raised by the introduction of ADTs into our repertoire.

First, we have not yet said anything about verification of functions over abstract data types. This is because there is nothing new to say about the proof of theorems: these are proved for the implementation types exactly as we have seen earlier. The theorems valid for an abstract data type are precisely those which obey the type constraints on the functions in the signature. For a queue type, for instance, we will be able to prove that

remQ (addQ x emptyQ) = (x , emptyQ)

by proving the appropriate result about the implementation. What would not be valid would be an equation like

emptyQ = Qu []

since this breaks the information-hiding barrier and reveals something of the implementation itself.

Next we note that our implementation of sets gives rise to some properties which we ought to prove, often called invariants. We have assumed that our sets are implemented as ordered lists without repetitions; we ought to prove that each operation over our implementation preserves this property. Both the properties of the functions, and the invariants over the implementation, can be formulated as QuickCheck properties; we leave these as exercises for the reader.

Finally, observe that both classes and abstract data types use signatures, so it is worth surveying their similarities and differences.

  • Their purposes are different: ADTs are used to provide information hiding, and to structure programs; classes are used to overload names, to allow the same name to be used over a class of different types.

  • The signature in an ADT is associated with a single implementation type, which may be monomorphic or polymorphic. On the other hand, the signature in a class will be associated with multiple instances; this is the whole point of including classes, in fact.

  • The functions in the signature of an ADT provide the only access to the underlying type. There is no such information hiding over classes: to be a member of a class, a type must provide at least the types in signature.

Summary

The abstract data types of this chapter have three important and related properties.

  • They provide a natural representation of a type, which avoids being over-specific. An abstract data type carries precisely the operations which are naturally associated with the type and nothing more.

  • The signature of an abstract data type is a firm interface between the user and the implementer: development of a system can proceed completely independently on the two sides of the interface.

  • If the implementation of a type is to be modified, then only the operations in the signature need to be changed; any operation using the signature functions can be used unchanged. We saw an example of this with search trees, when the implementation was modified to include size information.

We saw various examples of ADT development. Most importantly we saw the practical example of the simulation types being designed in the three stages suggested. First the types are named, then they are described informally and finally a signature is written down. After that we are able to implement the operations of the signature as a separate task.

One of the difficulties in writing a signature is being sure that all the relevant operations have been included; we have given a check-list of the kinds of operations which should be present, and against which it is sensible to evaluate any candidate signature definitions.
