Reasoning about programs

We gave an introduction to proof in Tests, properties and proofs, where we said that a proof is an argument that a particular proposition holds. Often a proposition will be general in saying that something holds for all things of a certain sort. In mathematics we might give a proof of Pythagoras’ theorem, which states that there is a relationship a^ 2=b^ 2+c^ 2 between the sides of all right-angled triangles.

In programming we can prove that programs have a particular property for all input values. Having a proof means that we can be certain that the program will behave as we require whatever the conditions. Compare this with program testing: a test assures us that a program behaves as it should on a particular collection of input values; it can only be an act of faith to infer from this that the program behaves as expected on every possible input, and no mathematician would accept a proposition as valid simply because it holds for a limited set of test data.

Property-based testing – as given by QuickCheck – provides much better coverage, but it is still possible that the places where an error occurs could be missed by randomly generating data; proof avoids this, and gives an error ‘nowhere to hide’: Coverage of testing, property-based testing and proof illustrates this. Even when we are sure that using QuickCheck shows that a particular property holds, a proof can tell us why that property holds, not just that it is true.

Central to applying proof within functional programming is the insight that we can read function definitions as logical descriptions of what they do; we discuss this in depth at the start of the chapter. After looking again at the relationship of reasoning, testing and property-based testing, we look at some background topics in programming and logic, before introducing the central idea of proof by induction over finite lists.

Proofs by induction follow a pattern, and we illustrate this by giving a sequence of examples. We also supply advice on how to go about finding induction proofs. We also look at the QuickCheck properties that correspond to the propositions we prove, and indeed check them using QuickCheck. The chapter concludes with a more challenging example of proof, which you can omits on a first reading.

Understanding definitions

Suppose that we ask ourselves the seemingly obvious question: ‘how do we understand what a function does?’ There are various ways of answering this.

• We can evaluate what the function does on particular inputs, using an implementation like GHCi.

• We can do the same thing by hand, performing a line-by-line calculation. This has the advantage of letting us see how the program gets to its result, but the disadvantage of being slow and impractical for all but the smallest of programs.

• We can try to argue about how the program behaves in general.

The third answer, in which we reason about the behaviour of our programs, is the subject of this chapter, which builds on the introduction of Tests, properties and proofs.

Consider a simple functional program like

length []     = 0  -- (length.1)
length (x:xs) = 1 + length xs  -- (length.2)

Using the definition we can calculate the length of any particular list like [2,3,1]

length [2,3,1]
~> 1 + length [3,1]  -- by (length.2)
~> 1 + (1 + length [1])  -- by (length.2)
~> 1 + (1 + (1 + length []))  -- by (length.2)
~> 1 + (1 + (1 + 0))  -- by (length.1)
~> 3

We can also read (length.1) and (length.2) as descriptions of how length behaves in general.

• (length.1) says what length [] is;

• (length.2) says that whatever values of x and xs we choose, length (x:xs) will be equal to 1 + length xs.

In the second case we have a general property of length: it states something about how length behaves on all non-empty lists. On the basis of these equations we can conclude that

length [x] = 1  -- (length.3)

How do we do that? We know that (length.2) holds for all values of x and xs, and so it will hold in particular when xs is replaced by [], so

length [x]
  = length (x:[])  -- by defn of [x]
  = 1 + length []  -- by (length.2)
  = 1 + 0   -- by (length.1)
  = 1

The lesson of this discussion is that we can read a function definition in (at least) two different ways.

• We can take the definition as describing how to compute particular results, such as length [2,3,1].

• We can also take the definition as a general description of the behaviour of the function in question.

From this general description we are able to deduce other facts, some like (length.3) being utterly straightforward, and others like

length (xs ++ ys) = length xs + length ys  -- (length.4)

expressing more complicated interactions between two or more functions. We will prove (length.4) in Further examples of proofs by induction.

Another way of looking at the proof of (length.3) above is that we are doing symbolic evaluation; rather than evaluating length at a particular value like [2] we have replaced the number 2 with a variable x, but used the evaluation rules in exactly the way that we used them earlier. We will find that symbolic evaluation forms an important part of our proofs, but we will need to use another principle – induction – to do most proofs for recursive functions.

To conclude this introduction, we have seen that functional programs ‘describe themselves’ in a direct way. If you are familiar with an imperative language like Pascal, C or Java, think how you might convince yourself of the analogues of (length.3) or (length.4) for programs written in that language. It’s very difficult to see how you might state these properties, and even more difficult to work out how to prove them valid.

Testing and proof

When we introduced program testing in Program testing we looked at the example

mysteryMax :: Integer -> Integer -> Integer -> Integer
mysteryMax x y z
  | x > y && x > z      = x
  | y > x && y > z      = y
  | otherwise           = z

which was an attempted solution to the problem of finding the maximum of three integers.

If I asked you to give me five sets of test data for the function, and for you to test the function at those points, I would guess that you would conclude that the implementation works: try it!

We can write a property that expresses that the function does as it should, like this:

prop_mystery :: Integer -> Integer -> Integer -> Bool

prop_mystery x y z =
    mysteryMax x y z == (x `max` y) `max` z

Let’s see what happens when we check this property using QuickCheck:

*Chapter8> quickCheck prop_mystery
*** Failed! Falsifiable (after 91 tests and 2 shrinks):
75
75
0
*Chapter8 Test.QuickCheck> quickCheck prop_mystery
*** Failed! Falsifiable (after 4 tests and 1 shrink):
3
3
0
*Chapter8> quickCheck prop_mystery
+++ OK, passed 100 tests.

The first time we check it, it takes 91 tests to find the error; in the second case we find it much more quickly, but in the third we don’t catch it at all!

Now let’s try to prove that the function behaves as it should. We need to look at various cases of the ordering of the values. If we first look at the cases

x > y && x > z
y > x && y > z
z > x && z > y

then in each of these mysteryMax will produce the correct solution. In the other cases, at least two of the three arguments are equal. If all three are equal,

x == y && y == z

the function also operates correctly. Finally, we start to look at the cases where precisely two elements are equal. The function behaves correctly when

y == z && z > x

but in the case of

x == y && y > z

we can see that the result will, erroneously, be z.

Now, we can see this process of attempting to prove a result as a general way of testing the function – it is a form of symbolic testing which will consider all cases in turn, at least until an error is found. We can therefore see that reasoning can give us a powerful way of debugging programs by focusing on the reason why we cannot complete a proof of correctness, as well as the more traditional view that a proof shows that a program meets the requirements put upon it.

On the other hand, as we mentioned in Program testing, finding a proof is a difficult enterprise, and so there are clearly roles for proof, property-based testing and traditional testing in the development of reliable software.

Definedness, termination and finiteness

Before we say anything more about proof, we need to talk about two aspects of programming upon which we have only touched so far.

Definedness and termination

Evaluating an expression can have one of two outcomes:

• the evaluation can halt, or terminate, to give an answer; or

• the evaluation can go on forever.

If we make the definition

fact :: Integer -> Integer
fact n
  | n==0        = 1
  | otherwise   = n * fact (n-1)

then examples of the two are given by the expressions

fact 2                     fact (-2)

since in the latter case

fact (-2)
~> (-2) * fact (-3)
~> (-2) * ((-3) * fact (-4))
~> ...

In the case that evaluation goes on for ever, we say that the value of the expression is undefined, since no defined result is reached. In writing proofs we often have to confine our attention to cases where a value is defined, since it is only for defined values that many familiar properties hold. One of the simplest examples is given by the expression

0*e

which we expect to be 0 irrespective of the value of e. That is certainly so if e has a defined value, but if e is fact (-2), the value of

0 * fact (-2)

will be undefined and not zero.

In many of the proofs we give, we state that results hold for all defined values. This restriction does not cause problems in practice, since the defined cases will be exactly those which interest us the vast majority of the time. An undefined value is of interest when a function does not give a defined value when it is expected to – a case of symbolic debugging.

Finiteness

We have said nothing so far about the order in which expressions are evaluated in Haskell. In fact, Haskell evaluation is lazy, so that arguments to functions are only evaluated if their values are actually needed. This gives some Haskell programs a distinctive flavour, which we explore in depth in Lazy programming. What is important for us here is that lazy evaluation allows the definition and use of infinite lists like

[1,2,3, ... ]

and partially defined lists. In what follows we will mainly confine our attention to finite lists, by which we mean lists which have a defined, finite length and defined elements. Examples are

[]             [1,2,3]             [[4,5],[3,2,1],[]]

Reasoning about lazy programs is discussed explicitly in Proof revisited below.

Exercises

9.1 Given the definition of fact above, what are the results of evaluating the following expressions?

(4 > 2) || (fact (-1) == 17)
(4 > 2) && (fact (-1) == 17)

Discuss the reasons why you think that you obtained these answers.

9.2 Give a definition of a multiplication function

mult :: Integer -> Integer -> Integer

so that  mult 0 (fact (-2)) evaluates to 0.
What is the result of  mult (fact (-2)) 0 for your function? Explain why.

A little logic

In order to appreciate how to reason about functional programs we need not have a background in formal logic. Nevertheless, it is worth discussing two aspects of logic before we proceed with our proofs.

Assumptions in proofs

First, we look at the idea of proofs which contain assumptions. Taking a particular example, it follows from elementary arithmetic that if we assume that petrol costs 27 pence per litre, then we can prove that four litres will cost £1.08.

What does this tell us? It does not tell us outright how much four litres will cost; it only tells us the cost if the assumption is valid. To be sure that the cost will be £1.08, we need to supply some evidence that the assumption is justified: this might be another proof — perhaps based on petrol costing £1.20 per gallon — or direct evidence.

We can write what we have proved as a formula, 1 litre costs 27 pence ⇒ 4 litres cost 1.08 where the arrow, ⇒, which is the logical symbol for implication, says that the second proposition follows from the first.

As we have seen, we prove an implication like A⇒B by assuming A in proving B. If we then find a proof of A, then knowing the implication will guarantee that B is also valid.

Yet another way of looking at this is to see a proof of A⇒B as a process for turning a proof of A into a proof of B. We use this idea in proof by induction, as one of the tasks in building an induction proof is the induction step, where we prove that one property holds assuming another.

Free variables and quantifiers

When we write an equation like

square x = x*x

it is usually our intention to say that this holds for all (defined) values of the free variable x. If we want to make this ‘for all’ explicit we can use a quantifier like this

∀x (square x = x*x)

where we read the universal quantifier, ‘∀x’, as saying ‘for all x…’.

We now turn to induction, the main technique we use for proving properties of programs.

Induction

In Defining functions over lists we saw that a general method for defining lists was primitive recursion, as exemplified by

sum :: [Integer] -> Integer
sum []     = 0  -- (sum.1)
sum (x:xs) = x + sum xs  -- (sum.2)

Here we give a value outright at [], and define the value of sum (x:xs) using the value sum xs. Structural induction is a proof principle which states:

Definition 1.

Principle of structural induction for lists

In order to prove that a logical property P(xs) holds for all finite lists xs we have to do two things.

• Base case. Prove P([]) outright.

• Induction step. Prove P(x:xs) on the assumption that P(xs) holds.

  In other words P(xs) ⇒ P(x:xs) has to be proved.

  The P(xs) here is called the induction hypothesis since it is assumed in proving P(x:xs).

It is interesting to see that this is just like primitive recursion, except that instead of building the values of a function, we are building up the parts of a proof. In both cases we deal with [] as a basis, and then build the general thing by showing how to go from xs to (x:xs). In a function definition we define fun (x:xs) using fun xs; in the proof of P(x:xs) we are allowed to use P(xs).

Justification

Just as we argued that recursion was not circular, so we can see proof by induction building up the proof for all finite lists in stages. Suppose that we are given proofs of P([]) and P(xs) ⇒ P(x:xs) for all x and xs and we want to show that P([1,2,3]). The list [1,2,3] is built up from [] using cons like this,

1:2:3:[]

and we can construct the proof of P([1,2,3]) in a way which mirrors this step-by-step construction,

• P([]) holds;

• P([]) ⇒ P([3]) holds, since it is a case of P(xs) ⇒ P(x:xs);

• Recall our discussion of ‘⇒’ above; if we know that both P([]) ⇒ P([3]) and P([]) hold, then we can infer that P([3]) holds.

• P([3]) ⇒ P([2,3]) holds, and so for similar reasons we get P([2,3]).

• Finally, because P([2,3]) ⇒ P([1,2,3]) holds, we see that P([1,2,3]) holds.

This explanation is for a particular finite list, but will work for any finite list: if the list has n elements, then we will have n+1 steps like the four above. To conclude, this shows that we get P(xs) for every possible finite list xs if we know that both requirements of the induction principle hold.

A first example

We have mentioned the definition of sum; recall also the function to double all elements of a list

doubleAll []     = []  -- (doubleAll.1)
doubleAll (z:zs) = 2*z : doubleAll zs  -- (doubleAll.2)

Now, how would we expect doubleAll and sum to interact? If we sum a list after doubling all its elements, we would expect to get the same result as by doubling the sum of the original list:

sum (doubleAll xs) = 2 * sum xs  -- (sum+dblAll)

We can make this a QuickCheck property, like this:

prop_SumDoubleAll :: [Integer] -> Bool

prop_SumDoubleAll xs =
    sum (doubleAll xs) == 2 * sum xs

which is identical except that we use the Boolean equality ‘==’ rather than the mathematical equality ‘=’; the property repeatedly passes 100 tests when we QuickCheck it.

Setting up the induction

How are we to prove this for all xs? According to the principle of structural induction we get two induction goals. The first is the base case

sum (doubleAll []) = 2 * sum []  -- (base)

The second is the induction step, in which we have to prove

sum (doubleAll (x:xs)) = 2 * sum (x:xs)  -- (ind)

using the induction hypothesis

sum (doubleAll xs) = 2 * sum xs  -- (hyp)

In all proofs that follow we will label the cases by (base), (ind) and (hyp).

The base case

We are required to prove (base): how do we start? The only resources we have are the equations (sum.1), (sum.2), (doubleAll.1) and (doubleAll.2), so we have to concentrate on using these. As we are trying to prove an equation, we can think of simplifying the two sides separately, so working with the left-hand side first,

sum (doubleAll [])
  = sum []   -- by (doubleAll.1)
  = 0   -- by (sum.1)

Looking at the right-hand side, we have

2 * sum []
  = 2 * 0    -- by (sum.1)
  = 0   -- by *

This shows that the two sides are the same, and so completes the proof of the base case.

The induction step

Here we are required to prove (ind). As in the base case we have the defining equations of doubleAll and sum, but we also can – and usually should – use the induction hypothesis (hyp).

We work as we did in the base case, simplifying each side as much as we can using the defining equations. First the left-hand side,

sum (doubleAll (x:xs))
  = sum (2*x : doubleAll xs)  -- by (doubleAll.2)
  = 2*x + sum (doubleAll xs)  -- by (sum.2)

and then the right

2 * sum (x:xs)
  = 2 * (x + sum xs)  -- by (sum.2)
  = 2*x + 2 * sum xs  -- by arith.

Now, we have simplified each side using the defining equations. The last step equating the two is given by the induction hypothesis (hyp), which can be used to carry on the simplification of the left-hand side, giving

sum (doubleAll (x:xs))
  = sum (2*x : doubleAll xs)
  = 2*x + sum (doubleAll xs)
  = 2*x + 2 * sum xs  -- by (hyp)

and so this final step makes the left- and right-hand sides equal, on the assumption that the induction hypothesis holds. This completes the induction step, and therefore the proof itself.⬛

We use the box, ⬛ , to signify the end of a proof.

Finding induction proofs

Looking at the previous example, we can glean a number of pieces of advice about how to find proofs of properties of recursively defined functions.

• As a first step, it is a good idea to state the goal as a QuickCheck property. Once we have that we can check that it should be possible to prove it: if we find a counterexample then we’d better try to reformulate the goal, and not waste our time trying to prove something that doesn’t hold!

• State clearly the goal of the induction and the two sub-goals of the induction proof: (base) and (hyp) ⇒ (ind).

• If any confusion is possible, change the names of the variables in the relevant definitions so that they are different from the variable(s) over which you are doing the induction.

• The only resources available are the definitions of the functions involved and the general rules of arithmetic. Use these to simplify the sub-goals. If the sub-goal is an equation, then simplify each side separately.

• In the case of the induction step, (ind), you should expect to use the induction hypothesis (hyp) in your proof; if you do not, then it is most likely that your proof is incorrect.

• Label each step of your proof with its justification: this is usually one of the defining equations of a function.

In the next section we look at a series of examples.

Further examples of proofs by induction

In this section we present two more examples of proof by structural induction over finite lists.

Example 1.

1. length and ++

We begin by looking at the example (length.4) introduced at the start of the chapter.

length (xs ++ ys) = length xs + length ys  -- (length.4)

The Quick Check property expressing this is

prop_lengthPlusPlus :: [a] -> [a] -> Bool

prop_lengthPlusPlus xs ys =
    length (xs ++ ys) == length xs + length ys

and this is verified when the property is checked. Recall the definitions of length and ++

length []     = 0  -- (length.1)
length (z:zs) = 1 + length zs  -- (length.2)

[]     ++ zs = zs  -- (++.1)
(w:ws) ++ zs = w:(ws++zs)  -- (++.2)

where we have chosen new names for the variables so as not to conflict with the variables in the goal.

There is some question about how to proceed with the proof, since (length.4) involves two variables, xs and ys. We can be guided by the definitions, where we see that the definition of ++ is made by recursion over the first variable. We therefore make the goal a proof of (length.4) for all finite xs and ys by induction over xs; the proof works for all ys as ys is a variable, which stands for an arbitrary list, just like the variable x in the earlier proof of (length.3) stood for an arbitrary list element.

Statement

We can now write down the two goals of the induction proof. The base case requires that we prove

length ([] ++ ys) = length [] + length ys  -- (base)

and in the induction step we have to prove

length ((x:xs) ++ ys) = length (x:xs) + length ys  -- (ind)

from the inductive assumption

length (xs ++ ys) = length xs + length ys  -- (hyp)

Base

We look separately at the two sides of (base), left-hand side first,

length ([] ++ ys)
  = length ys  -- by (++.1)

length [] + length ys
  = 0 + length ys  -- by (length.1)
  = length ys

which shows their equality.

Induction

First we look at the left-hand side of (ind)

length ((x:xs) ++ ys)
  = length (x:(xs ++ ys))  -- by (++.2)
  = 1 + length (xs ++ ys)  -- by (length.2)

We cannot simplify this further with the defining equations, but we can use (hyp) to give us

  = 1 + length xs + length ys  -- by (hyp)

Now, looking at the right-hand side of (ind) we get

length (x:xs) + length ys
  = 1 + length xs + length ys  -- by (length.2)

and this shows that (ind) follows from (hyp), completing the second half of the proof and so the proof itself.⬛

2. reverse and ++

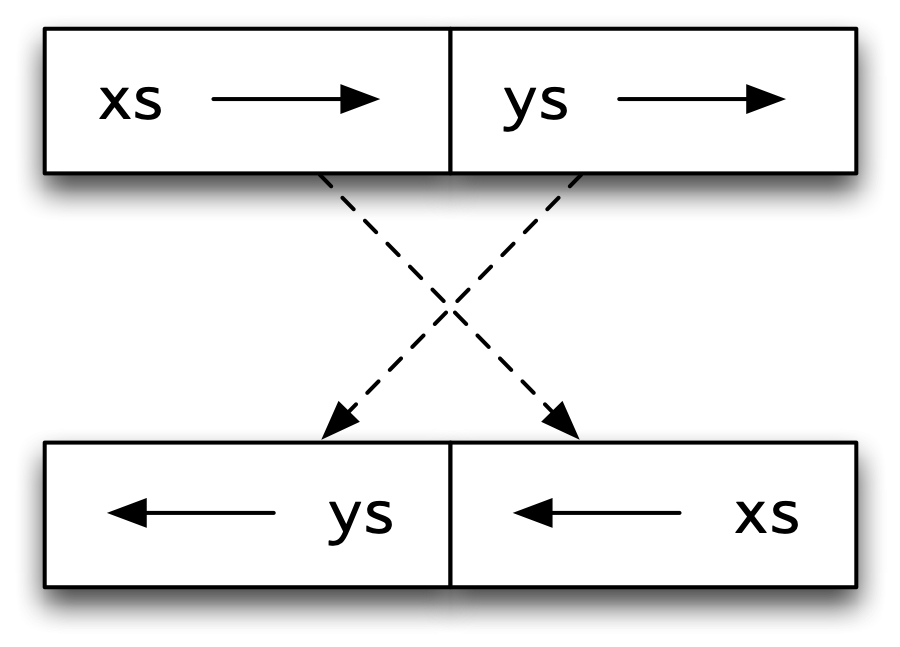

What happens when we reverse the join of two lists, xs++ys? The process is illustrated in FigurereverseSwap. Each list is reversed, and they are swapped. In formal terms,

reverse (xs ++ ys) = reverse ys ++ reverse xs  -- (reverse++)

where we define

reverse []     = []  -- (reverse.1)
reverse (z:zs) = reverse zs ++ [z]  -- (reverse.2)

We will try to prove (reverse++) for all finite lists xs and ys by induction over xs.

Statement

The base case is

reverse ([] ++ ys) = reverse ys ++ reverse []  -- (base)

and the induction goal is

reverse ((x:xs) ++ ys) = reverse ys ++ reverse (x:xs)  -- (ind)

which is to be proved using the assumption

reverse (xs ++ ys) = reverse ys ++ reverse xs  -- (hyp)

Base

Simplifying both sides of (base) gives us

reverse ([] ++ ys)
  = reverse ys   -- by (++.1)

reverse ys ++ reverse []
  = reverse ys ++ []   -- by (reverse.1)

but we can prove the two equal only if we can show that appending an empty list to the end of a list is an identity operation, that is

xs ++ [] = xs  -- (++.3)

We leave a proof of this by induction over xs as an exercise for the reader.

Induction

Again, we look at the two sides of the equation, left-hand side first.

reverse ((x:xs) ++ ys)
  = reverse (x:(xs ++ ys))   -- by (++.2)
  = reverse (xs ++ ys) ++ [x]    -- by (reverse.2)
  = (reverse ys ++ reverse xs) ++ [x]    -- by (hyp)

Examining the right-hand side, we have

reverse ys ++ reverse (x:xs)
  = reverse ys ++ (reverse xs ++ [x])   -- by (reverse.2)

Now, these two are almost equal, except that the joins are bracketed differently. We need another general property of ++, namely that it is associative:

xs ++ (ys ++ zs) = (xs ++ ys) ++ zs  -- (++.4)

the proof of which we again leave as an exercise.⬛

This proof is instructive: it shows that often in proofs we use other theorems or lemmas (the mathematician’s term for a ‘little theorem’) on the way. If we do any serious proof we will build up a library of these lemmas, with (++.3) and (++.4) being basic results about ++ which we will call upon almost without thinking. We would expect this library to resemble the standard prelude: it would contain all those theorems which link the prelude functions and which will be called into use whenever we use prelude functions. Many of the exercises at the end of the section ask you to prove theorems concerning prelude functions.

QuickCheck and properties over [a]

If we test the QuickCheck property

prop_reversePlusPlus :: Eq a => [a] -> [a] -> Bool

prop_reversePlusPlus xs ys =
    reverse (xs ++ ys) == reverse ys ++ reverse xs

we find that it holds. Fine, but if we check this property:

prop_reversePlusPlusOops :: Eq a => [a] -> [a] -> Bool

prop_reversePlusPlusOops xs ys =
    reverse (xs ++ ys) == reverse xs ++ reverse ys

we find that this holds too!

What is happening here? The problem is that when we check a generic property – that is one over a polymorphic type – then it is in fact checked over a default type. This default type is (), which has exactly one element, also (). The incorrect property is correct over lists of that type, because all their elements are the same!

In order to restore sanity, it is enough to change the properties to a suitable non-generic type, using a type declaration like this:

prop_reversePlusPlusOops :: [Integer] -> [Integer] -> Bool

Exercises

9.3 Prove the properties for functions over Picture first discussed in Tests, properties and proofs, that is, for all finite pic:

flipV (flipH pic) = flipH (flipV pic)
flipV (flipV pic) = pic
flipH (flipV pic) = pic

9.4 Look again at the properties for functions over Picture discussed in The Picture example: implementation, and prove those properties which should hold for all pictures.

9.5 Prove for all finite xs and ys that

sum (xs ++ ys) = sum xs + sum ys      -- (sum++)

9.6 Prove the two rules for ++:

xs ++ [] = xs  -- (++.3)
xs ++ (ys ++ zs) = (xs ++ ys) ++ zs  -- (++.4)

for all finite xs, ys and zs.

9.7 Show for all finite xs that

sum (reverse xs)    = sum xs
length (reverse xs) = length xs

What common factors can you see in your two proofs?

9.8 Show for all finite integer lists xs and ys that

elem z (xs ++ ys) = elem z xs || elem z ys

9.9 Show for all finite lists ps that

zip (fst (unzip ps)) (snd (unzip ps)) = ps

Under what conditions on xs and ys is it the case that

unzip (zip xs ys) = (xs,ys)

when unzip is defined by

unzip [] = ([],[])
unzip ((x,y):ps)
  = (x:xs,y:ys)
    where
    (xs,ys) = unzip ps

Give a proof in that case.

9.10 [Harder] Show for all finite xs and defined n that

take n xs ++ drop n xs = xs

9.11 Write QuickCheck properties for the propositions that you have proved, and check that they indeed hold.

Generalizing the proof goal

It is not always easy to build a proof in a straightforward way, by induction over a goal we set ourselves. In this section we explore an example in which we are able to build a proof of the property we seek only after two false starts. The section is more challenging than the rest of the chapter and can safely be omitted on first reading.

The shunting function

The shunt function moves the elements from one list onto another, like this

shunt :: [a] -> [a] -> [a]

shunt []     ys = ys  -- (shunt.1)
shunt (x:xs) ys = shunt xs (x:ys)   -- (shunt.2)

Starting with an empty second argument, we have

shunt [2,3,1] []
~> shunt [3,1] [2]
~> shunt [1] [3,2]
~> shunt [] [1,3,2]
~> [1,3,2]

and so we can reverse lists using this function:

rev :: [a] -> [a]
rev xs = shunt xs []  -- (rev.1)

Now we turn to looking at properties of the rev function.

First proof attempt

Reversing a list twice should give us back the list we started with, and so we aim to prove that

rev (rev xs) = xs   -- Q(xs)

for all finite lists xs. The base case is easily established, but when we look at the induction step, we meet our first problem:

rev (rev (x:xs))
  = shunt (shunt (x:xs) []) []   -- by (rev.1)
  = shunt (shunt xs [x]) []  -- by (shunt.2)

This has no direct relationship to the induction hypothesis, which mentions only the function rev. A clue to the problem is that rev is not the function defined by recursion — it is simply a specialization of shunt. Can we find a generalization of Q(xs) which talks explicitly about shunt and which is to be proved by induction?

In general the effect of shunt xs ys is to give

(reverse xs) ++ ys

If we reverse this list, we should get

(reverse ys) ++ xs

(try some examples!) and so we should be able to prove that

shunt (shunt xs ys) [] = shunt ys xs

When ys is replaced by [], we get Q(xs). We therefore aim to prove this generalization.

Second proof attempt

Our aim is to show

shunt (shunt xs ys) [] = shunt ys xs

for all finite lists xs and ys. In the case that xs is [], the proof is simple. Now we look at the induction step:

shunt (shunt (x:xs) ys) []
  = shunt (shunt xs (x:ys)) []   -- by (shunt.2)

We would now like to claim by induction that this is equal to shunt (x:ys) xs, but to do this we need the induction hypothesis to give the result that

shunt (shunt xs (x:ys)) [] = shunt (x:ys) xs

rather than

shunt (shunt xs ys) [] = shunt ys xs

To get around this, we strengthen the induction hypothesis to become

shunt (shunt xs zs) [] = shunt zs xs for all finite lists zs

so that in particular it will hold when (x:ys) replaces zs. We now try again.

The successful proof attempt

In logical notation, our goal is to prove

∀zs (shunt (shunt xs zs) [] = shunt zs xs)

for all finite xs by induction.

Statement

Now we can state what is required. The base case is

∀zs (shunt (shunt [] zs) [] = shunt zs [])   -- (base)

and the induction step is to prove

∀zs (shunt (shunt (x:xs) zs) [] = shunt zs (x:xs))   -- (ind)

assuming the induction hypothesis

∀zs (shunt (shunt xs zs) [] = shunt zs xs)   -- (hyp)

Base

In the base case we prove

∀zs (shunt (shunt [] zs) [] = shunt zs [])   -- (base)

by proving it for an arbitrary zs. The left-hand side simplifies to the right-hand side in one step.

shunt (shunt [] zs) []
  = shunt zs []   -- by (shunt.1)

Induction

As in the base case, we prove

∀zs (shunt (shunt (x:xs) zs) [] = shunt zs (x:xs))   -- (ind)

by proving it for an arbitrary zs. Simplifying the left-hand side, we have

shunt (shunt (x:xs) zs) []
  = shunt (shunt xs (x:zs)) []   -- by (shunt.2)

Now, by (hyp), where we take the particular value (x:zs) to replace the universally quantified variable zs,

  = shunt (x:zs) xs   -- by (hyp)
  = shunt zs (x:xs)   -- by (shunt.2)

This is the right-hand side, and so the proof is complete for an arbitrary ys, giving a proof of (ind), and completing the induction proof. ⬛

This example shows that we may have to generalize what has to be proved in order for induction proofs to work. This seems paradoxical: we are making it harder for ourselves, apparently. We are in one way, but at the same time we make the induction hypothesis stronger, so that we have more resources to use when proving the induction step.

Exercises

9.12 Prove for all finite lists xs and ys that

rev (xs ++ ys) = rev ys ++ rev xs

9.13 Using the function

facAux :: Integer -> Integer -> Integer
facAux 0 p = p
facAux n p = facAux (n-1) (n*p)

we can define

fac2 n = facAux n 1

Prove that for all defined natural numbers n,

fac n = fac2 n

9.14 Write a property expressing that the old and new reverse functions have the same behaviour.

9.15 Write a property expressing that the old and new factorial functions have the same behaviour. What happens to the QuickCheck of the property if you allow arbitrary integer inputs to the factorial functions? how can you remedy this?

Summary

This chapter has shown that we can give Haskell programs a logical reading which allows us to reason about them. Central to reasoning about lists is the principle of structural induction, which does for proof what primitive recursion does for definitions.

We gave a collection of hints about how we can build proofs for functional programs, and illustrated these by giving a number of results for common prelude functions such as sum, ++ and length, as well as exercises involving others. We also saw how QuickCheck could be used to check whether or not a property appears to hold: this is a very useful way of making a ‘sanity check’ of a property before we try to prove it.
