Data types, tuples and lists

Thus far we have looked at programs which work over the basic types Integer, Int, Float, Bool and Char, and we have also seen how to design enumerated types like the Move type in the Rock - Paper - Scissors game. We’ve also looked at strategies for designing programs in general, including breaking problems down into smaller problems to solve them in steps. However, in practical problems we will want to represent more complex things, as we saw with our Picture example in Introducing functional programming.

This chapter introduces two ways of building compound data built into Haskell; these are the tuple and the list, and in particular the String type. We’ll also look again at ways of defining data types for ourselves. Together they are enough to let us represent many different kinds of ‘structured’ information. We shall meet other ways of defining data types for ourselves in Algebraic types and Abstract data types.

After looking at these various types, we’ll explain how to manipulate tuples and lists, and in particular we introduce the ‘list comprehension’ notation to write down descriptions of how lists may be formed from other lists, and use this in a database case study.

In the chapters to come we look at the range of built-in list processing functions, aw well as how list-manipulating functions can be defined from scratch.

Introducing tuples and lists

Both tuples and lists are built up by combining a number of pieces of data into a single object, but they have different properties.

In a tuple, we combine a fixed number of values of fixed types – which might be different – into a single object.
In a list we combine an arbitrary number of values – all of the same type – into a single object.

Let’s look at an example to clarify the difference. Suppose that we want to make a simple model of a supermarket, and as part of that model we want to record the contents of someone’s shopping basket.

Individual items

A given item has a name and a price (in pence), and we therefore need somehow to combine these two pieces of information. We do this in a tuple, such as

("Salt: 1kg",139)
("Plain crisps",25)

where in each tuple a String is combined with an Int.

The String gives the name of the item.
The Int gives its price, in pence.¹

We can give names to types in Haskell, so that types are made easier to read, and we name this tuple type ShopItem like this:

type ShopItem = (String,Int)

Now we can say that ‘("Salt: 1kg",139) is a ShopItem’ or

("Salt: 1kg",139) :: ShopItem

The shopping basket

How are the contents of the basket represented? We know that we have a collection of items, but we do not know in advance how many we have; one basket might contain ten items, another one three; a third might be empty. Each item is represented in the same way, as a member of the ShopItem type, and so we represent the contents of the basket by a list of these, as in the list

[ ("Salt: 1kg",139) , ("Plain crisps",25) , ("Gin: 1lt",1099) ]

This is a member of the list type

[ (String,Int) ]

which we can also write

[ ShopItem ]

Other members of this list type include the empty list, [], and the basket above with a second packet of crisps replacing the gin:

[ ("Salt: 1kg",139) , ("Plain crisps",25) , ("Plain crisps",25) ]

We can give a name to this type too:

type Basket   = [ShopItem]

Tuples, lists and type checking

Every member of the ShopItem type will have two components – a String and an Int – as specified in the type (String,Int). If we are given a member of this type we can therefore predict what type its components will have, and this means that we can check that these components are used in an appropriate way: we can check that we deal with the second half as an Int and not a Bool, for example.

Turning to the Basket type, since every member of the list has the same type, we can predict the type of any item chosen from the list: it will be a ShopItem.

Suppose instead that Haskell allowed lists whose members could have different types: if we choose the first element of such a list we cannot predict its type, and so we lose the ability to type-check programs before they are run. Because we want to keep this important property, Haskell is designed so that lists have to contain elements of the same type, but different lists will contain elements of different types.

We therefore keep the property, first mentioned in Introducing functional programming, that we can type-check all programs prior to execution, and so any type errors in a program can be found before a program is actually executed.

Naming types

As we have seen, we can give names to types in Haskell, as in the definition
type ShopItem = (String,Int)
The keyword type introduces the fact that this is the definition of a type rather than a value. We can also tell this because the type names ShopItem and Basket begin with capital letters, as noted in Syntax. Built into the system is the definition
type String = [Char]
so Haskell treats strings as a special case of the list type. Names such as ShopItem and String are synonyms for the types which they name.

A type definition like this is treated as shorthand in Haskell – wherever a name like ShopItem is used, it has exactly the same effect as if (String,Int) had been written. Definitions like this make programs more readable and also lead to more comprehensible type error messages.

We now look at tuple types in more detail, and examine some examples of how tuples are used in practice.

Tuple types

The last section introduced the idea of tuple types. In general a tuple type is built up from components of simpler types. The type

(t1,t2,...,tn)

consists of tuples of values

(v1,v2,...,vn)

in which v1 ::t1, …, vn ::tn. In other words, each component vi of the tuple has to have the type ti given in the corresponding position in the tuple type.

The reason for the name ‘tuple’ is that these objects are usually called pairs, triples, quadruples, quintuples, sextuples and so on. The general word for them is therefore ‘tuple’. In other programming languages, these types are called records or structures; see Appendix Functional, imperative and OO programming for a more detailed comparison.

We can model a type of supermarket items by the ShopItem type defined by

type ShopItem = (String,Int)

and we saw above that its members include items like ("Gin, 1lt",1099). How else are tuple types used in programs? We look at a series of examples now.

Example 1.

1. First, we can use a tuple to return a compound result from a function, as in the example where we are required to return both the minimum and the maximum of two Integers

minAndMax :: Integer -> Integer -> (Integer,Integer)
minAndMax x y
  | x>=y        = (y,x)
  | otherwise   = (x,y)

2. Secondly, suppose we are asked to find a (numerical) solution to a problem when it is uncertain whether a solution actually exists in every case: this might be the question of where a straight line meets the horizontal or x-axis, for instance.

One way of dealing with this is for the function to return a (Float,Bool) pair. If the boolean part is False, this signals that no solution was found; if it is like (2.1,True), it indicates that 2.1 is indeed the solution.

Pattern matching

Next we turn to look at how functions can be defined over tuples. Functions over tuples are usually defined by pattern matching. Instead of writing a variable for an argument of type (Integer,Integer), say, a pattern, (x,y) is used.

addPair :: (Integer,Integer) -> Integer
addPair (x,y) = x+y

On application the components of the pattern are matched by the corresponding components of the argument, so that on applying the function addPair to the argument (5,8) the value 5 is matched to x, and 8 to y, giving the calculation

addPair (5,8)
~> 5+8
~> 13

Patterns can contain literals and nested patterns, as in the examples

addPair (0,y) = y
addPair (x,y) = x+y

shift :: ((Integer,Integer),Integer) -> (Integer,(Integer,Integer))
shift ((x,y),z) = (x,(y,z))

Functions which pick out particular parts of a tuple can be defined by pattern matching. For the ShopItem type, the definitions might be

name  :: ShopItem -> String
price :: ShopItem -> Int

name  (n,p) = n
price (n,p) = p

Haskell has these selector functions on pairs built in. They are

fst (x,y) = x
snd (x,y) = y

Given these selector functions we can avoid pattern matching if we so wish. For instance, we could redefine addPair like this

addPair :: (Integer,Integer) -> Integer
addPair p = fst p + snd p

but generally a pattern-matching definition is easier to read than one which uses selector functions instead.

Example 2.

3. We first introduced the Fibonacci numbers

0, 1, 1, 2, 3, 5, ... , u, v, (u+v), ...

in General forms of recursion, where we gave an inefficient recursive definition of the sequence. Using a tuple we can give an efficient solution to the problem. The next value in the sequence is given by adding the previous two, so what we do is to write a function which returns two consecutive values as a result. In other words we want to define a function fibPair so that it has the property that

fibPair n = (fib n , fib (n+1))

then given such a pair, (u,v) we get the next pair as (v,u+v), which is exactly the effect of the fibStep function:

fibStep :: (Integer,Integer) -> (Integer,Integer)
fibStep (u,v) = (v,u+v)

This gives us the definition of the ‘Fibonacci pair’ function

fibPair :: Integer -> (Integer,Integer)
fibPair n
  | n==0        = (0,1)
  | otherwise   = fibStep (fibPair (n-1))

and we can define

fastFib :: Integer -> Integer
fastFib = fst . fibPair

where recall that ‘.’ composes the two functions, passing the output of fibPair to the input of fst, which picks out its first component.

One pair or two arguments?

It is important to distinguish between the functions
fibStep :: (Integer,Integer) -> (Integer,Integer)
fibStep (x,y) = (y,x+y)

fibTwoStep :: Integer -> Integer -> (Integer,Integer)
fibTwoStep x y = (y,x+y)
fibStep has a single argument which is a pair of numbers, while fibTwoStep has two arguments, each of which is a number. We shall see later that the second function can be used in a more flexible way than the first; for the moment it is important to realize that there is a difference, and that type errors will result if we confuse the two and write
fibStep 2 3                     fibTwoStep (2,3)
We say more about the relationship between these two functions in Currying and uncurrying.

Exercises

5.1 Give a definition of the function

maxOccurs :: Integer -> Integer -> (Integer,Integer)

which returns the maximum of two integers, together with the number of times it occurs. Using this, or otherwise, define the function

maxThreeOccurs :: Integer -> Integer -> Integer -> (Integer,Integer)

which does a similar thing for three arguments.

5.2 Give a definition of a function

orderTriple :: (Integer,Integer,Integer) -> (Integer,Integer,Integer)

which puts the elements of a triple of three integers into ascending order. You might like to use the maxThree, middle and minThree functions defined earlier.

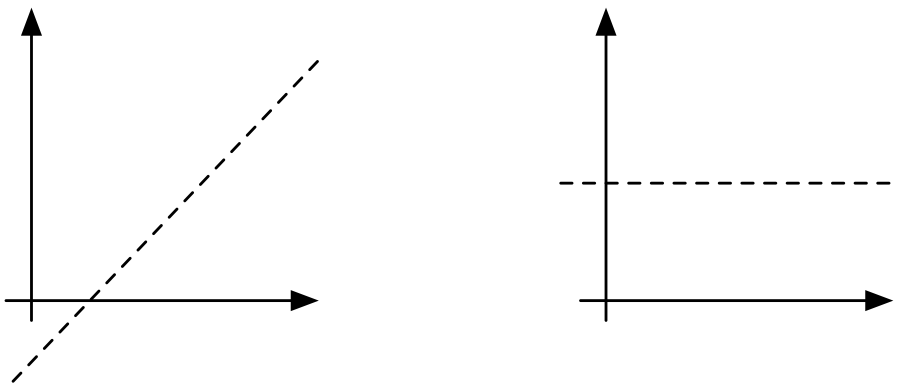

5.3 Define the function which finds where a straight line crosses the x-axis. You will need to think about how to supply the information about the straight line to the function.

5.4 Design test data for the preceding exercises; explain the choices you have made in each case. Give a sample evaluation of each of your functions.

Introducing algebraic types

We have already seen that it’s useful to be able to define our own enumerated types, such as a move in the Rock - Paper - Scissors game, a day of the week, or a season of the year. In this section we’ll see that we can use data types for much more general combinations of values.

Algebraic data type definitions are introduced by the keyword data, followed by the name of the type, an equals sign and then information about how elements are constructed by applying constructors. The names of the type and the constructors begin with capital letters.

We give a sequence of examples of increasing complexity, first recapping enumerated types, then looking at single constructor product types, and finally looking at types which contain a number of alternative ‘shapes’ of data. We look again at data types in Algebraic types.

Enumerated types

We have already seen examples of this, such as the type modelling a move in the Rock - Paper - Scissors game, in Defining types for ourselves: enumerated types. Recall that the definition lists the elements of the type, thus:

data Move = Rock | Paper | Scissors
            deriving (Eq,Show)

and we can define functions by pattern matching over the values, as in

score :: Move -> Move -> Integer
score Rock Rock     = 0
score Rock Paper    = -1
score Rock Scissors = 1
score Paper Rock    = 1

As we noted in Defining types for ourselves: enumerated types we can derive definitions of functions like equality using a ‘deriving’ clause in the definition of a data type so that we don’t need to define these functions for ourselves when we introduce a new data type definition. We will talk about the details of what underlies this in Algebraic types and type classes.

Product types

Instead of using a tuple we can define a data type with a number of components or fields, often called a product type. An example might be

data People = Person Name Age   -- (People)
              deriving (Eq,Show)

where Name is a synonym for String, and Age for Int, written thus:

type Name = String
type Age  = Int

The definition of People should be read as saying 28pcTo construct an element of type People, you need to supply two values; one, st say, of type Name, and another, n say, of type Age. The element of People formed from them will be Person st n. Example values of this type include

Person "Electric Aunt Jemima" 77
Person "Ronnie" 14

As before, functions are defined using pattern matching. Any element of type People will have the form Person st n, and so we can use this pattern on the left-hand side of a definition,

showPerson :: People -> String
showPerson (Person st n) = st ++ " -- " ++ show n

(recall that show gives a textual form of an Int). For instance,

showPerson (Person "Electric Aunt Jemima" 77)
 = "Electric Aunt Jemima -- 77"

Elements of the People type are made (or constructed) by applying the constructor Person. This is called a binary constructor because it takes two values to form a value of type People. For the enumerated types like Move the constructors are called nullary (or 0-ary) as they take no arguments.

The constructors introduced by algebraic type definitions can be used just like functions, so that Person st n is the result of applying the function Person to the arguments st and n; we can interpret the definition (People) as giving the type of the constructor, here

Person :: Name -> Age -> People

Tuples and data types

An alternative definition of the type of people is given by the type synonym
type People = (Name,Age)
The advantages of using an algebraic type are threefold.

Each object of the type carries an explicit label of the purpose of the element; in this case that it represents a person.

It is not possible accidentally to treat an arbitrary pair consisting of a string and a number as a person; a person must be constructed using the Person constructor.

The type will appear in any error messages due to mis-typing; a type synonym might be expanded out and so disappear from any type error messages.

There are also advantages of using a tuple type, with a synonym declaration.

The elements are more compact, and so definitions will be shorter.

Using a tuple, especially a pair, allows us to reuse many polymorphic functions such as fst, snd and unzip over tuple types; this will not be the case for the algebraic type.

In each system that we model we will have to choose between these alternatives: our decisions will depend exactly on how we use the products, and on the complexity of the system.

The approach here works equally well with unary constructors, so we might say
data Age = Years Int
whose elements are Years 45 and so on. It is clear from a definition like this that 45 is here being used as an age in years, rather than some unrelated numerical quantity. The disadvantage is that we cannot use functions defined over Int directly over Age.

Type and constructor names

We can use the same name, for instance Person, for both the type and the constructor of a type, as in the definition
data Person = Person Name Age
We choose not to do this, as using the same name for two related but different objects can easily lead to confusion, but it is an idiom used by a number of Haskell programmers and in many Haskell libraries.

The examples of types given here are a special case of what we look at next.

Alternatives

A shape in a simple geometrical program is either a circle or a rectangle. These alternatives are given by the type

data Shape = Circle Float |  -- (Shape)
             Rectangle Float Float
             deriving (Eq,Ord,Show)

which says that there are two ways of building an element of Shape. One way is to supply the radius of a Circle; the other alternative is to give the sides of a Rectangle. Example objects of this type are

Circle 3.0
Rectangle 45.9 87.6

Pattern matching allows us to define functions by cases, as in

isRound :: Shape -> Bool
isRound (Circle _)      = True
isRound (Rectangle _ _) = False

and also lets us use the components of the elements:

area :: Shape -> Float
area (Circle r)      = pi*r*r
area (Rectangle h w) = h*w

Another way of reading the definition (Shape) is to say that there are two constructor functions for the type Shape, whose types are

Circle    :: Float -> Shape
Rectangle :: Float -> Float -> Shape

These functions are called constructor functions because the elements of the type are constructed by applying these functions.

Extensions of this type, to accommodate the position of an object, are discussed in the exercises at the end of this section.

The general form of algebraic type definitions

The general form of the algebraic type definitions which we have seen so far is

data Typename   -- (Typename)
  = Con1 t11 ... t1k1 |
    Con2 t21 ... t2k2 |
        ....
    Conn tn1 ... tnkn

Each Coni is a constructor, followed by ki types, where ki is a non-negative integer which may be zero. We build elements of the type Typename by applying these constructor functions to arguments of the types given in the definition, so that

Coni vi1 ... viki

will be a member of the type Typename if vij is in tij for j ranging from 1 to ki.

Reading the constructors as functions, the definition (Typename) gives the constructors the following types

Coni :: ti1 -> ... -> tiki -> Typename

In Algebraic types we shall see two extensions of the definitions seen already.

The types can be recursive; we can use the type we are defining, Typename, as (part of) any of the types tij. This gives us lists, trees and many other data structures.
The Typename can be followed by one or more type variables which may be used on the right-hand side, making the definition polymorphic.

Recursive polymorphic types combine these two ideas, and this powerful mixture provides types which can be reused in many different situations – the built-in type of lists is an example of this kind of type. We look at these in Algebraic types.

For the moment, however, we’ll deal with the simple cases we have covered in this section, which are enough to model a wide variety of different problem domains, particularly in conjunction with tuples and lists.

type and data definitions

Before we move on, it is worth contrasting type and data definitions. A synonym given by type is simply a shorthand, and so a synonym type can always be expanded out, and therefore removed from the program.

On the other hand, a data definition creates a new type. Because synonyms are simply shorthand, a synonym definition cannot be recursive; data definitions can be and often are recursive, as we shall discover in Algebraic types.

Exercises

5.5 Define a function to give the length of the perimeter of a geometrical shape, of type Shape. What is the type of this function?

5.6 Re-define the Item type for supermarket products so that it uses a data definition rather than a type definition.

5.7 Add an extra constructor to Shape for triangles, and extend the functions isRound, area and perimeter to include triangles.

5.8 Define a function which decides whether a Shape is regular: a circle is regular, a square is a regular rectangle and being equilateral makes a triangle regular.

5.9 Investigate the derived definitions for Move and Shape: what form do the show functions take, for example?

5.10 Define an == function over Shape so that all circles of negative radius are equated. How would you treat rectangles with negative sides?

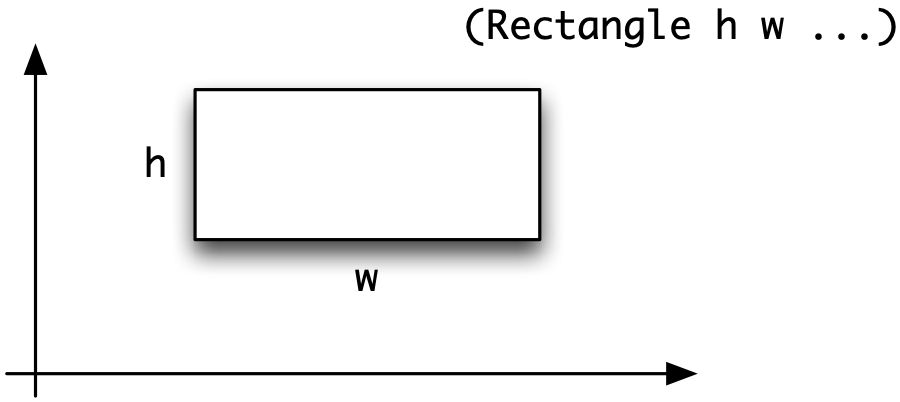

5.11 The type Shape takes no account of the position or orientation of a shape. After deciding how to represent points, how would you modify the original definition of Shape to contain the centre of each object? You can assume that rectangles lie with their sides parallel to the axes, thus:

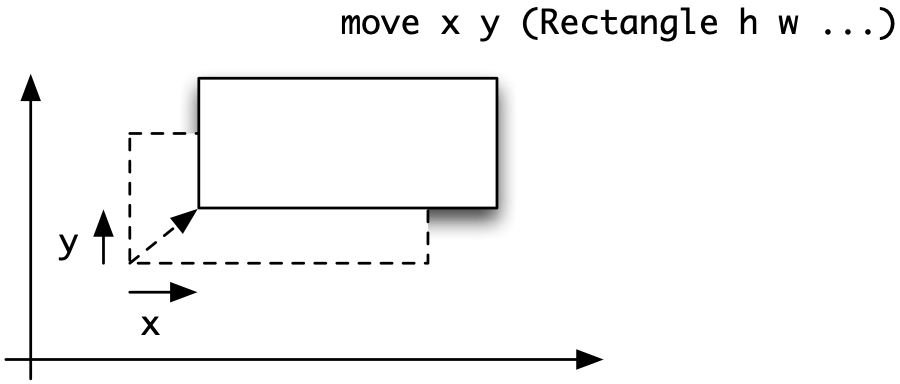

5.12 Calling the new shape type NewShape, define a function

move :: Float -> Float -> NewShape -> NewShape

which moves a shape by the two offsets given:

5.13 Define a function to test whether two NewShapes overlap.

5.14 Some houses have a number; others have a name. How would you implement the type of ‘strings or numbers’ used as a part of an address? Write a function which gives the textual form of one of these objects. Give a definition of a type of names and addresses using the type you have defined.

Our approach to lists

Lists are a remarkably expressive data type. We can represent a text as a list of lines, each of which is a list of words; we can represent a collection of information, like a supermarket bill, as a list of individual items of data; we can represent a collection of readings from a measuring device as a list of Floats, to mention but three potential applications.

At the same time, there are many different things which we can do to lists, some of which first came out in our implementation of Pictures by lists in Introducing functional programming. Given a list we can split it up according to various criteria, we can sort it, select items from it and transform all its members in a particular way. We can combine lists by joining them together or by coalescing corresponding elements. We can combine all the members of a list together – by taking their sum, maximum or conjunction, say – among many other operations. Haskell contains many built-in list functions and operators in the standard prelude Prelude.hs and also various library modules, including List.hs.

Because Haskell has so many list functions built in, we can approach our discussion of lists in two very different ways. We could argue that we should start by defining list-manipulating functions for ourselves, and only use library functions after we have understood their definitions.² On the other hand, we could adopt a ‘toolkit’ approach, and simply discuss the library functions and how they can be used. What we aim to do here is to combine the two approaches, often introducing and using functions before they are defined explicitly, but then looking ‘under the bonnet’ to see how these functions are defined and how we can define other functions for ourselves.

In the remainder of this chapter we introduce some of the facilities for list manipulation within Haskell, particularly list comprehensions which give a flexible notation for transforming and selecting elements of lists. This is followed in Programming with lists with an overview of the list functions available to the Haskell programmer, and in Defining functions over lists we see how to define these and other functions for ourselves.

Lists in Haskell

A list in Haskell is a collection of items from a given type. For every type t there is a Haskell type [t] of lists of elements from t.

[1,2,3,4,1,4] :: [Integer]
[True]        :: [Bool]

We read these as ‘[1,2,3,4,1,4] is a list of Integer’ and ‘[True] is a list of Bool’. String is a synonym for [Char] and the two lists which follow are the same.

['a','a','b'] :: String
"aab"         :: String

We can build lists of items of any particular type, and so we can have lists of functions and lists of lists of numbers, as in

[fastFib,fastFib]  :: [ Integer -> Integer ]
[[12,2],[2,12],[]] :: [ [Integer] ]

As can be seen, the list with elements e1, e2, e3, e4 and e5 is written by enclosing the elements in square brackets, separated by commas, like this

[e1,e2,e3,e4,e5]

As a special case the empty list, [], which contains no items, is an element of every list type.

The order of the items in a list is significant, as is the number of times that an item appears. The three lists of numbers which follow are therefore all different:

[1,2,1,2,2]
[2,1,1,2,2]
[2,1,1,2]

The first two have length 5, while the third has length 4; the first element of the first list is 1, while the first element of the second is 2. A set is another kind of collection in which the ordering of items and the number of occurrences of a particular item are not relevant; we look at sets in Abstract data types.

There are some other ways of writing down lists of numbers, characters and other enumerated types

[n .. m] is the list [n,n+1,…,m]; if n exceeds m, the list is empty.

[2 .. 7]     ~>[2,3,4,5,6,7]
[3.1 .. 7.0] ~>[3.1,4.1,5.1,6.1,7.1]
['a' .. 'm'] ~>"abcdefghijklm"

[n,p .. m] is the list of numbers whose first two elements are n and p and whose last is m, with the numbers ascending in steps of p-n. For example,
```
[7,6 .. 3]       ~>[7,6,5,4,3]
[0.0,0.3 .. 1.0] ~>[0.0,0.3,0.6,0.8999999999999999]
['a','c' .. 'n'] ~>"acegikm"
```
In both cases it can be seen that if the step size does not allow us to reach m exactly, the last item of the list is the element in the sequence that is closest to m, even if it appears to “overshoot” the limit. It can also be the case that rounding errors on Float lead to lists being different from what is anticipated; an example is given in the exercises.

In the next section we turn to a powerful method of writing down lists which we can use to define a variety of list-manipulating functions.

The `String` type

We first introduced the string type String in Characters and strings, and saw there that strings are sequences of characters, that is sequences of Chars. In fact, the String type is a special case of lists,

type String = [Char]

and all the polymorphic prelude functions in Some polymorphic list operations from Prelude.hs. can be used over strings. We saw in Characters and strings how to write the special characters such as newline and tab using the ‘escapes’ ’\n’ and ’\t’, and also how we could join strings using ‘++’: of course, we can use that operator on any list type. Other functions over strings can be found in the library Data.String.

Built into Haskell are the overloaded functions show and read, which convert from a value to a String and vice versa; for instance,

show (2+3)           ~>"5"
show (True || False) ~>"True"

In the opposite direction, the function read is used to convert a string to the value it represents, so that

read "True" ~>True
read "3"    ~>3

In some situations it will not be clear what should be the result type for read – it is then possible to give a type to the application, as in

(read "3") :: Integer

the result of which will be 3 and its type, Integer.

We saw in Characters and strings that show and read could be used to and from String from other types; a full explanation of the types of read and show can be found in Overloading, type classes and type checking.

Exercises

5.15 What value has the expression [0, 0.1 .. 1]? Check your answer in GHCi and explain any discrepancy there might be between the two.

5.16 How many items does the list [2,3] contain? How many does [[2,3]] contain? What is the type of [[2,3]]?

5.17 What is the result of evaluating [2 .. 2]? What about [2,7 .. 4]? Try evaluating [2,2 .. 2]; to interrupt evaluation in GHCi under Windows or Unix you need to type Ctrl-C.

List comprehensions

One of the distinct features of a functional language is the list comprehension notation, which has no parallels in other paradigms.

In a list comprehension we write down a description of a list in terms of the elements of another list. From the first list we generate elements, which we test and transform to form elements of the result. We will describe list comprehensions with a single generator in this section; Section 17.3 covers the general case. Nevertheless, the simple case we look at here is very useful in writing a variety of list-processing programs. We introduce the topic by a series of examples.

Example 3.

1. Suppose that the list ex is [2,4,7], then the list comprehension

[ 2*n | n<-ex]  -- (1)

will be

[4,8,14]

as it contains each of the elements n of the list ex, doubled: 2*n. We can read (1) as saying

‘Take all 2*n where n comes from ex.’

where the symbol <- is meant to resemble the mathematical symbol for being an element, ‘∈’. We can write the evaluation of the list comprehension in a table, thus:

[ 2*n | n <- [2,4,7] ]

  n   =   2   4   7
2*n   =   4   8  14

2. In a similar way,

[ isEven n | n<-ex ] ~>[True,True,False]

if the function isEven has the definition

isEven :: Integer -> Bool
isEven n = (n `mod` 2 == 0)

In list comprehensions n<-ex is called a generator because it generates the data from which the results are built. On the left-hand side of the ‘<-’ there is a variable, n, while on the right-hand side we put the list, in this case ex, from which the elements are taken.

3. We can combine a generator with one or more tests, which are Boolean expressions, thus:

[ 2*n | n <- ex , isEven n , n>3 ]  -- (2)

(2) is paraphrased as

‘Take all 2*n where n comes from ex, n is even and greater than 3.’

Again, we can write the evaluation in tabular form.

[ 2*n | n <- [2,4,7] , isEven n , n>3 ]

       n   =   2   4   7
isEven n   =   T   T   F
     n>3   =   F   T
     2*n   =       8

The result of (2) will therefore be the list [8], as 4 is the only even element of [2,4,7] which is greater than 3.

4. Instead of placing a variable to the left of the arrow ‘<-’, we can put a pattern. For instance,

addPairs :: [(Integer,Integer)] -> [Integer]
addPairs pairList = [ m+n | (m,n) <- pairList ]

Here we choose all the pairs in the list pairList, and add their components to give a single number in the result list. For example,

[ m+n | (m,n) <- [(2,3),(2,1),(7,8)] ]

  m   =   2   2   7
  n   =   3   1   8
m+n   =   5   3  15

giving the result

addPairs [(2,3),(2,1),(7,8)] ~>[5,3,15]

5. We can add tests in such a situation, too:

addOrdPairs :: [(Integer,Integer)] -> [Integer]
addOrdPairs pairList = [ m+n | (m,n) <- pairList , m<n ]

so that with the same input example,

[ m+n | (m,n) <- [(2,3),(2,1),(7,8)] , m<n ]

  m   =   2   2   7
  n   =   3   1   8
m<n   =   T   F   T
m+n   =   5      15

giving

addOrdPairs [(2,3),(2,1),(7,8)] ~>[5,15]

since the second pair in the list, (2,1), fails the test.

6. Note that we can simply test elements, with the effect that we filter some of the elements of a list, according to a Boolean condition. To find all the digits in a string we can say

digits :: String -> String
digits st = [ ch | ch<-st , isDigit ch ]

where the function

isDigit :: Char -> Bool

imported from the module Data.Char is True on those characters which are digits: ’0’, ’1’ up to ’9’.

7. A list comprehension can form a part of a larger function definition. Suppose that we want to check whether all members of a list of integers are even, or all are odd. We can write

allEven xs = (xs == [x | x<-xs, isEven x])
allOdd xs  = ([] == [x | x<-xs, isEven x])

We will see list comprehensions in practice in the next section when we examine a simple library database.

8. The pattern on the left-hand side of an arrow need not match everything in the list: take the example

totalRadii :: [Shape] -> Float
totalRadii shapes = sum [r | Circle r <- shapes]

The effect of this is to match only the circles in the shapes list, and to ignore any other shapes, so that, for example

totalRadii [Circle 2.1, Rectangle 2.1 3.2, Circle 4.7] ~>6.8

This also applies to patterns for built-in types, so we can define

sings :: [[Integer]] -> [Integer]
sings xss = [x | [x] <-xss ]

which extracts all singleton elements from a list of lists:

sings [[],[1],[2,3],[4],[5,6,7],[8]] ~>[1,4,8]

Exercises

5.18 Give a definition of a function

doubleAll :: [Integer] -> [Integer]

which doubles all the elements of a list of integers.

5.19 Give a definition of a function

capitalize :: String -> String

which converts all small letters in a String into capitals, leaving the other characters unchanged. How would you modify this function to give

capitalizeLetters :: String -> String

which behaves in the same way except that all non-letters are removed from the list?

5.20 Define the function

divisors :: Integer -> [Integer]

which returns the list of divisors of a positive integer (and the empty list for other inputs). For instance,

divisors 12 ~>[1,2,3,4,6,12]

A prime number n is a number whose only divisors are 1 and n. Using divisors or otherwise define a function

isPrime :: Integer -> Bool

which checks whether or not a positive integer is prime (and returns False if its input is not a positive integer).

5.21 Define the function

matches :: Integer -> [Integer] -> [Integer]

which picks out all occurrences of an integer n in a list. For instance,

matches 1 [1,2,1,4,5,1] ~>[1,1,1]
matches 1 [2,3,4,6]     ~>[]

Using matches or otherwise, define a function

elem :: Integer -> [Integer] -> Bool

which is True if the Integer is an element of the list, and False otherwise. For the examples above, we have

elem 1 [1,2,1,4,5,1] ~>True
elem 1 [2,3,4,6]     ~>False

Since elem is a prelude function, you need to hide it as described.

5.22 Define a function

onSeparateLines :: [String] -> String

which takes a list of strings and returns a single string which when printed shows the strings on separate lines.

5.23 Give a function

duplicate :: String -> Integer -> String

which takes a string and an integer, n. The result is n copies of the string joined together. If n is less than or equal to 0, the result should be the empty string, "", and if n is 1, the result will be the string itself.

5.24 Give a function

pushRight :: String -> String

which takes a string and forms a string of length linelength by putting spaces at the front of the string. If linelength were 12 then pushRight "crocodile" would be " crocodile". How would you make linelength a parameter of this function?

5.25 Can you criticize the way the previous function is specified? Look for a case in which it is not defined what it should do – it is an exceptional case.

5.26 Define a function

fibTable :: Integer -> String

which produces a table of Fibonacci numbers. For instance, the effect of putStr (fibTable 6) should be

        n        fib n
        0            0
        1            1
        2            1
        3            2
        4            3
        5            5
        6            8

A library database

This section presents a simple model of the loan data kept by a library, and illustrates how list comprehensions are used in practice.

A library uses a database to keep a record of the books on loan to borrowers; we first look at which type to use to model the database, and then look at the functions which extract information from a database. This is followed by a discussion of how to model changes to the database, and we conclude by exploring how the database functions can be tested.

Types

In modelling this situation, we first look at the types of the objects involved. People and books are represented by strings

type Person = String
type Book   = String

The database can be represented in a number of different ways, including the following four possibilities:

We could record each loan as a (Person,Book) pair.
We could define a data type for loans, like this:
```
data Loan = Loan Person Book
```
and then record each loan in the form Loan "Alice" "Asterix".
We could associate with each person the list of books that they have borrowed, using a pair (Person,[Book]).
We could record a list of borrowers with each book, thus: ([Person],Book),

Here we choose to make the database a list of (Person,Book) pairs. If the pair ("Alice" , "Asterix") is in the list, it means that "Alice" has borrowed the book called "Asterix". We therefore define

type Database = [ (Person , Book) ]

We have chosen this representation because it is simple, and also treats people and books in the same way, rather than grouping data in an asymmetrical way.

An example object of this type is

exampleBase :: Database
exampleBase
= [ ("Alice" , "Tintin")  , ("Anna" , "Little Women") ,
    ("Alice" , "Asterix") , ("Rory" , "Tintin") ]

After defining the types of the objects involved, we consider the functions which work over the database.

Given a person, we want to find the book(s) that he or she has borrowed, if any.
Given a book, we want to find the borrower(s) of the book, if any. (It is assumed that there may be more than one copy of any book.)
Given a book, we want to find out whether it is borrowed.
Given a person, we may want to find out the number of books that he or she has borrowed.

Each of these lookup functions will take a Database, and a Person or Book, and return the result of the query. Their types will be

books       :: Database -> Person -> [Book]
borrowers   :: Database -> Book -> [Person]
borrowed    :: Database -> Book -> Bool
numBorrowed :: Database -> Person -> Int

Note that borrowers and books return lists; these can contain zero, one or more items, and so in particular an empty list can signal that a book has no borrowers, or that a person has no books on loan.

Two other functions need to be defined. We need to be able to model a book being loaned to a person and a loaned book being returned. The functions modelling these will take a database, plus the loan information, and return a different database, which is the original with the loan added or removed. These update functions will have type

makeLoan   :: Database -> Person -> Book -> Database
returnLoan :: Database -> Person -> Book -> Database

Defining the lookup functions

We concentrate on the definition of the function

books :: Database -> Person -> [Book]

which forms a model for the other lookup functions. For the exampleBase, we have

books exampleBase "Alice" = [ "Tintin" , "Asterix" ]
books exampleBase "Rory"  = [ "Tintin" ]

How are these found? In the "Alice" case we need to run through the list exampleBase finding all the pairs whose first component is "Alice"; for each of these we return the second component. As a list comprehension, we have

[ book | (person,book) <- exampleBase , person=="Alice" ]

person       =   "Alice"    "Anna"           "Alice"     "Rory"
  book       =   "Tintin"   "Little Women"   "Asterix"   "Tintin"
(person==    =      T          F                T           F
 "Alice")
  book       =   "Tintin"                    "Asterix"

We make this into a general function by saying

books       :: Database -> Person -> [Book]  -- (books.1)
books dBase findPerson
  = [ book | (person,book) <- dBase , person==findPerson ]

Note that in this definition Person is a type while person is a variable of type Person.

As we said at the start, books forms a model for the other lookup functions, which we leave as an exercise.

Variables in list comprehensions

There is an important pitfall to do with the behaviour of variables in list comprehensions. The definition (books.1) of books above might appear to be over-complicated. We might imagine that we could say
books dBase findPerson

  = [ book | (findPerson,book) <- dBase ]  -- (books.2)
The effect of this is to return all the books borrowed by all borrowers, not just the particular borrower findPerson.

The reason for this is that the findPerson in (findPerson,book) is a new variable, and not the variable on the left-hand side of the definition, so in fact (books.2) has the same effect as
books dBase findPerson = [ book | (new,book) <- dBase ]
where it is clear that there is no constraint on the value of new to be equal to findPerson.

Defining the update functions

The database is modified, or updated, by the functions makeLoan and returnLoan. Making a loan is done by adding a pair to the database, which can be done simply by adding an extra pair to the front of the list of pairs.

makeLoan   :: Database -> Person -> Book -> Database
makeLoan dBase pers bk = [ (pers,bk) ] ++ dBase

We have used the ++ operator here to join two lists, namely the one element list [(pers,bk)] and the ‘old’ database dBase.

To return a loan, we need to check through the database, and to remove the pair (pers,bk). We therefore run through all the pairs in the database, and retain those which are not equal to (pers,bk), thus

returnLoan   :: Database -> Person -> Book -> Database
returnLoan dBase pers bk
  = [ pair | pair <- dBase , pair /= (pers,bk) ]

Note that we have used a simple variable pair rather than a pattern to run over the pairs in the dBase. This is because we do not need to deal with the components separately; all we do is check whether the whole pair is equal to the pair (pers,bk). On the other hand we could use a pattern thus:

[ (p,b) | (p,b) <- dBase , (p,b) /= (pers,bk) ]

and get exactly the same result.

As we have defined it, the returnLoan function will remove all pairs (pers,bk) from the database. We will return to this point in the exercises in Section 9.3.

Testing

A Haskell interpreter acts like a calculator, and this is useful when we wish to test functions like those in the library database. Any function can be tested by typing expressions to the GHCi prompt. For example,

makeLoan [] "Alice" "Rotten Romans"

To test more substantial examples, it is sensible to put test data into a script, so we might include the definition of exampleBase as well as various tests

test1 :: Bool
test1 = borrowed exampleBase "Asterix"

test2 :: Database
test2 = makeLoan exampleBase "Alice" "Rotten Romans"

and so on. Adding them to the script means that we can repeatedly evaluate them without having to type them out in full each time. Another device which can help is to use it, which is short for ‘the last expression evaluated’ in GHCi. The following sequence makes a loan, then another, then returns the first.

makeLoan exampleBase "Alice" "Rotten Romans"
makeLoan it "Rory" "Godzilla"
returnLoan it "Alice" "Rotten Romans"

To make the tests repeatable it is possible to define a sequence of Database values, and to describe as HUnit tests using these database values. We leave that as an exercise for the reader.

Testing in QuickCheck

We can use QuickCheck to test the database, too. The Chapter5 module has a number of properties, but here we include two basic ones:

If we loan bk to pers and then lookup the books loaned to pers, then bk should be in that list:

prop_db1 :: Database -> Person -> Book -> Bool

prop_db1 dBase pers bk =
    elem bk loanedAfterLoan == True
         where
           afterLoan = makeLoan dBase pers bk
           loanedAfterLoan = books afterLoan pers

If we return the loan of bk to pers and then lookup the books loaned to pers, then bk should be not in that list:

prop_db2 :: Database -> Person -> Book -> Bool

prop_db2 dBase pers bk =
    elem bk loanedAfterReturn == False
         where
           afterReturn = returnLoan dBase pers bk
           loanedAfterReturn = books afterReturn pers

Exercises

5.27 Go through the calculation of

books exampleBase "Charlie"
books exampleBase "Rory"

5.28 Define the functions borrowers, borrowed and numBorrowed. To define numBorrowed you will probably need the length function which returns the length of a list.

5.29 Give calculations of

returnLoan exampleBase "Alice" "Asterix"
returnLoan exampleBase "Alice" "Little Women"

5.30 How would you have to modify the database functions if you had used the type

data Loan = Loan Person Book

to model individual loans, rather than the tuple type?

5.31 How would you express this as a QuickCheck property:

“Suppose that a particular bk is not loaned to a pers. Now make a random loan of bk2 to pers2. bk should still not be loaned to pers.”

Would you expect this property to hold? If so, why? If not, why not, and how would you modify it so that it does hold?

5.32 Discuss how you would implement the database functions had you used the representation [(Person,[Book])] rather than [(Person,Book)]for the database.

5.33 How would the tests for the database have to be modified to work with the implementation defined in the previous question? Would the QuickCheck properties have to be modified: if so, how? If not, why not?

5.34 Define functions to give more readable output from the database operations of this section.

Summary

This chapter has introduced the structured types of tuples and lists, and explained their differences: in a given tuple type, (t1,...tn) the elements all have the same form, namely (v1,...vn), with each component vi being a member of the corresponding type ti. The list type [t] on the other hand contains elements [e1,...,en] of different lengths but in which all the values ei have the same type t.

Over tuples we introduced the notion of pattern matching – in which a pattern such as (x,y) could be used to stand for an arbitrary member of a pair type – and saw how this led to more readable definitions.

We also saw how we could define our own data types to model product types – like tuples – and sums, which can represent types containing a number of different alternative elements.

The bulk of the chapter was an account of the facilities which Haskell provides for working with lists. These include various ways of writing lists of elements of base type, including ranges like [2,4..12], and list comprehensions, in which the members of a list are generated, tested and transformed from the elements of another list, as exemplified by

[ toUpper ch | ch <- string , isAlpha ch ]

which selects the alphabetic characters from a string, and converts them to upper case, using functions imported from the module Data.Char. We also saw that String is the list type [Char].

In the chapters to come we will use the list functions given here in making our own definitions, as well as finding out about the prelude and library functions for lists, and how they are themselves defined.

We use an Int here rather than an Integer because we can be sure that prices of individual items, and also totals for shopping bills, will always be ‘small’ integers. ↩
This was essentially the approach taken in the first edition of this book. ↩

Keyboard shortcuts

Haskell: The Craft of Functional Programming
