Algebraic types

So far in our discussion of Haskell we have been able to model entities using

• the base types, Int, Float, Bool and Char, and

• composite types: tuple types, (t1,t2,…,tn); list types, [t1]; and function types, (t1 -> t2); where t1, …, tn are themselves types,

• algebraic types, including enumerated types, as introduced in Defining types for ourselves: enumerated types, and product and sum type, first given in Introducing algebraic types.

This gives a wide range of types to use in modelling different domains in Haskell. This chapter completes our coverage of the topic of algebraic types and looks at two extensions in some detail:

• The types can be recursive; we can use the type we are defining, Typename, as (part of) any of the component types, as in the definition of numeric trees “NTrees”:

  data NTree = NilT |
               Node Integer NTree NTree


  an illustration of a tree from NTree is given in An example of a tree of integers.. Recursion in data type definitions gives us lists, trees and many other useful data structures.

• The name of the type being defined can be followed by one or more type variables which may be used on the right-hand side, making the definition polymorphic. An example built-into Haskell is the Maybe type,

  data Maybe a = Nothing | Just a


  which can be used in modelling program errors.

Recursive polymorphic types combine these two ideas, and this powerful mixture provides types which can be reused in many different situations – the built-in type of lists is an example which we have already seen. We’ll look again at the NTree and Maybe types later in this chapter, and other examples are given in the sections which follow.

Algebraic type definitions revisited

Algebraic data type definitions are introduced by the keyword data, followed by the name of the type, an equals sign and then the constructors of the type being defined. The name of the type and the names of constructors begin with capital letters.

The general form of the algebraic type definitions which we have seen so far is

data Typename   -- (Typename)
  = Con1 t11 ... t1k1 |
    Con2 t21 ... t2k2 |
        ....
    Conn tn1 ... tnkn

Each Coni is a constructor, followed by ki types, where ki is a non-negative integer which may be zero. We build elements of the type Typename by applying these constructor functions to arguments of the types given in the definition, so that

Coni vi1 ... viki

will be a member of the type Typename if vij is in tij for j ranging from 1 to ki. Reading the constructors as functions, the definition (Typename) gives the constructors the following types

Coni :: ti1 -> ... -> tiki -> Typename

Of the examples we have seen so far, enumerated types have constructors which take no arguments,

data Season = Spring | Summer | Autumn | Winter

product types have a single constructor,

data People = Person Name Age

and sum types are the most general: they have a number of constructors taking different arguments, as in the definition

data Shape = Circle Float |
             Rectangle Float Float

Definitions over algebraic types use pattern matching both to distinguish between different alternatives and to extract components from particular elements:

area :: Shape -> Float
area (Circle r)      = pi*r*r
area (Rectangle h w) = h*w

As we discussed in A tour of the built-in Haskell classes, Haskell has a number of built-in classes including Eq, Ord, Enum, Show, and Read. When we introduce a new algebraic type it’s possible to derive instances of these classes for the new type, like this:

data Season = Spring | Summer | Autumn | Winter
              deriving (Eq,Ord,Enum,Show,Read)

We can thus compare seasons for equality and order, write expressions of the form [Spring .. Autumn] denoting the list [Spring, Summer, Autumn], and show and read values of the type.

Exercises

14.1 Reimplement the library database of A library database to use an algebraic type like People rather than a pair. Compare the two approaches to this example.

14.2 The library database of A library database is to be extended in the following ways.

• CDs and videos as well as books are available for loan.

• A record is kept of the authors of books as well as their titles. Similar information is kept about CDs, but not about videos.

• Each loan has a period: books one month, CDs one week and videos three days.

Explain how you would modify the types used to implement the database, and how the function types might be changed. The system should perform the following operations. For each case, give the types and definitions of the functions involved.

• Find all items on loan to a given person.

• Find all books, CDs or videos on loan to a particular person.

• Find all items in the database due back on or before a particular day, and the same information for any given person.

• Update the database with loans; the constant today can be assumed to contain today’s date, in a format of your choice.

What other functions would have to be defined to make the system usable? Give their types, but not their definitions.

Recursive algebraic types

Types are often naturally described in terms of themselves. For instance, an integer expression is either a literal integer, like 347, or is given by combining two expressions using an arithmetic operator such as plus or minus, as in (3-1)+3.

data Expr = Lit Integer |
            Add Expr Expr |
            Sub Expr Expr

Similarly, a tree is either nil or is given by combining a value and two sub-trees. For example, the number 12 and the trees in Two trees. are assembled to give the tree in An example of a tree of integers..

As a Haskell type we say

data NTree = NilT |
             Node Integer NTree NTree

Finally, we have already used the type of lists: a list is either empty ( []) or is built from a head and a tail – another list – using the list constructor ‘:’. Lists will provide a good guide to using recursive (and polymorphic) definitions. In particular they suggest how ‘general’ polymorphic higher-order functions over other algebraic types are defined, and how programs are verified. We now look at some examples in more detail.

Expressions

The type Expr gives a model of the simple numerical expressions discussed above. These might be used in implementing a simple numerical calculator, for instance.

data Expr = Lit Integer |
            Add Expr Expr |
            Sub Expr Expr

Some examples are

where the informal expressions are listed in the left-hand column, and their Expr forms in the right. Given an expression, we might want to

• evaluate it;

• turn it into a string, which can then be printed;

• estimate its size – count the operators, say.

Each of these functions will be defined in the same way, using primitive recursion. As the type is itself recursive, it is not a surprise that the functions which handle the type are also recursive. Also, the form of the recursive definitions follows the recursion in the type definition. For instance, to evaluate an operator expression we work out the values of the arguments and combine the results using the operator.

eval :: Expr -> Integer

eval (Lit n)     = n
eval (Add e1 e2) = (eval e1) + (eval e2)
eval (Sub e1 e2) = (eval e1) - (eval e2)

Primitive recursive definitions have two parts:

• At the non-recursive, base cases – (Lit n) here – the value is given outright.

• At the recursive cases, the values of the function at the sub-expressions from which the expression is formed – eval e1 and eval e2 here – can be used in calculating the result.

The show function has a similar form

show :: Expr -> String

show (Lit n) = show n
show (Add e1 e2)
  = "(" ++ show e1 ++ "+" ++ show e2 ++ ")"
show (Sub e1 e2)
  = "(" ++ show e1 ++ "-" ++ show e2 ++ ")"

as does the function to calculate the number of operators in an expression; we leave this as an exercise. Other exercises at the end of the section look at a different representation of expressions for which a separate type is used to represent the different possible operators. Next, we look at another recursive algebraic type, but after that we return to Expr and give an example of a non-primitive-recursive definition of a function to rearrange expressions in a particular way.

Trees of integers

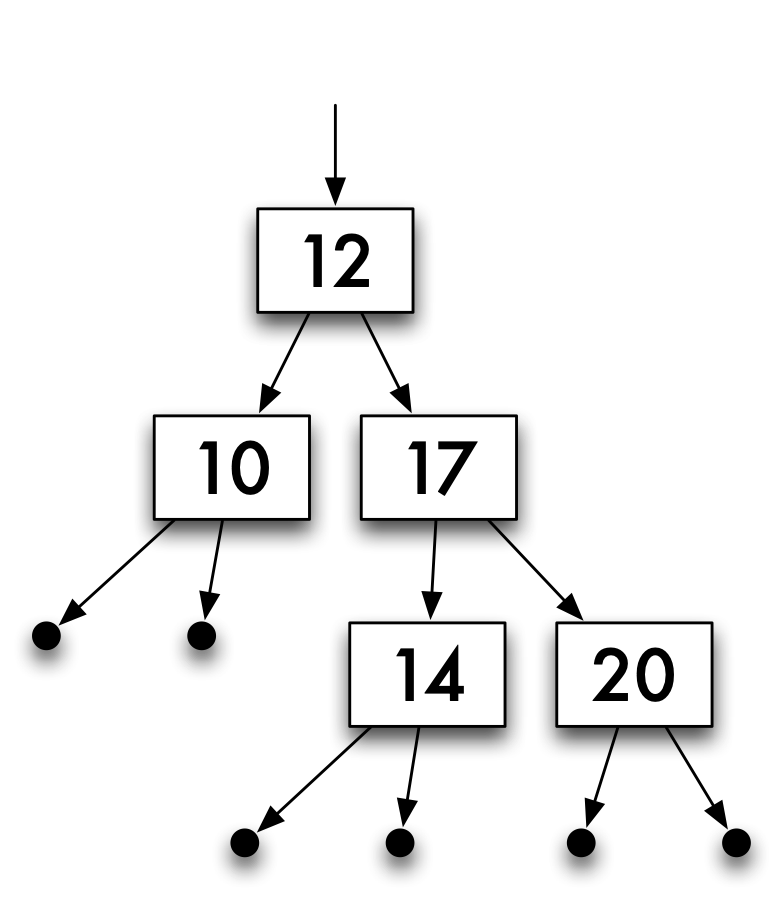

Trees of integers like that in An example of a tree of integers. can be modelled by the type

data NTree = NilT |
             Node Integer NTree NTree

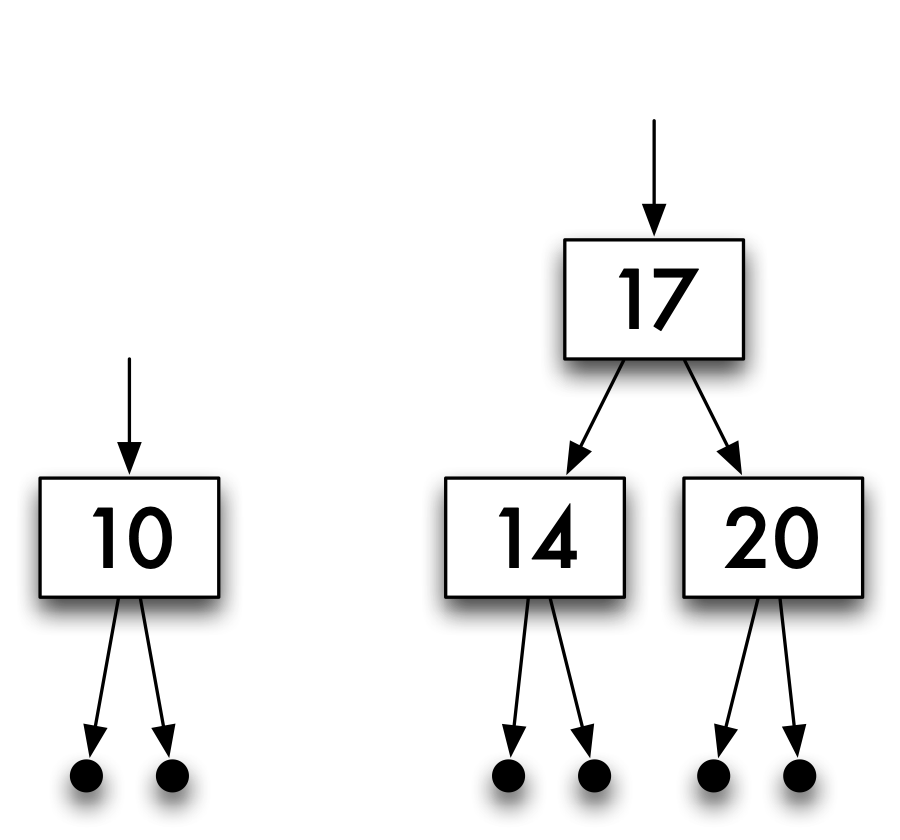

The null tree is given by NilT, and the trees in Two trees. by

Node 10 NilT NilT
Node 17 (Node 14 NilT NilT) (Node 20 NilT NilT)

Definitions of many functions are primitive recursive. For instance,

sumTree,depth :: NTree -> Integer

sumTree NilT           = 0
sumTree (Node n t1 t2) = n + sumTree t1 + sumTree t2

depth NilT             = 0
depth (Node n t1 t2)   = 1 + max (depth t1) (depth t2)

with, for example,

sumTree (Node 3 (Node 4 NilT NilT) NilT) = 7
depth   (Node 3 (Node 4 NilT NilT) NilT) = 2

As another example, take the problem of finding out how many times a number, p say, occurs in a tree. The primitive recursion suggests two cases, depending upon the tree.

• For a null tree, NilT, the answer must be zero.

• For a non-null tree, (Node n t1 t2), we can find out how many times p occurs in the sub-trees t1 and t2 by two recursive calls; we have to make a case split depending on whether p occurs at the particular node, that is depending on whether or not p==n.

The final definition is

occurs :: NTree -> Integer -> Integer

occurs NilT p = 0
occurs (Node n t1 t2) p
  | n==p        = 1 + occurs t1 p + occurs t2 p
  | otherwise   =     occurs t1 p + occurs t2 p

The exercises at the end of the section give a number of other examples of functions defined over trees using primitive recursion. We next look at a particular example where a different form of recursion is used.

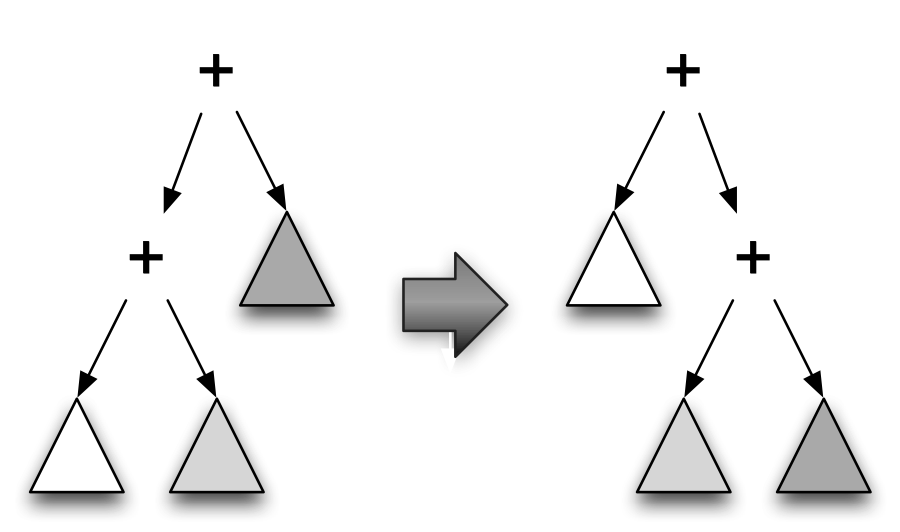

Rearranging expressions

The next example shows a definition which uses a more general recursion than we have seen so far. After showing why the generality is necessary, we argue that the function we have defined is total: it will give a result on all well-defined expressions.

The operation of addition over the integers is associative, so that the way in which an expression is bracketed is irrelevant to its value. We can, therefore, decide to bracket expressions involving ‘+’ in any way we choose. The aim here is to write a program to turn expressions into right bracketed form, as shown in Rearranging additions and in the following table:

(2+3)+4                 2+(3+4)
((2+3)+4)+5             2+(3+(4+5))
((2-((6+7)+8))+4)+5    (2-(6+(7+8)))+(4+5)

What is the program to do? The main aim is to spot occurrences of

Add (Add e1 e2) e3   -- (AddL)

and to transform them to

Add e1 (Add e2 e3)  -- (AddR)

so a first attempt at the program might say

try (Add (Add e1 e2) e3)
  = Add (try e1) (Add (try e2) (try e3))
try ...

which is primitive recursive: on the right-hand side of their definition the function try is only used on sub-expressions of the argument. This function will have the effect of transforming (AddL) to (AddR), but unfortunately (AddExL) will be sent to (AddExR):

((2+3)+4)+5   -- (AddExL)
(2+3)+(4+5)  -- (AddExR)

The problem is that in transforming (AddL) to (AddR) we may produce another pattern we are looking for at the top level: this is precisely what happens when (AddExL) is transformed to (AddExR). We therefore have to call the function again on the result of the rearrangement

assoc :: Expr -> Expr

assoc (Add (Add e1 e2) e3)
  = assoc (Add e1 (Add e2 e3))   -- (Add.1)

The other cases in the definition make sure that the parts of an expression are rearranged as they should be.

assoc (Add e1 e2)
  = Add (assoc e1) (assoc e2)   -- (Add.2)
assoc (Sub e1 e2)
  = Sub (assoc e1) (assoc e2)
assoc (Lit n)
  = Lit n

The equation (Add.2) will only be applied to the cases where (Add.1) does not apply – this is when e1 is either a Sub or a Lit expression. This is always the case in pattern matching; the first applicable equation is used.

When we use primitive recursion we can be sure that the recursion will terminate to give an answer: the recursive calls are only made on smaller expressions and so, after a finite number of calls to the function, a base case will be reached.

The assoc function is more complicated, and we need a more subtle argument to see that the function will always give a result. The equation (Add.1) is the tricky one, but intuitively, we can see that some progress has been made – some of the ‘weight’ of the tree has moved from left to right. In particular, one addition symbol has swapped sides. None of the other equations moves a plus in the other direction, so that after applying (Add.1) a finite number of times, there will be no more exposed addition symbols at the top level of the left-hand side. This means that the recursion cannot go on indefinitely, and so the function always leads to a result.

In Reasoning about algebraic types we’ll look at specifying QuickCheck properties for functions over algebraic types, including assoc, as well as showing how some of these can be proved by induction.

Syntax: infix constructors

We have seen that functions can be written in infix form; this also applies to constructors. We can, for example, redefine the function assoc thus:

assoc ((e1 `Add` e2) `Add` e3)
  = assoc (e1 `Add` (e2 `Add` e3))
 ...

using the infix form of the constructor, given by surrounding it with back-quotes.

When an expression like this is shown, it appears in prefix form, so that the expression (Lit 3) ‘Add‘ (Lit 4) appears as

Add (Lit 3) (Lit 4)

In a data definition we can define Haskell operators which are themselves constructors. These constructors have the same syntax as operator symbols, except that their first character must be a ‘:’, which is reminiscent of ‘:’, itself an infix constructor. For our type of integer expressions, we might define

data Expr = Lit Integer |
            Expr :+: Expr |
            Expr :-: Expr

When an expression involving operator constructors is printed, the constructors appear in the infix position, unlike the quoted constructors above.

It is left as an exercise to complete the redefinition of functions over Expr under this redefinition of the Expr type.

Mutual recursion

In describing one type, it is often useful to use others; these in turn may refer back to the original type: this gives a pair of mutually recursive types. A description of a person might include biographical details, which in turn might refer to other people. For instance:

data Person = Adult Name Address Bio |
              Child Name
data Bio    = Parent String [Person] |
              NonParent String

In the case of a parent, the biography contains some text, as well as a list of their children, as elements of the type Person.

Suppose that we want to define a function which shows information about a person as a string. Showing this information will require us to show some biographical information, which itself contains further information about people. We thus have two mutually recursive functions:

showPerson (Adult nm ad bio)
  = show nm ++ show ad ++ showBio bio
  ...
showBio (Parent st perList)
  = st ++ concat (map showPerson perList)
  ...

Exercises

14.3 Give calculations of

eval (Lit 67)
eval (Add (Sub (Lit 3) (Lit 1)) (Lit 3))
show (Add (Lit 67) (Lit (-34)))

14.4 Define the function

size :: Expr -> Integer

which counts the number of operators in an expression.

14.5 Add the operations of multiplication and integer division to the type Expr, and redefine the functions eval, show and size to include these new cases. What does your definition of eval do when asked to perform a division by zero?

14.6 Instead of adding extra constructors to the Expr type, as in the previous question, it is possible to factor the definition thus:

data Expr = Lit Integer |
            Op Ops Expr Expr

data Ops  = Add | Sub | Mul | Div

Show how the functions eval, show and size are defined for this type, and discuss the changes you have to make to your definitions if you add the extra operation Mod for remainder on integer division.

14.7 Give line-by-line calculations of

sumTree (Node 3 (Node 4 NilT NilT) NilT)
depth   (Node 3 (Node 4 NilT NilT) NilT)

14.8 Complete the redefinition of functions over Expr after it has been defined using the infix constructors :+: and :-:.

14.9 Define functions to return the left- and right-hand sub-trees of an NTree.

14.10 Define a function to decide whether a number is an element of an NTree.

14.11 Define functions to find the maximum and minimum values held in an NTree.

14.12 A tree is reflected by swapping left and right sub-trees, recursively. Define a function to reflect an NTree. What is the result of reflecting twice,reflect . reflect?

14.13 Define functions

collapse, sort :: NTree -> [Integer]

which turn a tree into a list. The function collapse should enumerate the left sub-tree, then the value at the node and finally the right sub-tree; sort should sort the elements in ascending order. For instance,

collapse (Node 3 (Node 4 NilT NilT) NilT) = [4,3]
sort     (Node 3 (Node 4 NilT NilT) NilT) = [3,4]

14.14 Complete the definitions of showPerson and showBio which were left incomplete in the text.

14.15 It is possible to extend the type Expr so that it contains conditional expressions, If b e1 e2, where e1 and e2 are expressions, and b is a Boolean expression, a member of the type BExp,

data Expr = Lit Integer |
            Op Ops Expr Expr |
            If BExp Expr Expr

The expression

If b e1 e2

has the value of e1 if b has the value True and otherwise it has the value of e2.

data BExp = BoolLit Bool |
            And BExp BExp |
            Not BExp |
            Equal Expr Expr |
            Greater Expr Expr

The five clauses here give

• Boolean literals, BoolLit True and BoolLit False.

• The conjunction of two expressions; it is True if both sub-expressions have the value True.

• The negation of an expression. Not be has value True if be has the value False.

• Equal e1 e2 is True when the two numerical expressions have equal values.

• Greater e1 e2 is True when the numerical expression e1 has a larger value then e2.

Define the functions

eval  :: Expr -> Integer
bEval :: BExp -> Bool

by mutual recursion, and extend the function show to show the redefined type of expressions.

Polymorphic algebraic types

Algebraic type definitions can contain the type variables a, b and so on, defining polymorphic types. The definitions are as before, with the type variables used in the definition appearing after the type name on the left-hand side of the definition. A simple example is

data Pairs a = Pr a a

and example elements of the type are

Pr 2 3    :: Pairs Integer
Pr [] [3] :: Pairs [Int]
Pr [] []  :: Pairs [a]

A function to test the equality of the two halves of a pair is given by

equalPair :: Eq a => Pairs a -> Bool
equalPair (Pr x y) = (x==y)

The remainder of this section explores a sequence of further examples.

Lists

The built-in type of lists can be given by a definition like

infixr 5 :::

data List a = NilL | a ::: (List a)
              deriving (Eq,Ord,Show,Read)

where the syntax [a], [] and ‘:’ is used for List a, NilList and :::. Note that we have given a fixity declaration for ::: to give it the same fixity and associativity as :, we can therefore write expressions like this:

*Chapter14> 2+3 ::: 4+5 ::: NilL
5 ::: (9 ::: NilL)

much as lists are written with :.

Lists form a useful paradigm for recursive polymorphic types. In particular, we can see the possibility of defining useful families of functions over such types, and the way in which program verification can proceed by induction over the structure of a type.

Binary trees

The trees of Recursive algebraic types carry numbers at each node; there is nothing special about numbers, and we can equally well say that they have elements of an arbitrary type at the nodes:

data Tree a = Nil | Node a (Tree a) (Tree a)
              deriving (Eq,Ord,Show,Read)

The definitions of depth and occurs carry over unchanged:

depth :: Tree a -> Integer
depth Nil            = 0
depth (Node n t1 t2) = 1 + max (depth t1) (depth t2)

as do many of the functions defined in the exercises at the end of Recursive algebraic types. One of these is the function collapsing a tree into a list. This is done by visiting the elements of the tree ‘inorder’, that is visiting first the left sub-tree, then the node itself, then the right sub-tree, thus:

collapse :: Tree a -> [a]
collapse Nil = []
collapse (Node x t1 t2)
  = collapse t1 ++ [x] ++ collapse t2

For example,

collapse (Node 12
               (Node 34 Nil Nil)
               (Node 3 (Node 17 Nil Nil) Nil))
  = [34,12,17,3]

Various higher-order functions are definable, also,

mapTree :: (a -> b) -> Tree a -> Tree b
mapTree f Nil = Nil
mapTree f (Node x t1 t2)
  = Node (f x) (mapTree f t1) (mapTree f t2)

We shall return to trees in Search trees, where particular ‘search’ trees form a case study.

The union type, Either

Type definitions can take more than one parameter. We saw earlier the example of the type whose elements were either a name or a number. In general we can form a type whose elements come either from a or from b:

data Either a b = Left a | Right b
                  deriving (Eq,Ord,Read,Show)

Members of the ‘union’ or ‘sum’ type are (Left x), with x::a, and (Right y) with y::b. The ‘name or number’ type is given by Either String Int and

Left "Duke of Prunes" :: Either String Int
Right 33312           :: Either String Int

We can tell whether an element is in the first half of the union by

isLeft :: Either a b -> Bool
isLeft (Left _)  = True
isLeft (Right _) = False

To define a function from Either a b to Int, say, we have to deal with two cases,

fun :: Either a b -> Int
fun (Left x)  = ... x ...
fun (Right y) = ... y ...

In the first case, the right-hand side takes x to an Int, so is given by a function from a to Int; in the second case y is taken to an Int, thus being given by a function from b to Int.

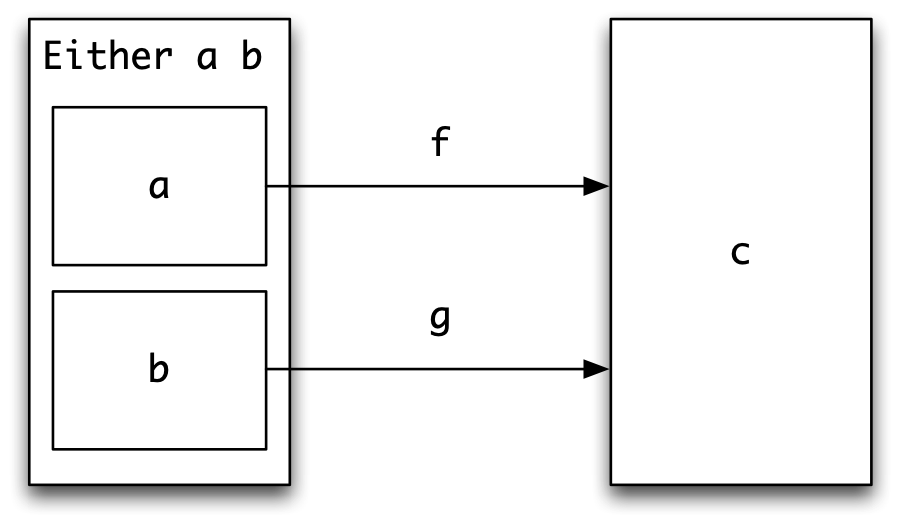

Guided by this, we can give a higher-order function which joins together two functions defined on a and b to a function on Either a b. The definition follows, and is illustrated in Joining together functions..

either :: (a -> c) -> (b -> c) -> Either a b -> c

either f g (Left x)  = f x
either f g (Right y) = g y

If we have a function f::a -> c and we wish to apply it to an element of Either a b, there is a problem: what do we do if the element is in the right-hand side of the Either type? A simple answer is to raise an error

applyLeft :: (a -> c) -> Either a b -> c
applyLeft f (Left x)  = f x
applyLeft f (Right _) = error "applyLeft applied to Right"

but in the next section we shall explore other ways of handling errors in more detail. Exercises

14.16 Investigate which of the functions over trees discussed in the exercises of Recursive algebraic types can be made polymorphic.

14.17 Define a function twist which swaps the order of a union

twist :: Either a b -> Either b a

What is the effect of (twist . twist)?

14.18 How would you define applyLeft using the function either?

14.19 Show that any function of type a -> b can be transformed into functions of type

a -> Either b c
a -> Either c b

14.20 How could you generalize either to join so that it has type

join :: (a -> c) -> (b -> d) -> Either a b -> Either c d

You might find the answer to the previous exercise useful here, if you want to define join using either.

The trees defined in the text are binary: each non-nil tree has exactly two sub-trees. We can instead define general trees with an arbitrary list of sub-trees, thus:

data GTree a = Leaf a | Gnode [GTree a]

The exercises which follow concern these trees.

Exercises

14.21 Define functions

• to count the number of leaves in a GTree;

• to find the depth of a GTree;

• to sum a numeric GTree Int;

• to find whether an element appears in a GTree;

• to map a function over the elements at the leaves of a GTree; and

• to flatten a GTree to a list.

In each case give the type of the function that you have defined.

14.22 How is the completely empty tree represented as a GTree?

Modelling program errors

How should a program deal with a situation which ought not to occur? Examples of such situations include

• attempts to divide by zero, to take the square root of a negative number, and other arithmetical transgressions;

• attempts to take the head of an empty list – this is a special case of a definition over an algebraic type from which one case (here the empty list) is absent.

This section examines the problem, giving three approaches of increasing sophistication. The simplest method is to stop computation and to report the source of the problem. This is indeed what the Haskell system does in the cases listed above, and we can do this in functions we define ourselves using the error function,

error :: String -> a

An attempt to evaluate the expression error "Circle with negative radius" in GHCi results in the message

*** Exception: Circle with negative radius

being printed and computation stopping.

The problem with this approach is that all the useful information in the computation is lost; instead of this, the error can be dealt with in some way without stopping computation completely. Two approaches suggest themselves, and we look at them in turn now.

Dummy values

The function tail is supposed to give the tail of a list, and it gives an error message on an empty list:

tail :: [a] -> [a]
tail (_:xs) = xs
tail []     = error "Prelude.tail: empty list"

We could redefine it to say

tl :: [a] -> [a]
tl (_:xs) = xs
tl []     = []

Now, an attempt to take the tail of any list will succeed. In a similar way we could say

divide :: Integer -> Integer -> Integer
divide n m
  | (m /= 0)    = n `div` m
  | otherwise   = 0

so that division by zero gives some answer. For tl and divide there have been obvious choices about what the value in the ‘error’ case should be; for head there is not, and instead we can supply an extra parameter to head, which is to be used in the case of the list being empty.

hd :: a -> [a] -> a
hd y (x:_) = x
hd y []    = y

This approach is completely general; if a function f (of one argument, say) usually raises an error when cond is True, we can define a new function

fErr y x
  | cond        = y
  | otherwise   = f x

This approach works well in many cases; the only drawback is that we have no way of telling when an error has occurred, since we may get the result y from either the error or the ‘normal’ case. Alternatively we can use an error type to trap and process errors; this we look at now.

Error types

The previous approach works by returning a dummy value when an error has occurred. Why not instead return an error value as a result? We define the type

data Maybe a = Nothing | Just a
               deriving (Eq,Ord,Read,Show)

which is effectively the type a with an extra value Nothing added. We can now define a division function errDiv thus

errDiv :: Integer -> Integer -> Maybe Integer
errDiv n m
  | (m /= 0)    = Just (n `div` m)
  | otherwise   = Nothing

and in the general case, where f gives an error when cond holds,

fErr x
  | cond        = Nothing
  | otherwise   = Just (f x)

The results of these functions are now not of the original output type, a say, but of type Maybe a. These Maybe types allow us to raise an error, potentially. We can do two things with a potential error which has been raised

• we can transmit the error through a function, the effect of mapMaybe;

• we can trap an error, the role of maybe.

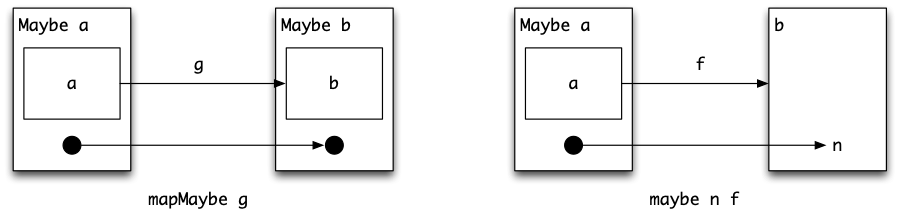

These two operations are illustrated in Error-handling functions., and we define them now.

The function mapMaybe transmits an error value through the application of the function g. Suppose that g is a function of type a -> b, and that we are to lift it to operate on the type Maybe a. In the case of an argument Just x, g can be applied to the x to give a result, g x, of type b; this is put into Maybe b by applying the constructor function Just. On the other hand, if Nothing is the argument then Nothing is the result.

mapMaybe :: (a -> b) -> Maybe a -> Maybe b

mapMaybe g Nothing  = Nothing
mapMaybe g (Just x) = Just (g x)

In trapping an error, we aim to return a result of type b, from an input of type Maybe a; we have two cases to deal with

• in the Just case, we apply a function from a to b;

• in the Nothing case, we have to give the value of type b which is to be returned. (This is rather like the value we supplied to hd earlier.)

The higher-order function which achieves this is maybe, whose arguments n and f are used in the Nothing and Just cases respectively.

maybe :: b -> (a -> b) -> Maybe a -> b

maybe n f Nothing  = n
maybe n f (Just x) = f x

We can see the functions mapMaybe and maybe in action in the examples which follow. In the first, a division by zero leads to a Nothing which passes through the lifting to be trapped – 56 is therefore returned:

maybe 56 (1+) (mapMaybe (*3) (errDiv 9 0))
= maybe 56 (1+) (mapMaybe (*3) Nothing)
= maybe 56 (1+) Nothing
= 56

In the second, a normal division returns a Just 9. This is multiplied by three, and the maybe at the outer level adds one and removes the Just:

maybe 56 (1+) (mapMaybe (*3) (errDiv 9 1))
= maybe 56 (1+) (mapMaybe (*3) (Just 9))
= maybe 56 (1+) (Just 27)
= 1 + 27
= 28

The advantage of the approach discussed here is that we can first define the system without error handling, and afterwards add the error handling, using the mapMaybe and maybe functions together with the modified functions to raise the error. As we have seen numerous times already, separating a problem into two parts has made the solution of each, and therefore the whole, more accessible.

We revisit the Maybe type in Monads: languages for functional programming where we see that it is an example of a more general programming structure, a monad. In particular there we examine the relationship between the function mapMaybe and the map function over lists.

Exercises

14.23 Using the functions mapMaybe and maybe, or otherwise, define a function

process :: [Int] -> Int -> Int -> Int

so that process xs n m takes the nth and mth items of the list of numbers xs, and returns their sum. Your function should return 0 if either of the numbers is not one of the indices of the list: for a list of length p, the indices are 0, …, p-1 inclusive.

14.24 Discuss the advantages and disadvantages of the three approaches to error handling presented in this section.

14.25 What are the values of type Maybe (Maybe a)? Define a function

squashMaybe :: Maybe (Maybe a) -> Maybe a

which will ‘squash’ Just (Just x) to Just x and all other values to Nothing.

14.26 In a similar way to mapMaybe, define the function

composeMaybe :: (a -> Maybe b) ->
                (b -> Maybe c) ->
                (a -> Maybe c)

which composes two error-raising functions. How could you use mapMaybe, the function composition operator and the squash function to define composeMaybe?

14.27 The Maybe type could be generalized to allow messages to be carried in the Nothing part, thus:

data Err a = OK a | Error String

How do the definitions of mapMaybe, maybe and composeMaybe have to be modified to accommodate this new definition?

Design with algebraic data types

Algebraic data types provide us with a powerful mechanism for modelling types which occur both in problems themselves, and within the programs designed to solve them. In this section we suggest a three-stage method for finding the appropriate algebraic type definitions. We apply it in two examples: finding the ‘edit distance’ between two words, and a simulation problem.

An important moral of the discussion here is that we can start to design data types independently of the program itself. For a system of any size we should do this, as we will be more likely to succeed if we can think about separate parts of the system separately.

We shall have more to say about design of data types in the next two chapters.

Edit distance: problem statement

In discussing the stages of design, we follow the example of finding the edit distance between two strings. This is the shortest sequence of simple editing operations which can take us from one string to the other.

The example is a version of a practical problem: in keeping a display (of windows or simple text) up-to-date, the speed with which updates can be done is crucial. It is therefore desirable to be able to make the updates from as few elementary operations as possible; this is what the edit distance program achieves in a different context.

We suppose that there are five basic editing operations on a string. We can change one character into another, copy a character without modifying it, delete or insert a character and delete (kill) to the end of the string. We also assume that each operation has the same cost, except a copy which is free.

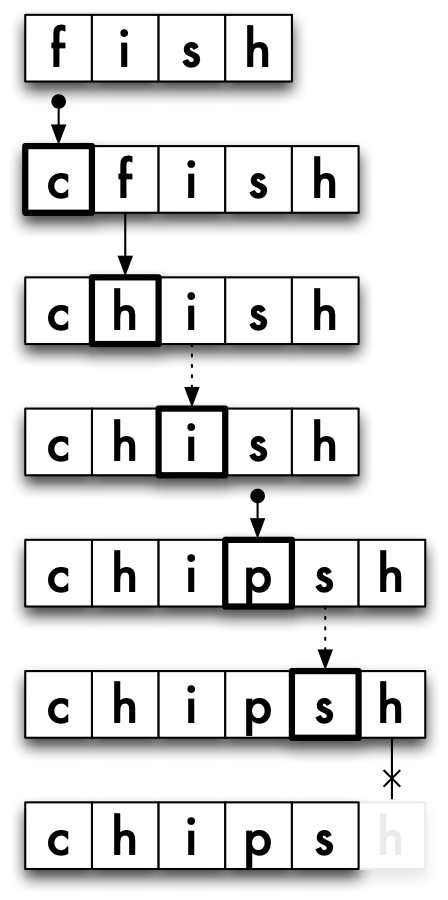

To turn the string "fish" into "chips", we could kill the whole string, then insert the characters one-by-one, at a total cost of six. An optimal solution will copy as much of the string as possible, and is given by

• inserting the character ’c’,

• changing ’f’ to ’h’,

• copying ’i’,

• inserting ’p’,

• copying ’s’, and finally

• deleting the remainder of the string, "h".

In the remainder of this section we design a type to represent the editing steps, and after looking at another example of data type design, define a function to give an optimal sequence of editing steps from one string to another.

The analysis here can also be used to describe the difference between two lists of arbitrary type. If each item is a line of a file, the behaviour of the function is similar to the Unix diff utility, which is used to give the difference between two text files.

Design stages in the edit distance problem

Now we look at the three stages of algebraic type definition in detail.

• First we have to identify the types of data involved. In the example, we have to define

  data Edit = ...


  which represents the editing operations.

• Next, we have to identify the different sorts of data in each of the types. Each sort of data is given by a constructor. In the example, we can change, copy, delete or insert a character and delete (kill) to the end of the string. Our type definition is therefore

  data Edit = Change ... |
              Copy ... |
              Delete ... |
              Insert ... |
              Kill ...


  The ‘...’ show that we have not yet said anything about the types of the constructors.

• Finally, for each of the constructors, we need to decide what its components or arguments are. Some of the constructors – Copy, Delete and Kill – require no information; the others need to indicate the new character to be inserted, so

  data Edit = Change Char |
              Copy |
              Delete |
              Insert Char |
              Kill
              deriving (Eq,Show)


  This completes the definition.

We now illustrate how other type definitions work in a similar way, before returning to give a solution to the ‘edit distance’ problem.

Simulation

Suppose we want to model, or simulate, how the queues in a bank or Post Office behave; perhaps we want to decide how many bank clerks need to be working at particular times of the day. Our system will take as input the arrivals of customers, and give as output their departures. Each of these can be modelled using a type.

• Inmess is the type of input messages. At a given time, there are two possibilities:

  • No-one arrives, represented by the 0-ary constructor No;

  • Someone arrives, represented by the constructor Yes. This will have components giving the arrival time of the customer, and the amount of time that will be needed to serve them.

  Hence we have

  data Inmess = No | Yes Arrival Service

  type Arrival = Integer
  type Service = Integer


• Similarly, we have Outmess, the type of output messages. Either no-one leaves (None), or a person is discharged (Discharge). The relevant information they carry is the time they have waited, together with when they arrived and their service time. We therefore define

  data Outmess = None | Discharge Arrival Wait Service

  type Wait = Integer


We return to the simulation example in Abstract data types.

Edit distance: solution

The problem is to find the lowest-cost sequence of edits to take us from one string to another. We can begin the definition thus:

transform :: String -> String -> [Edit]

transform [] [] = []

To transform the non-empty string st to [], we simply have to Kill it, while to transform [] to st we have to Insert each of the characters in turn:

transform xs [] = [Kill]
transform [] ys = map Insert ys

In the general case, we have a choice: should we first use Copy, Delete, Insert or Change? If the first characters of the strings are equal we should copy; but if not, there is no obvious choice. We therefore try all possibilities and choose the best of them:

transform (x:xs) (y:ys)
  | x==y        = Copy : transform xs ys
  | otherwise   = best [ Delete   : transform xs (y:ys) ,
                         Insert y : transform (x:xs) ys ,
                         Change y : transform xs ys ]

How do we choose the best sequence? We choose the one with the lowest cost.

best :: [[Edit]] -> [Edit]
best [x]   = x
best (x:xs)
  | cost x <= cost b    = x
  | otherwise           = b
      where
      b = best xs

The cost is given by charging one for every operation except copy, which is equivalent to ‘leave unchanged’.

cost :: [Edit] -> Int
cost = length . filter (/=Copy)

Testing transform using QuickCheck

We can use to QuickCheck to test two of the fundamental properties of the transform function.

First, it should produce a list whose cost is no bigger than the cost of building up the target string letter by letter, and then killing the original string, a cost of length ys + 1: we can state this as the property

prop_transformLength :: String -> String -> Property

prop_transformLength xs ys =
    length (xs++ys) <= 15 ==>
        cost (transform xs ys) <= length ys + 1

where we have guarded the test on the overall length of the two lists, for efficiency reasons.

Secondly, the sequence of edits given by transform xs ys should indeed take the string xs to ys when it is applied, so

prop_transform xs ys =
    length (xs++ys) <= 15 ==>
        edit (transform xs ys) xs == ys

We leave it as an exercise for the reader to define the function

edit :: [Edit] -> String -> String

so that, for instance

edit [Insert 'c',Change 'h',Copy,Insert 'p',Copy,Kill] "fish"
   ~> "chips"

Exercises

14.28 How would you modify the edit distance program to accommodate a Swap operation, which can be used to transform "abxyz" to "baxyz" in a single step?

14.29 Write a definition of the edit function described above, which when given a list of edits and a string st, returns the sequence of strings given by applying the edits to st in sequence.

14.30 Can you give other QuickCheck properties that you would expect the edit distance program to have? You could think, for example, about particular sorts of inputs, e.g. where the input is an initial segment of the output.

14.31 Give a calculation of transform "cat" "am". What do you conclude about the efficiency of the transform function?

14.32 [Harder] Can you give a more efficient implementation of the function calculating the transform?

The remaining questions are designed to make you think about how data types are designed. These questions are not intended to have a single ‘right’ answer, rather you should satisfy yourself that you have adequately represented the types which appear in your informal picture of the problem.

Exercises

14.33 It is decided to keep a record of vehicles which will use a particular car park. Design an algebraic data type to represent them.

14.34 If you knew that the records of vehicles were to be used for comparative tests of fuel efficiency, how would you modify your answer to the last question?

14.35 Discuss the data types you might use in a database of students’ marks for classes and the like. Explain the design of any algebraic data types that you use.

14.36 What data types might be used to represent the objects which can be drawn using an interactive drawing program? To give yourself more of a challenge, you might like to think about grouping of objects, multiple copies of objects, and scaling.

Algebraic types and type classes

We have reached a point where it is possible to explore rather more substantial examples of type classes, first introduced in Overloading, type classes and type checking.

Movable objects

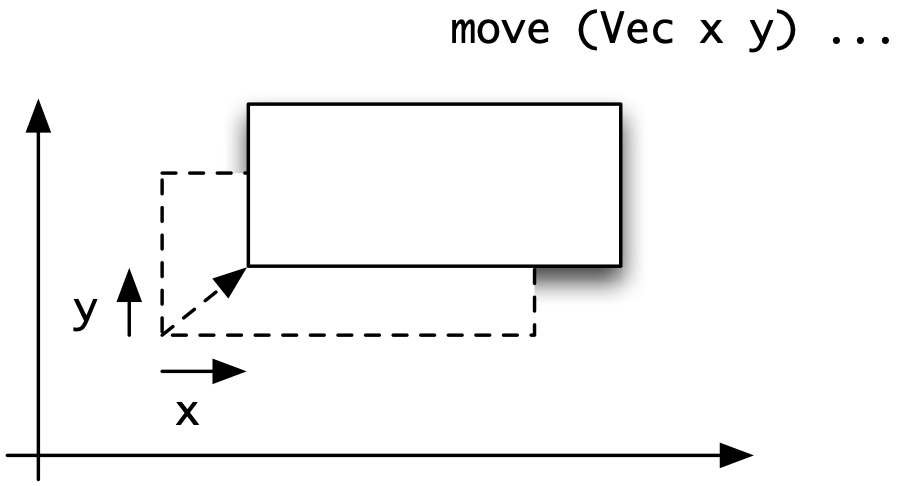

data Vector = Vec Float Float

class Movable a where
  move      :: Vector -> a -> a
  reflectX  :: a -> a
  reflectY  :: a -> a
  rotate180 :: a -> a
  rotate180 = reflectX . reflectY

data Point = Point Float Float
             deriving Show

instance Movable Point where
  move (Vec v1 v2) (Point c1 c2) = Point (c1+v1) (c2+v2)
  reflectX (Point c1 c2)  = Point c1 (-c2)
  reflectY (Point c1 c2)  = Point (-c1) c2
  rotate180 (Point c1 c2) = Point (-c1) (-c2)

data Figure = Line Point Point |
              Circle Point Float
              deriving Show

instance Movable Figure where
  move v (Line p1 p2) = Line (move v p1) (move v p2)
  move v (Circle p r) = Circle (move v p) r

  reflectX (Line p1 p2) = Line (reflectX p1) (reflectX p2)
  reflectX (Circle p r) = Circle (reflectX p) r

  reflectY (Line p1 p2) = Line (reflectY p1) (reflectY p2)
  reflectY (Circle p r) = Circle (reflectY p) r

instance Movable a => Movable [a] where
  move v   = map (move v)
  reflectX = map reflectX
  reflectY = map reflectY

We start by building a class of types whose members are geometrical objects in two dimensions. The operations of the class are those to move the objects in various different ways.

We now work through the definitions, which are illustrated in Movable objects (1). and Movable objects (2).. Some moves will be dictated by vectors, so we first define

data Vector = Vec Float Float

The class definition itself is

class Movable a where
  move      :: Vector -> a -> a
  reflectX  :: a -> a
  reflectY  :: a -> a
  rotate180 :: a -> a
  rotate180 = reflectX . reflectY

and it shows the ways in which an object can be moved. First it can be moved by a vector, as in the diagram below.

data Name a = Pair a String

exam1 = Pair (Point 0.0 0.0) "Dweezil"

instance Named (Name a) where  -- (1)
  lookName (Pair obj nm) = nm
  giveName nm (Pair obj _) = (Pair obj nm)

mapName :: (a -> b) -> Name a -> Name b

mapName f (Pair obj nm) = Pair (f obj) nm

instance Movable a => Movable (Name a) where  -- (2)
  move v   = mapName (move v)
  reflectX = mapName reflectX
  reflectY = mapName reflectY

class (Movable b, Named b) => NamedMovable b  -- (3)

instance Movable a => NamedMovable (Name a)

We can also reflect an object in the x-axis (the horizontal axis) or the y-axis (the vertical), or rotate a figure through 180° around the origin (the point where the axes meet). The default definition of rotate180 works by reflecting first in the y-axis and then the x, as we did with the Picture type in Introducing functional programming.

We can now define a hierarchy of movable objects; first we have the Point,

data Point = Point Float Float
             deriving Show

To make Point an instance of Movable we have to give definitions of move, reflectX and reflectY over the Point type.

move (Vec v1 v2) (Point c1 c2) = Point (c1+v1) (c2+v2)

Here we can see that the move is achieved by adding the components v1 and v2 to the coordinates of the point. Reflection is given by changing the sign of one of the coordinates

reflectX (Point c1 c2) = Point c1 (-c2)
reflectY (Point c1 c2) = Point (-c1) c2

For this instance we override the default definition of rotate180 by changing the sign of both coordinates. This is a more efficient way of achieving the same transformation than the default definition.

rotate180 (Point c1 c2) = Point (-c1) (-c2)

Using the type of points we can build figures:

data Figure = Line Point Point |
              Circle Point Float

and in the instance declaration of Movable for Figure given in Movable objects (2). we use the corresponding operations on Point; for example,

move v (Line p1 p2) = Line (move v p1) (move v p2)
move v (Circle p r) = Circle (move v p) r

This same approach works again when we consider a list of movable objects:

instance Movable a => Movable [a] where
  move v   = map (move v)
  reflectX = map reflectX

and so on. Using overloading in this way has a number of advantages.

• The code is much easier to read: at each point we write move, rather than movePoint, and so on.

• We can reuse definitions; the instance declaration for Movable [a] makes lists of any sort of movable object movable themselves. This includes lists of points and lists of figures. Without overloading we would not be able to achieve this.

Named objects

Many forms of data contain some sort of name, a String which identifies the object in question. What do we expect to be able to do with a value of such a type?

• We should be able to identify the name of a value, and

• we ought to be able to give a new name to a value.

These operations are embodied in the Named class:

class Named a where
  lookName :: a -> String
  giveName :: String -> a -> a

and an example of Named types is given by

data Name a = Pair a String

the one-constructor type whose two components are of type a and String. The instance declaration for this type is

instance Named (Name a) where  -- (1)
  lookName (Pair obj nm) = nm
  giveName nm (Pair obj _) = (Pair obj nm)

Putting together classes

An important aspect of object-oriented software development is the way in which one class can be built upon another, reusing the operations of the original class on the subclass. In this section we explore how to combine the Movable and Named classes, to give objects which are both movable and named. The section is rather more advanced, and can be omitted on first reading.

Suppose we are to add names to our movable objects – how might this be done? We examine one approach in the text, and another in the exercises.

Our approach is to build the type Name a where elements of type a are movable, that is Movable a holds. We then want to establish that the type Name a is in both the classes Movable and Named. We have shown the latter for any type a already in (1) above, so we concentrate on the former.

The crucial insight is that the naming is independent of the named type; any operation on the type can be lifted to work over named types thus:

mapName :: (a -> b) -> Name a -> Name b

mapName f (Pair obj nm) = Pair (f obj) nm

We can then argue that all the operations of the Movable class can be lifted.

instance Movable a => Movable (Name a) where  -- (2)
  move v   = mapName (move v)
  reflectX = mapName reflectX
  reflectY = mapName reflectY

Now we already know that Named (Name a) by (1) above, so if we define a class combining these attributes

class (Movable b, Named b) => NamedMovable b  -- (3)

we can declare the instance

instance Movable a => NamedMovable (Name a)

This last instance is established by showing that the two constraints of (3) hold when b is replaced by Name a, but this is exactly what (1) and (2) say given the constraint Movable a.

This completes the demonstration that NamedMovable (Name a) holds when we know that Movable a. It is worth realising that this demonstration is produced automatically by the Haskell system – we only need to type what is seen in Named movable objects..

This section has begun to illustrate how classes can be used in the software development process. In particular we have shown how our movable objects can be named in a way which allows reuse of all the code to move the objects.

Exercises

14.37 A different way of combining the classes Named and Movable is to establish the instance

instance (Movable b,Named c) => NamedMovable (b,c)

This is done by giving the instances

instance Movable b => Movable (b,c) where ....
instance Named c   => Named (b,c) where ....

Complete these instance declarations.

14.38 Show that the method of the previous question can be used to combine instances of any two classes.

14.39 The example in the final part of this section shows how we can combine an arbitrary instance of the Movable class, a, with a particular instance of the Named class, String. Show how it can be used to combine an arbitrary instance of one class with a particular instance of another for any two classes whatever.

14.40 Extend the collection of operations for moving objects to include scaling and rotation by an arbitrary angle. This can be done by re-defining Movable or by defining a class MovablePlus over the class Movable. Which approach is preferable? Explain your answer.

14.41 Design a collection of classes to model bank accounts. These have different forms: current, deposit and so on, as well as different levels of functionality. Can you reuse the Named class here?

Reasoning about algebraic types

Verification for algebraic types follows the example of lists, as first discussed in Reasoning about programs. The general pattern of structural induction over an algebraic type states that the result has to be proved for each constructor; when a constructor is recursive, we are allowed to use the corresponding induction hypotheses in making the proof. We first give some representative examples in this section, and conclude with a rather more sophisticated proof.

Trees

Structural induction over the type Tree of trees is stated as follows.

Structural induction over trees

To prove the property P(tr) for all finite tr of type Tree t we have to do two things.

The advice of Reasoning about programs about finding proofs can easily be carried over to the situation here. Now we give a representative example of a proof. We aim to prove for all finite trees tr that

map f (collapse tr) = collapse (mapTree f tr)  -- (map-collapse)

which states that if we map a function over a tree, and then collapse the result we get the same result as collapsing before mapping over the list. The functions we use are defined as follows

map f []     = []   -- (map.1)
map f (x:xs) = f x : map f xs   -- (map.2)

mapTree f Nil = Nil  -- (mapTree.1)
mapTree f (Node x t1 t2)
  = Node (f x) (mapTree f t1) (mapTree f t2)   -- (mapTree.2)

collapse Nil = []  -- (collapse.1)
collapse (Node x t1 t2)
  = collapse t1 ++ [x] ++ collapse t2  -- (collapse.2)

Base

In the Nil case, we simplify each side, giving

map f (collapse Nil)
  = map f []   -- by (collapse.1)
  = []   -- by (map.1)

collapse (mapTree f Nil)
  = collapse Nil   -- by (mapTree.1)
  = []   -- by (collapse.1)

This shows that the base case holds.

Induction

In the Node case, we have to prove:

map f (collapse (Node x tr1 tr2))
  = collapse (mapTree f (Node x tr1 tr2))  -- (ind)

assuming the two induction hypotheses:

map f (collapse tr1) = collapse (mapTree f tr1)   -- (hyp.1)
map f (collapse tr2) = collapse (mapTree f tr2)  -- (hyp.2)

Looking at (ind), we can simplify the left-hand side thus

map f (collapse (Node x tr1 tr2))
  = map f (collapse tr1 ++ [x] ++ collapse tr2)  -- by (collapse.2)
  = map f (collapse tr1) ++ [f x] ++ map f (collapse tr2)
         -- by (map++)
  = collapse (mapTree f tr1) ++ [f x] ++
    collapse (mapTree f tr2)  -- by (hyp1,hyp2)

The final step is given by the two induction hypotheses, that the result holds for the two subtrees tr1 and tr2. The result (map++) is the theorem

map g (ys++zs) = map g ys ++ map g zs   -- (map++)

discussed in Higher-order functions. Examining the right-hand side now, we have

collapse (mapTree f (Node x tr1 tr2))
  = collapse (Node (f x) (mapTree f tr1)
                         (mapTree f tr2))  -- by (mapTree.2)
  = collapse (mapTree f tr1) ++ [f x] ++
    collapse (mapTree f tr2)  -- by (collapse.2)

and this finishes the proof in the Node case. As this is the second of the two cases, the proof is complete. ⬛

The Maybe type

Structural induction for the type Maybe t becomes proof by cases – because the type is not recursive, in none of the cases is there an appeal to an induction hypothesis. The rule is

Structural induction over the Maybe type

To prove the property P(x) for all defined¹ x of type Maybe t we have to do two things:

Our example proof is that, for all defined values x of type Maybe Int,

maybe 2 abs x ≥ 0

extbfProof

 The proof has two cases. In the first x is replaced by Nothing:

maybe 2 abs Nothing
  = 2 ≥ 0

In the second, x is replaced by Just y for a defined y.

maybe 2 abs (Just y)
  = abs y ≥ 0

In both cases the result holds, and so the result is valid in general. ⬛

Other forms of proof

We have seen that not all functions are defined by primitive recursion. The example we saw in Recursive algebraic types was of the function assoc, which is used to rearrange arithmetic expressions represented by the type Expr. Recall that

assoc (Add (Add e1 e2) e3)
  = assoc (Add e1 (Add e2 e3))   -- (assoc.1)
assoc (Add e1 e2) = Add (assoc e1) (assoc e2)  -- (assoc.2)
assoc (Sub e1 e2) = Sub (assoc e1) (assoc e2)  -- (assoc.3)
assoc (Lit n)     = Lit n  -- (assoc.4)

with (assoc.1) being the non-primitive recursive case. We would like to prove that the rearrangement does not affect the value of the expression:

eval (assoc ex) = eval ex   -- (eval-assoc)

for all finite expressions ex. The induction principle for the Expr type has three cases.

To prove (eval-assoc) for all finite expressions, we have the three cases given above. The Lit and Sub cases are given, respectively, by (assoc.4) and (assoc.3), but the Add case is more subtle. For this we will prove

eval (assoc (Add e1 e2)) = eval (Add e1 e2)   -- (eval-Add)

by induction on the number of Adds which are left-nested at the top level of the expression e1 – recall that it was by counting these and noting that assoc preserves the total number of Adds overall that we proved the function would always terminate. Now, if there are no Adds at the top-level of e1, the equation (assoc.2) gives (eval-Add). Otherwise we rearrange thus:

eval (assoc (Add (Add f1 f2) e2)))
= eval (assoc (Add f1 (Add f2 e2)))  -- by (assoc.1)

and since f1 contains fewer Adds at top level,

= eval (Add f1 (Add f2 e2))
= eval (Add (Add f1 f2) e2)   -- by associativity of +

which gives the induction step, and therefore completes the proof. ⬛

This result shows that verification is possible for functions defined in a more general way than primitive recursion.

Checking properties in QuickCheck

Many of these properties can be checked in QuickCheck; we can define properties like this:

prop_assoc :: Expr -> Bool
prop_assoc expr =
    eval expr == eval (assoc expr)

prop_depth :: NTree -> Bool
prop_depth t =
    size t < 2^(depth t)

prop_collapse :: Eq b => (a -> b) -> Tree a -> Bool
prop_collapse f =
    \t -> map f (collapse t) == collapse (mapTree f t)

To be checkable, we need to be able to generate random values of the types Expr, NTree and Tree a (for types a for which random values can be generated). We have done this in the module available online, and we will explain the code in more detail in Domain-Specific Languages.

Exercises

14.42 Prove that the function weather from Introducing algebraic types has the same behaviour as

newWeather = makeHot . isSummer

when

makeHot True  = Hot
makeHot False = Cold
isSummer = (==Summer)

where recall that (==Summer) is an operator section whose effect is to test whether its argument is equal to Summer.

14.43 Is it the case that the area of each Shape from Introducing algebraic types is non-negative? If so, give a proof; if not, give an example which shows that it is not the case.

14.44 If we define the size of an NTree thus

size NilT           = 0
size (Node x t1 t2) = 1 + size t1 + size t2

then prove that for all finite nTrees, tr,

size tr < 2^{(depth tr)}

14.45 Show for all finite NTrees tr that

occurs tr x = length (filter (==x) (collapse tr))

The next two exercises refer back to the exercises of Polymorphic algebraic types.

14.46 Prove that the function twist has the property that

twist . twist = id

14.47 Explain the principle of structural induction for the type GTree. Formulate and prove the equivalent of the theorem relating map, mapTree and collapse for this type of trees.

Summary

Algebraic types sharpen our ability to model types in our programs: we have seen in this chapter how simple, finite types like Temp can be defined, as well as the more complex Either and recursive types. Many of these recursive types are varieties of tree: we looked at numerical trees; elements of the type Expr can also be thought of as trees representing the underlying structure of arithmetical expressions.

The type of lists gives a guiding example for various aspects of algebraic types.

• The definition of the type is recursive and polymorphic, and many polymorphic higher-order functions can be defined over lists – this carries over to the various types of tree and the error type, Maybe, for example.

• There is a simple principle for reasoning over lists, structural induction, which is the model for structural induction over algebraic types.

The chapter also gives guidelines for defining algebraic types. The definition can be given in three parts: first the type name is identified, then the constructors are named, and finally their component types are specified. As in other aspects of program development, this separation of concerns assists the system developer to produce simple and correct solutions.

Having introduced algebraic data types we are able to give more substantial examples of classes and their instances. We can see that the overloading that classes bring makes code both easier to read and more amenable to reuse; we can see in particular how software can be extended in a way that requires little modification to the code.

In the chapters to come, algebraic types will be an integral part of the systems we develop, and indeed in the next case study we exhibit various aspects of these types. We shall also explore a different approach to types: abstract data types, and see how this approach complements and contrasts with the use of algebraic data types.

1. When the type is not recursive, the induction principle gives a proof for all defined objects. An object of this type is defined if it is Nothing, or Just y for a defined y. ↩
