Programming with lists

The aim of this chapter is to introduce the operations on lists contained in the prelude and the libraries that come with Haskell 2010. In order to understand the types of these library functions we have to examine how generic or polymorphic functions. Polymorphism is the mechanism by which a Haskell function can act over more than one type: the length function on lists can be used over any list type, for instance.

After doing this we’re in a position to review the functions in the prelude, in the Haskell 2010 libraries, and those others which appear on Hackage. All these are reviewed, and in particular we look at how we can discover functions with the type or behaviour that we’re looking for.

To make use of these library functions, we then introduce a series of extended exercises to stretch the reader rather more than the small exercises we have given thus far. These include extensions of the Picture functions and a billing program for a supermarket checkout, which has to produce a formatted bill from the list of bar codes scanned in at a checkout. Finally we include the example of card games, which shows the importance of type design in writing non-trivial programs.

Generic functions: polymorphism

Before looking in detail at the functions on lists provided in the Haskell prelude and libraries we need to look at the idea of polymorphism, which literally means ‘has many shapes’. A function is polymorphic if it ‘has many types’, and this is the case for many list-manipulating functions. An example is the length function, which returns the length of a list, an Int. This function can be applied to any type of list, so that we can say

length :: [Bool] -> Int
length :: [[Char]] -> Int

and so forth. How do we write down a type for length which encapsulates this? We say

length :: [a] -> Int

where a is a type variable. Any identifier beginning with a small letter can be used as a type variable; conventionally, letters from the beginning of the alphabet, a, b, c, … are used. Just as in the definition

square x = x*x

the variable x stands for an arbitrary value, so a type variable stands for an arbitrary type, and so we can see all the types like

[Bool] -> Int          [[Char]] -> Int

as coming about by replacing the variable a by particular types: here Bool and [Char].

Types like [Bool] -> Int are called instances of the type [a] -> Int, and because every type for length is an instance of [a] -> Int we call this type the most general type for length. The type of the function to join together two lists, ++, is

[a] -> [a] -> [a]

The variable a stands for ‘an arbitrary type’, but we should be clear that all the a’s stand for the same type, just as in

square x = x*x

the x’s all stand for the same (arbitrary) value. Instances of [a]->[a]->[a] will include

[Integer]->[Integer]->[Integer]

but not the type

[Integer]->[Bool]->[Char]

This makes sense: we cannot expect to join a list of numbers and a list of Booleans to give a string!

On the other hand, the functions zip and unzip convert between pairs of lists and lists of pairs, and their types involve two type variables:

zip   :: [a] -> [b] -> [(a,b)]
unzip :: [(a,b)] -> ([a],[b])

because the types of the lists being (un)zipped are not related. Now, instances of the type of zip include

[Integer]->[Bool]->[(Integer,Bool)]

where a and b are replaced by different types (Integer and Bool, here). It is, of course, possible to replace both variables by the same type, giving

[Integer]->[Integer]->[(Integer,Integer)]

and the general type [a] -> [a] -> [(a,a)].

Types and definitions

How is a polymorphic function defined? Consider the definition of the identity function,

id x = x

which returns its argument unchanged. In the definition there is nothing to constrain the type of x – all we know about x is that it is returned directly from the function. We know, therefore, that the output type is the same as the input, and so the most general type will be

id :: a -> a

At work here is the principle that a function’s type is as general as possible, consistent with the constraints put upon the types by its definition. In the case of the id function, the only constraint is that the input and output types are the same.

In a similar way, in defining

fst (x,y) = x

neither x nor y is constrained at all, and so they can come from different types a and b, giving the type

fst :: (a,b) -> a

A final example is given by

mystery (x,y) = if x then 'c' else 'd'

Here we see that x is used as a Bool in the if x then ..., whereas y is not used at all, and so is not constrained in the definition, giving mystery the type

(Bool,a) -> Char

We shall examine the definitions of many of the Prelude and library functions in Defining functions over lists, and see there that, as outlined above, a function or other object will have as general as possible a type, consistent with the constraints put upon the types by its definition. We look in more depth at the mechanics of type checking in Overloading, type classes and type checking.

GHCi can be used to give the most general type of a function definition, using the :type command. If you have given a type declaration for the function, this can be commented out before asking for the type.

Polymorphism and overloading

Polymorphism and overloading are both mechanisms by which the same function name can be used at different types, but they have an important difference.

A polymorphic function like fst has the same definition, namely

fst (x,y) = x

at all types, so that it is the same function at all its instances.

On the other hand, an overloaded name like == has different definitions over different types, so that the same name is being used to mean different but similar functions at different types. For example, == over Integer is built in, whereas over pairs it will be defined by

(n,m) == (p,q)
  = (n==p) && (m==q)

More details about overloading can be found in Overloading, type classes and type checking.

Exercises

6.1 Give the most general types for the functions snd and sing defined by

snd (x,y) = y
sing x = [x]

6.2 Explain why

[[a]] -> [[a]]

is a type for id but why it is not the most general type for this function.

6.3 Earlier in the chapter we saw the example of

shift :: ((Integer,Integer),Integer) -> (Integer,(Integer,Integer))
shift ((x,y),z) = (x,(y,z))

What is the most general type for shift, if the type declaration is omitted?

Haskell list functions in the `Prelude`

Some polymorphic list operations from `Prelude.hs`.

Armed with the insight provided by the previous section we can look at the descriptions of the polymorphic list operations from Prelude given in Some polymorphic list operations from Prelude.hs.. In this table we give the name of the function or operator, its type, a brief description of its effect and an example, as in the description of length


`length`	`[a] -> Int`	The length of the list.
		`length "word" > 4`

As well as the polymorphic functions in Some polymorphic list operations from Prelude.hs., the standard prelude provides various operations over specific types; some of these can be seen in Some monomorphic list operations from the Prelude.. The types of the functions sum and product, which are overloaded, will be discussed further in Overloading, type classes and type checking.


`and`	`[Bool] -> Bool`	The conjunction of a list of Booleans.
		`and [True,False] > False`

`or`	`[Bool] -> Bool`	The disjunction of a list of Booleans.
		`or [True,False] > True`

`sum`	`[Integer] -> Integer`	The sum of a numeric list.
	`[Float] -> Float`	`sum [2,3,4] > 9`

`product`	`[Integer] -> Integer`	The product of a numeric list.
	`[Float] -> Float`	`product [0.1,0.4 .. 1] > 0.028`

Some monomorphic list operations from the `Prelude`.

The importance of types

The single most useful piece of information about a function is its type, and this is particularly true when we look at the polymorphic types of functions in a library like Some polymorphic list operations from Prelude.hs.. Suppose we are looking for a function to make a list from a number of copies of a single element. It must take the item and a count and give a list, so its type will be one of

Integer -> a -> [a]             a -> Integer -> [a]

Looking at Some polymorphic list operations from Prelude.hs. we can quickly locate one function, replicate, which does have one of these types and is indeed the function which we seek. If we want a function to reverse a list it will have type [a] -> [a] and although there is more than one function with this type, the search is very much narrowed by looking at types. We’ll see a little later on () that there’s a web service called hoogle to look up functions by type.

This insight is not confined to functional languages, but is of particular use when a language supports polymorphic or generic functions and operators as we have seen here.

Further functions

We have not described all the functions in the prelude for two different reasons. First, some of the general functions are higher-order and we postpone discussion of these until Generalization: patterns of computation; secondly, some of the functions, such as zip3, are obvious variants of things we have discussed here. Similarly, we have not chosen to enumerate the functions in the library Data.List; readers should consult the library file itself, which contains type information and comments about the effects of the functions, as well as the Haddock documentation for the library: we talk in detail about documentation in the next section.

Finding your way around the Haskell libraries

A note on module names and exports

Module names in Haskell 2010 are “hierarchical” in style, and consist of a sequence of identifiers beginning with capital letters, separated with dots. Examples in the standard libraries include Foreign.Marshal.Alloc, Data.Bool and Foreign. To quote from the report

Module names can be thought of as being arranged in a hierarchy in which appending a new component creates a child of the original module name. For example, the module Control.Monad.ST is a child of the Control.Monad sub-hierarchy. This is purely a convention, however, and not part of the language definition.

However, that’s not quite the end of the story, because some modules are defined in such a way as to (re-)export all their “children”: an example of this is the module Foreign.C (quoting again from the report)
The module Foreign.C combines the interfaces of all modules providing C-specific marshalling support, namely
module Foreign.C.Types
module Foreign.C.String
module Foreign.C.Error
while other modules export a subset of that functionality:
The module Foreign combines the interfaces of all modules providing language-independent marshalling support, namely
module Data.Bits
module Foreign.Ptr
 ...

Packages and Hackage

Hackage is the standard online repository for Haskell code, bundled up as packages. The simplest package is a collection of Haskell modules, but more complex packages can contain C code, documentation, test cases and so on. Hackage keeps track of dependencies between packages, including which versions of each dependency a package is compatible with.

Combined with Cabal, this gives a straightforward way to download and maintain sets of Haskell libraries. Cabal has facilities for package developers and maintainers too, but we confine ourselves to user-facing features here.

Packages have a globally unique package name and a version number, such as mypackage-1.4.2. Each package will expose some of the Haskell modules it contains. Crucially, the package will state which other packages it depends on, typically in as general as possible a way: a dependency such as base >=4.14 && <5 lets the package use any version of base in that range. Further details of how packages are described is available at the Hackage website, https://hackage.haskell.org/. A typical package description page on Hackage is shown in The HackageDB description of the accelerate package.

Cabal

Cabal is the standard command-line tool for building Haskell projects and for installing packages – and whatever they depend on – on your system. It is installed automatically by GHCup alongside GHC itself, as described in Getting started with Haskell programming. Day to day, working on this book’s own code, you mainly need cabal build and cabal repl, described in Working with multiple-module projects, which build a project and its dependencies and open a GHCi session connected to them respectively: Cabal works out for itself, from the project’s .cabal file, which packages need to be fetched and built.

For working with packages more generally these further commands are useful.

cabal update

Refresh the local, cached list of packages available on Hackage. It’s sensible to do this occasionally.

cabal list string

List all the packages whose descriptions contain a match of the string; all packages are listed if the string is omitted.

cabal install pkg

Install pkg as a standalone executable, so that it’s available on the command line; add --lib instead to make a package available as a library outside of any particular project.

cabal install ’pkg < 2’

Install a version of pkg with a constrained version number.

cabal install pkg --dry-run

Dry run what happens if you install a particular pkg.

cabal help

Give a summary of all the available cabal commands.

ghc-pkg list

List all the packages currently visible to GHC.

Full documentation for Cabal is available at https://cabal.readthedocs.io/.

This section¹ looks at the great libraries that come with Haskell, which will allow you to get started writing programs in all sorts of different application areas without having to build up everything from scratch yourself, thanks to the contributions of thousands of people in the Haskell community.

What libraries are there?

Libraries are found in the Haskell 2010 standard, including the Prelude, in curated distributions such as Stackage, and on the Hackage database. We first describe the libraries in some more detail, and then explain how to find out more about them.

Prelude

The Prelude is a part of the language standard and gives definitions of standard types, functions and classes (which we come to later). The Prelude is listed in full in the Haskell 2010 Language Report.

The Prelude is special because it is imported into all modules by default. We have seen this already: if we want to re-define a Prelude function, then we have to import the Prelude explicitly, but hiding that function.

Haskell 2010

The standard libraries in Haskell 2010 use hierarchical names: see the note on module names for more details of this.

The libraries are grouped by name, and are described in depth in the Haskell 2010 Language Report:

Control: The Control.Monad library contains definitions which underly the IO mechanism in Haskell, as well as structuring side-effecting computations and DSL definitions.
Data: These libraries contain additional data types, e.g. Data.Array, or additional operations on existing types, such as the bitwise operations on integers in Data.Bit.
Foreign: The Foreign libraries provide support for interworking with other programming languages. This includes support for the communication of data between languages in Foreign.C and Foreign.Marshal, as well as facilities for pointers to foreign entities.
Numeric: The Numeric library contains functions to read and print numbers in a variety of formats.
System: The System libraries have support for various forms of IO handling (in System.IO and System.IO.Error), and functions to interact with the command line and signals in Unix.

Stackage

Beyond the standard libraries, the great majority of Haskell code lives in packages on Hackage (described next). Because anyone can upload a package, and packages can drift out of sync with each other’s dependencies, Stackage, https://www.stackage.org/, curates snapshots: large sets of Hackage packages that are tested and known to build together, including both a frequently-updated Nightly snapshot and slower-moving, long-term-support (LTS) snapshots. Between packages installed directly via Cabal and packages taken from a Stackage snapshot, the areas covered include the following.

Data and control structures, such as sets, finite maps, bytestrings and hash tables.
Concurrency, including lightweight threads, MVars for thread synchronisation and channels.
Testing and debugging, including HUnit and QuickCheck, as we use here.
Network, system and web programming, including facilities for HTTP and socket programming, as well as access to many OS-level and lower-level operations.
Other packages cover text processing, graphics and mathematics.

HackageDB

HackageDB provides an online repository for sharing and distributing Haskell packages and libraries. It has been running continuously since 2007, and now hosts tens of thousands of packages, a testament to the strength and engagement of the Haskell developer community. The variety and number of packages make it impossible to give a summary of what’s there: you’ll need to consult the documentation to find out more. We turn to looking at that now.

The Haskell infrastructure illustrates the layers of libraries available.

Where do I find out more?

You can find out about the Haskell libraries in a number of different places, some installed locally alongside GHC, and others online. Much of the online documentation is generated using the Haddock system, which is itself installed alongside GHC. Haddock documents are hyperlinked for ease of navigation, and also provide links from the documentation into the source code, so that you don’t have to look at that separately.

We’ll go through these in turn now.

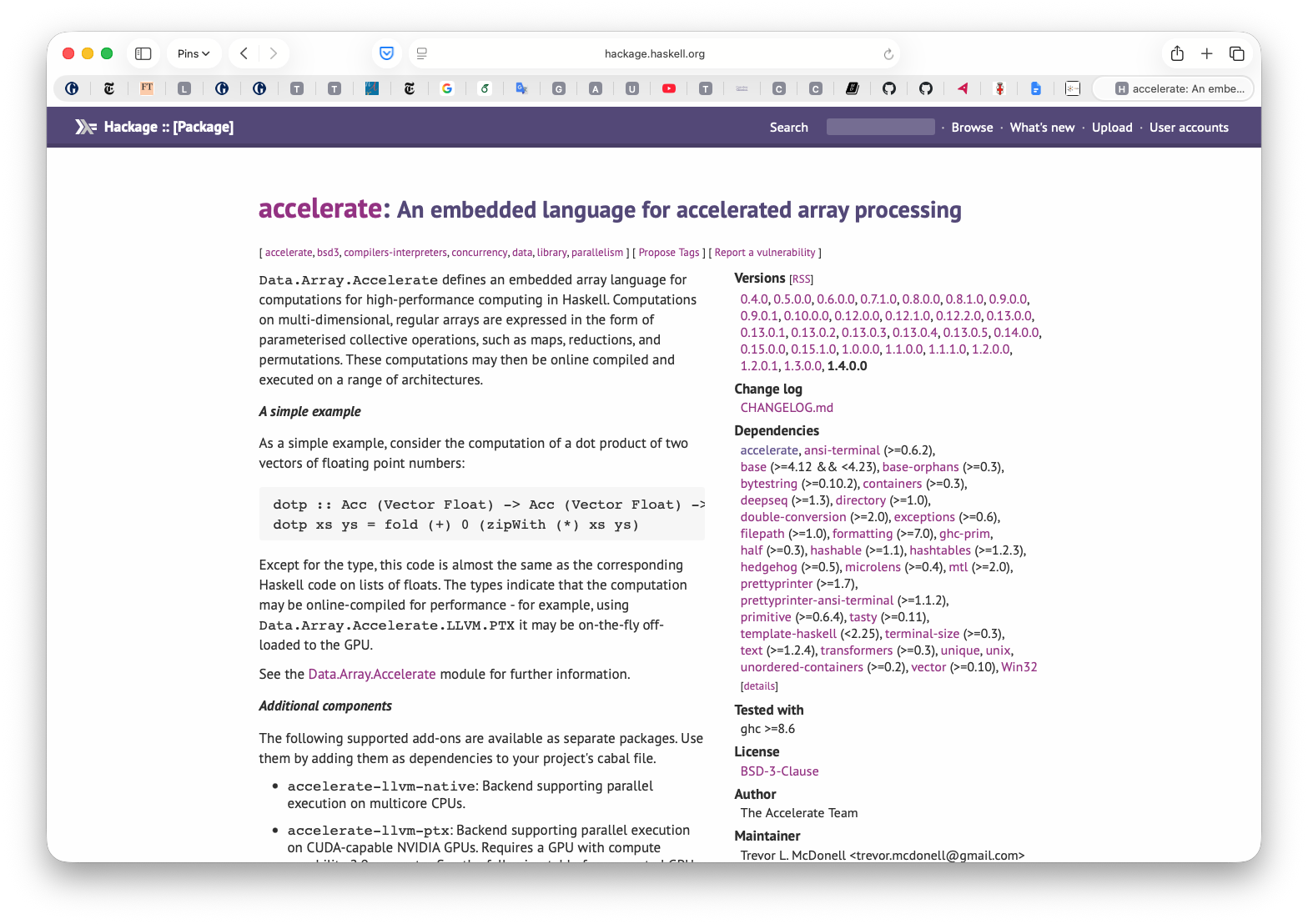

The HackageDB description of the `accelerate` package

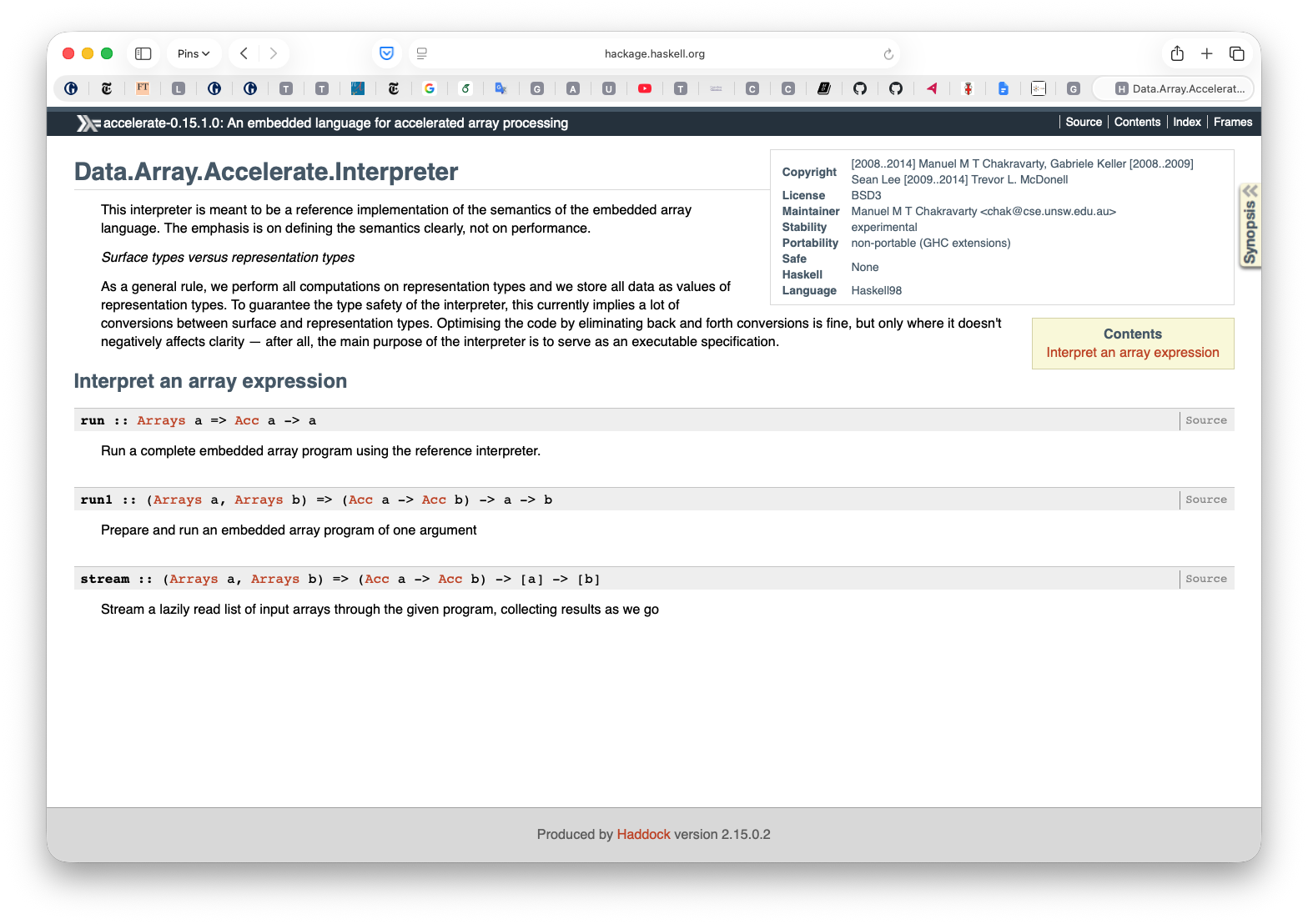

Haddock documentation for the `accelerate` package

System documentation

Once GHC is installed via GHCup, documentation for the compiler and the libraries that ship with it is also installed locally; GHCup’s own documentation, https://www.haskell.org/ghcup/, explains where to find it on your platform. In practice, though, most readers find it quicker simply to use the online, Hackage-hosted documentation described below, which is always up to date and identical in content.

Libraries

Haddock documentation for the libraries that ship with GHC – base, containers, bytestring and so on – is hosted on Hackage alongside everything else; see Hackage, below.

Prelude

In particular, documentation for the Prelude, including descriptions of and examples for many of the functions, is part of the documentation for the base package, and is available directly at https://hackage.haskell.org/package/base/docs/Prelude.html, which always points to the documentation for whichever version of base ships with the current release of GHC.

Hackage

Haddock documentation is available for the great majority of packages on Hackage. This is accessible from https://hackage.haskell.org/package/, which is listed by category, but also searchable. A typical package page is shown in The HackageDB description of the accelerate package: documentation for the modules making up the package is linked from the list of modules below the Modules header, towards the bottom of the page; an example is shown in Haddock documentation for the accelerate package.

Hoogle search

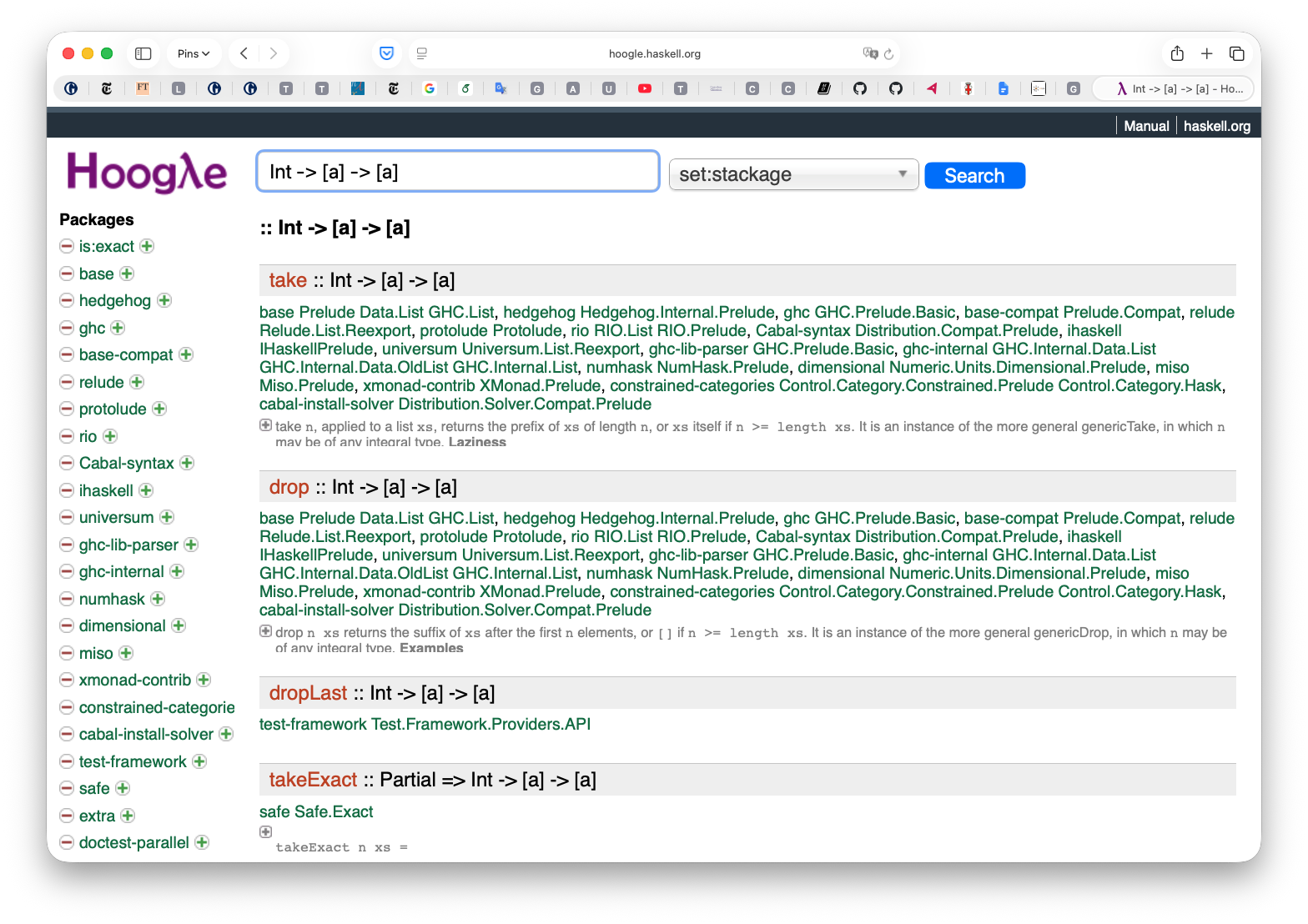

Hoogle allows you to search many of the standard and Hackage libraries: what is cool about Hoogle is that you can search by type as well as by name. Narrowing down a search by type can lead you very quickly to your answer, or at least eliminate a lot of “noise” in a search: https://hoogle.haskell.org/. See Hoogle in action for example results. Be aware, though, that Hoogle doesn’t cover every package on Hackage. A general web search – even using a type signature as the search text – is also often surprisingly effective.

GHCi

Once you have asked to import a module (Foo, say) into GHCi you can then find out the types of all its exported functions using the GHCi command

:browse Foo

Information about a particular function (foo, say) which is in a module loaded in GHCi is given using the command

:info foo

Online resources

You can go online to ask questions. The Haskell Discourse, https://discourse.haskell.org, is now the liveliest general home for Haskell discussion and questions; the Haskell Cafe mailing list, haskell-cafe@haskell.org, IRC channels and Stack Overflow’s haskell tag remain active too. Links to all of these can be found in the Community section of the Haskell website, https://www.haskell.org.

Online texts

Finally, you can find a number of texts online, including the community-maintained continuation of Learn You a Haskell for Great Good!, https://learnyouahaskell.github.io/, and the Haskell wikibook, https://en.wikibooks.org/wiki/Haskell.

The `Picture` example: implementation

In this section we revisit the Picture example, first introduced in Introducing functional programming and re-examined in A second example: pictures. What we do here is to look at how to implement some of the operations over the Picture type, now that we know about list comprehensions and the list functions in the prelude. We also look at how to write more QuickCheck properties for the Picture functions.

type Picture = [[Char]]

Some of the operations are defined as library functions. To flip a picture in a horizontal mirror, we simply have to reverse the order of the lines of the picture:

flipH :: Picture -> Picture
flipH = reverse

and to place one picture above another it is sufficient to join the two lists of lines together:

above :: Picture -> Picture -> Picture
above = (++)

where we have enclosed the operator ++ in parentheses to make it a (prefix) function.

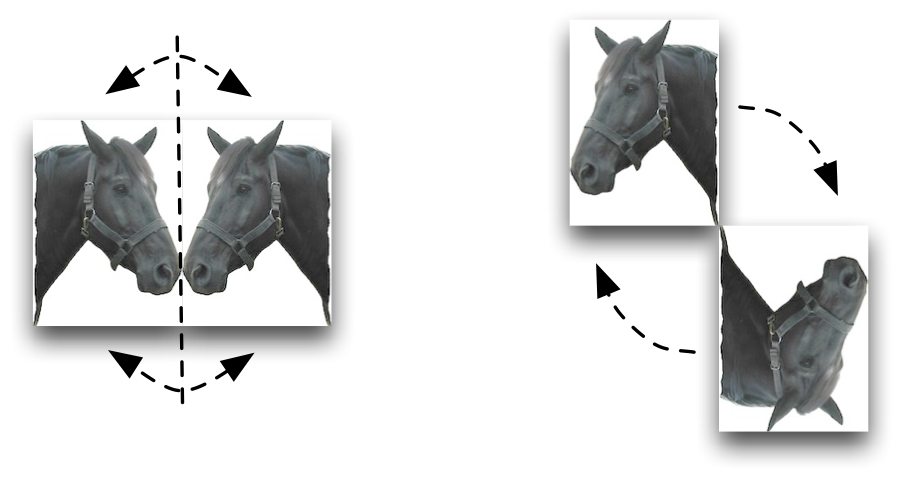

How do we flip a picture in a vertical mirror? We have to reverse each of the lines, that is we have to transform each member of a list in some way. This is one of the features of a list comprehension, so we can say

flipV :: Picture -> Picture
flipV pic
  = [ reverse line | line <- pic ]

and we can read off from this program its intended effect:

“reverse every line in the pic”.

This is an example of the general operation of applying a function f to every element of a list xs, given by the list comprehension

[ f x | x <- xs ]

We shall see that this operation is itself a higher-order function in Generalization: patterns of computation below.

Next we explore how to place two pictures side by side. What we want to do is to join up the corresponding lines of the two pictures, as illustrated. How can we accomplish this? We can see this as like flipV, in that we want to do something to every pair of lines – namely join them with ++ – but we need to associate corresponding lines before we do this. That is exactly the purpose of the prelude function zip, which takes two lists and pairs corresponding elements, and so we can say

beside :: Picture -> Picture -> Picture
beside picL picR
  = [ lineL ++ lineR | (lineL,lineR) <- zip picL picR ]

The effect of zip is to chop the list of pairs to the shorter of the two inputs, and so beside will clip the bottom lines off whichever picture is the longer; if they are the same length, then there is no clipping. We can also use the higher-order zipWith to define beside; we revisit this in Chapter 9.

In our pictures, white is represented by the dot ‘.’ and black by the hash symbol ‘#’. To invert the colour of a single character we define

invertChar :: Char -> Char
invertChar ch
  = if ch=='.' then '#' else '.'

The characters ‘.’ and ‘#’ are swapped by this definition (and any other character is transformed into ‘.’, too). Now, how do we invert the colours in a whole picture? We need to invert each character in a line, using

invertLine :: [Char] -> [Char]
invertLine line
  = [ invertChar ch | ch <- line ]

and we want to apply this to all the lines in the picture

invertColour :: Picture -> Picture
invertColour pic
  = [ invertLine line | line <- pic ]

We could if we wish write this as a single definition, thus

invertColour :: Picture -> Picture
invertColour pic
  = [ [ invertChar ch | ch <- line ] | line <- pic ]

but our use of the auxiliary function invertLine makes the previous definition more readable.

In the next section we extend our model of pictures to give them a position as well as some pictorial content.

Tests and properties

We first discussed writing properties for the functions over pictures in Tests, properties and proofs; it’s time to look at this again. In that section we looked at properties of flipH and flipV, separately and together. Here we look at how these functions interact with above and beside, and we look at other properties in the exercises.

What happens if we flip pic1 ‘above‘ pic2 in a vertical mirror? The result is the same as flipping the two pictures separately before putting them together. We can write this as a property

prop_AboveFlipV :: Picture -> Picture -> Bool

prop_AboveFlipV pic1 pic2 =
    flipV (pic1 `above` pic2) == (flipV pic1) `above` (flipV pic2)

and test it by typing

quickCheck prop_AboveFlipV

(ensuring that the module Test.QuickCheck is loaded.) Similarly we can write the property for flipH:

prop_AboveFlipH :: Picture -> Picture -> Bool

prop_AboveFlipH pic1 pic2 =
    flipH (pic1 `above` pic2) == (flipH pic1) `above` (flipH pic2)

but this fails: why? Can you correct the property? Remember that flipH means that we’re flipping the picture in a horizontal mirror.

In Solving a problem in steps: local definitions we put together four pictures as fourPics. We chose to do this by putting one picture beside another using beside: we could also have done this by putting one picture above another, and we could expect that this gives the same result, as expressed in the property

propAboveBeside :: Picture -> Picture ->  Picture -> Picture -> Bool

propAboveBeside nw ne sw se =
  (nw `beside` ne) `above` (sw `beside` se)
  ==
  (nw `above` sw) `beside` (ne `above` se)

If we test this, then it fails. Why? Remember that we’re using the built-in facilities of QuickCheck to generate random values from [String]. If we look at a sample of the data,² the results look like this:

[]
["a1","\EOT"]
[]
["","p\DC3=","\229\a\183","\218\SOH\194",""]
["g}","P","_y","\169\131\FS\t","U\nl",":YicLX\194\198","\t3"]
 ...

The elements are random, the pictures are generally not rectangular – because within each list the strings are of different length – it is also very likely that four of these chosen randomly will not have the right dimensions to be put together using beside and above. We’ll see in DSLs for computation: generating data in QuickCheck how to define random generators of data for ourselves, and we’ll see there how to generate ‘sensible’ random pictures, built up from ’.’ and ’#’ in rectangular patterns, and indeed to generate sets of pictures containing random data but all of the same size.

In the meantime we can say that we only want to check a property when the generated data satisfy some conditions: let’s take a look at an example.

propAboveBeside3Correct :: Picture -> Picture -> Property

propAboveBeside3Correct w e =
  (rectangular w && rectangular e && height w == height e)
  ==>
     (w `beside` e) `above` (w `beside` e)
         ==
     (w `above` w) `beside` (e `above` e)

In writing this property we have used ==> which we can read as ‘implies’. The property following the ==> is only checked when the Boolean condition before the arrow is true. Without the condition the property fails: try it out!

Exercises

6.4 Define a function

superimposeChar :: Char -> Char -> Char

so that the superimposition of ‘.’ with itself gives ‘.’ while any other combination of characters gives ‘#’.

6.5 Define a function

superimposeLine :: [Char] -> [Char] -> [Char]

which takes two lines – which you can assume are of the same length – and superimposes their corresponding characters using superimposeChar, so that, for example,

superimposeLine ".##." ".#.#" = ".###"

You may want to use zip in your solution.

6.6 In a similar way to superimposeLine, define the function

superimpose :: Picture -> Picture -> Picture

which superimposes two pictures, which you may assume have the same dimensions.

6.7 Using the function putStr :: String -> IO () and any other functions you might need, define the function

printPicture :: Picture -> IO ()

so that the effect of printPicture [ ".##." , ".#.#" , ".###" , "####" ] is that

.##.
.#.#
.###
####

is printed at the terminal window. Hint: it is enough to transform this list of strings to the single string

".##.\n.#.#\n.###\n####\n"

and to pass that to putStr.

6.8 [Harder] Define a function

rotate90 :: Picture -> Picture

which rotates a picture through 90° clockwise. For instance, the effect of rotate90 on the picture in the previous exercise would be to give

#...
####
##.#
###.

Hint: you need to make a line of the new picture by picking out the ith elements in each of the lines of the original picture, reflected in a horizontal mirror.

6.9 Using rotate90 or otherwise, define a function which rotates a picture through 90° anticlockwise.

6.10 [Harder] Define the function

scale :: Picture -> Int -> Picture

which scales the input picture by the integer provided as the second argument. For instance, if exPic is the picture

#.#
..#

then the result of scale exPic 2 should be

##..##
##..##
....##
....##

In the case of a zero or negative scale factor, you should return an empty picture.

6.11 Correct the property prop_AboveFlipH given earlier.

6.12 Define properties which describe how beside interacts with flipH and flipV.

6.13 One property we can show holds is that if we take the same picture and put four copies of it together using beside and above in the two different ways, then the results are the same. Express this as a quick check property.

6.14 You can test your implementation of rotate90 using QuickCheck. Can you think of properties which only use rotate90 and others that use rotate? You may want to impose a condition that any picture involved is rectangular: the function is given in the program code for this chapter.

6.15 What property would you expect invertColour to have? Can you be sure that this will hold for randomly generated data?

6.16 [Harder] Write the analogue of propAboveBeside3Correct where two pictures are again used, but with two the same at the top (call them n) and two the same at the bottom (s, say). Do you need the condition in this case?

Extended exercise: alternative implementations of pictures

This section looks again at the pictures example, and explores alternative implementations. First we look at extending the implementation so that two pictures don’t have to be of compatible size when joining them together into one. After that we look at various alternative implementations of pictures as lists.

Incompatible combinations

In earlier discussions of the Picture type, we have made the assumption that binary functions like above have been called on arguments of compatible size: in the case of above this would mean that the width of the two arguments was the same. What should be done if this is not the case?

We could reasonably assume that each picture was rectangular and define the functions so that this invariant was preserved by the binary functions. In the example of above this requires that pictures can be padded in an appropriate way. Let’s take the specific example of

(horse `beside` horse)
       `above`
horse

as shown in `Ragged’ picture.

.......##..........##...
.....##..#.......##..#..
...##.....#....##.....#.
..#.......#...#.......#.
..#...#...#...#...#...#.
..#...###.#...#...###.#.
.#....#..##..#....#..##.
..#...#.......#...#.....
...#...#.......#...#....
....#..#........#..#....
.....#.#.........#.#....
......##..........##....
.......##...
.....##..#..
...##.....#.
..#.......#.
..#...#...#.
..#...###.#.
.#....#..##.
..#...#.....
...#...#....
....#..#....
.....#.#....
......##....

'Ragged' picture

To preserve the rectangular picture, we need to pad out the lower as shown in ``Padded’ picture.

.......##..........##...
.....##..#.......##..#..
...##.....#....##.....#.
..#.......#...#.......#.
..#...#...#...#...#...#.
..#...###.#...#...###.#.
.#....#..##..#....#..##.
..#...#.......#...#.....
...#...#.......#...#....
....#..#........#..#....
.....#.#.........#.#....
......##..........##....
.......##...............
.....##..#..............
...##.....#.............
..#.......#.............
..#...#...#.............
..#...###.#.............
.#....#..##.............
..#...#.................
...#...#................
....#..#................
.....#.#................
......##................

"Padded' picture

Exercises

6.17 Redefine the functions over pictures to pad pictures in the way just described. One way to solve the problem is to use the function

replicate :: Int -> a -> [a]

replicate n x returns a list containing n xs, so replicate 3 ’g’ is "ggg".

6.18 How would you work with basic pictures that were not rectangular? Define a function which will take a picture - as a list of Strings – and return a rectangular list of strings, padding out each line as necessary. Once you start with rectangular pictures the functions you defined in the first part of this exercise should be enough to preserve them as rectangular.

Alternative representations

In this section we look at a number of different ways that these "low fi" pictures can be represented.

Exercises

6.19 An alternative representation of Picture is the type

[[Bool]]

where True and False represent black and white points in a picture. How would you have to modify the functions working over Picture to accommodate this change? What are the advantages and disadvantages of the two representations?

6.20 We have represented pictures as a list of rows: how would you redefine the functions working over pictures if they are represented as a list of columns.

6.21 [Harder] How would you re-implement the function printPicture, defined in the solution to exercise 6.7, so that it works over this column-based representation?

6.22 It would be possible to represent a Picture as a single list of characters, with ’\n’ terminating each line of the picture, as in

".##.\n.#.#\n.###\n####\n"

How would you redefine the picture manipulating functions over this representation? Which functions become easier to define? Which more difficult?

Run-length encoding

A more compact representation is given by run-length encoding of Pictures, which will code a repeated character run like "###" as a pair, (3,’#’), and a picture is represented as a member of [[(Int,Char)]]. For example, the picture

.##.
.#.#
.###
####

is represented like this

[ [(1,'.'), (2,'#'), (1,'.')],
  [(1,'.'), (1,'#'), (1,'.'), (1,'#')],
  [(1,'.'), (3,'#')],
  [(4,'#')] ]

using run-length encoding for each row of the picture.

Exercises

6.23 Re-implement the functions over pictures to work with this new representation. In particular, how would you print pictures which were represented in this way?

6.24 Is it the case that all your answers to the last question give the most compact representation, so that you don’t have adjacent runs of the same character, as in

[(1,'.'), (2,'.'), (1,'#')]

which could be given more compactly as

[(3,'.'), (1,'#')]

If this can happen with your functions, how could you change your definitions to avoid it?

6.25 Take another look at the QuickCheck properties you wrote to test pictures: rewrite these for your alternative implementations. How many of the properties carry over to the alternative implementations without alteration, and how many have to be modified in some way?

6.26 [Harder] The run-length encoding above works a line at a time, but it would be possible to give a more compact representation which combines runs in different lines. The earlier example could then be given by

[(1,'.'), (2,'#'), (2,'.'),
 (1,'#'), (1,'.'), (1,'#'),
 (1,'.'), (7,'#')]

This representation loses the length of the rows, so you would have to keep information about the row length in the type too, giving

type Picture = (Int, [(Int,Char)] )

as the representation. Re-implement the picture functions to work over this type.

6.27 [Harder] If you know that only the characters ’.’ and ’#’ are used in a picture, how could you make the representation of the previous question even more compact?

6.28 [Harder] Define two more representations of pictures yourself, and re-implement the picture functions over these types.

Extended exercise: positioned pictures

The pictures that we have modelled using the type Picture are not anchored at any particular point in space: we can think of them concretely as being on pieces of paper which can be joined together, superimposed, rotated and so on.

A different model of pictures gives each picture a Position in space: we can then think of moving these pictures, of superimposing two of these pictures to give another picture, and so on.

Basics

How can we represent pictures with positions? First we need to think about how we model positions on an integer grid. A Position is given by a pair of integers,

type Position = (Int,Int)

We will use the term Image for a picture with a position, and so we define

type Image = (Picture,Position)

An example, in which we position the horse with its bottom left-hand corner or reference point at position (31,23), is given in An example Image..

The remainder of this section is a collection of exercises to write functions which manipulate these Images; you can use any of the list functions introduced in the previous chapter and also the functions over Picture which we have already defined.

Exercises

6.29 Define a function

makeImage :: Picture -> Position -> Image

which makes an Image from a Picture and a Position.

6.30 Define a function

changePosition :: Image -> Position -> Image

which takes an Image and returns a new Image whose Picture is unchanged but whose Position is given by the second argument to changePosition.

6.31 Give a definition of the function

moveImage :: Image -> Int -> Int -> Image

so that the effect of moveImage img xMove yMove is to move img by xMove in the horizontal (x) direction and by yMove in the vertical (y) direction.

6.32 Define a function

printImage :: Image -> IO ()

whose action is the analogue of printPicture for pictures.

The geometrical view of `flipV` and `rotate`.

Transformations

We can extend the transformations over the type Picture to the Image type, but we need to think about the effect of these transformations on the position. One way to lift the transformations from pictures to images is simply to say that the pictures stay in the same position – we call this the naive view.

If we think of reflections and rotations going on in space, then the results are more likely to be as shown in The geometrical view of flipV and rotate., where we see that the position of the resulting image has changed. Rotation is about the reference point, and reflection is in the horizontal or vertical line through the reference point; in general these operations will change the reference point. We call this the geometrical view of the transformations.

Exercises

6.33 Implement for Image the analogues of flipH, flipV, rotate and rotate90 under the naive view of how to lift the transformations.

6.34 Implement for Image the analogues of flipH, flipV, rotate and rotate90 under the geometrical view.

Superimposition

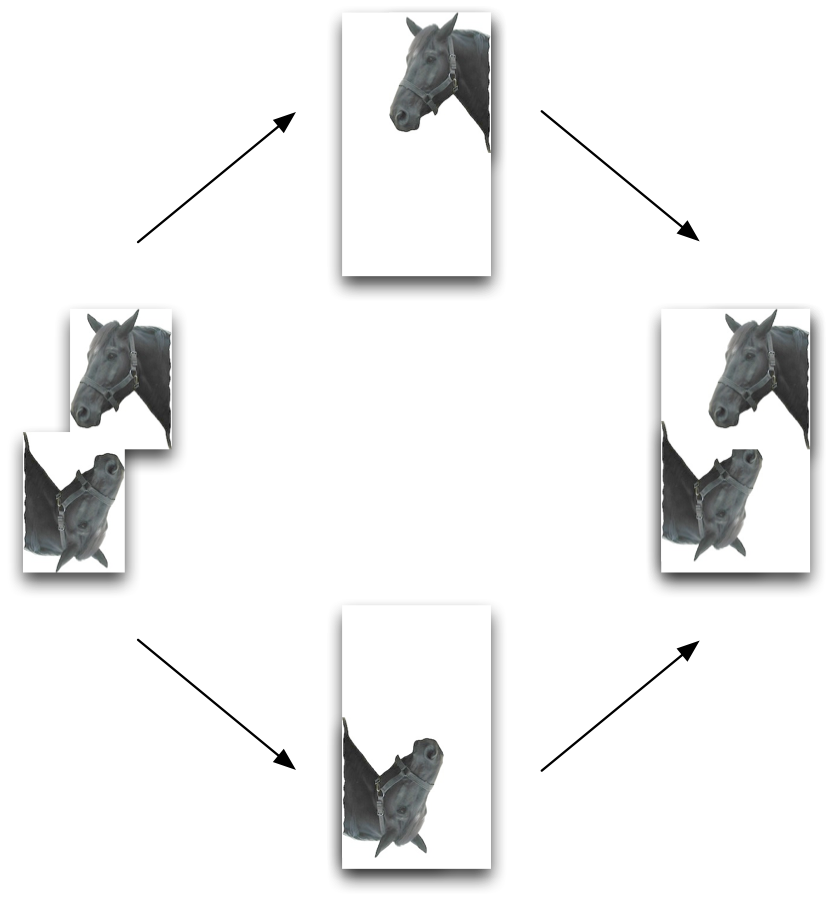

When pictures have positions, superimposition can be more complex. Consider the example illustrated in Superimposing two Images.; here we see one way of superimposing the two images is to use Picture superimposition on two pictures which have first been ‘padded out’ with white space as shown in the figure.

Exercises

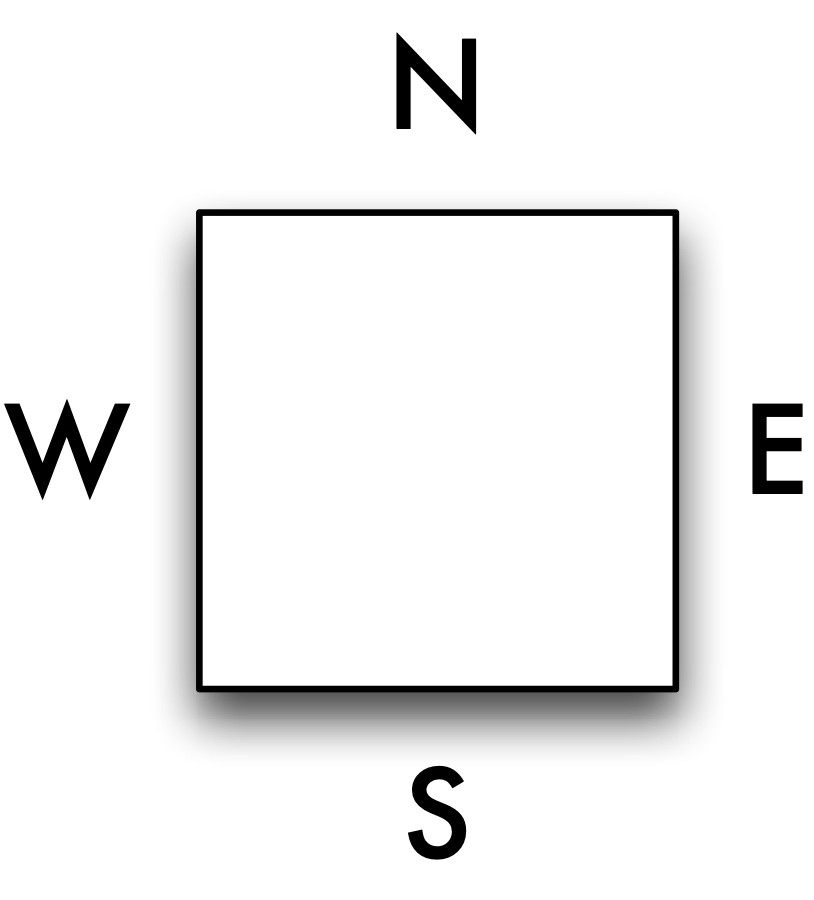

6.35 Define functions to ‘pad out’ a Picture with an amount of white space, as shown in Superimposing two Images..

You will need to think carefully about the intended effect of the functions before you start to implement them. You will need to have function parameters for the amount of padding to the left, right, bottom and top of the image.

Note, in particular, that the Position of an Image might change as a result of padding.

6.36 Using the padding functions, define a superimposition function for the Image type.

6.37 How would you use Image superimposition to give analogues of above and beside for Images?

6.38 Define QuickCheck properties to check the implementation of the functions over the Image type. How many carry over from the Picture type, and how many have to be re-defined?

Extended exercise: supermarket billing

This collection of exercises looks at supermarket billing.³ The idea is to use the list-manipulating techniques presented in Data types, tuples and lists. In particular we will be using list comprehensions and also the prelude functions mentioned there. We will also expect local definitions – as explained in Solving a problem in steps: local definitions – to be used when appropriate.

                          Haskell Stores

                  Dry Sherry, 1lt...........5.40
                  Fish Fingers..............1.21
                  Orange Jelly..............0.56
                  Hula Hoops (Giant)........1.33
                  Unknown Item..............0.00
                  Dry Sherry, 1lt...........5.40

                  Total....................13.90

A supermarket bill

The problem

A scanner at a supermarket checkout will produce from a basket of shopping a list of bar codes, like

[1234,4719,3814,1112,1113,1234]

which has to be converted to a bill as shown in A supermarket bill We have to decide first how to model the objects involved. Bar codes and prices (in pence) can be modelled by integers; names of goods by strings. We say therefore that

type Name    = String
type Price   = Int
type BarCode = Int

The conversion will be based on a database which links bar codes, names and prices. As in the library, we use a list to model the relationship.

type Database = [ (BarCode,Name,Price) ]

The example database we use is

codeIndex :: Database
codeIndex = [ (4719, "Fish Fingers" , 121),
              (5643, "Nappies" , 1010),
              (3814, "Orange Jelly", 56),
              (1111, "Hula Hoops", 21),
              (1112, "Hula Hoops (Giant)", 133),
              (1234, "Dry Sherry, 1lt", 540)]

The object of the script will be to convert a list of bar codes into a list of (Name,Price) pairs; this then has to be converted into a string for printing as above. We make the type definitions

type TillType = [BarCode]
type BillType = [(Name,Price)]

and then we can say that the functions we wish to define are

makeBill    :: TillType -> BillType

which takes a list of bar codes to a list of name/price pairs,

formatBill  :: BillType -> String

which takes a list of name/price pairs into a formatted bill, and

produceBill :: TillType -> String

which will combine the effects of makeBill and formatBill, thus

produceBill = formatBill . makeBill

The length of a line in the bill is decided to be 30. This is made a constant, thus

lineLength :: Int
lineLength = 30

Making lineLength a constant in this way means that to change the length of a line in the bill, only one definition needs to be altered; if 30 were used in each of the formatting functions, then each would have to be modified on changing the line length. The rest of the script is developed through the sequences of exercises which follow.

Formatting the bill

First we develop the formatBill function from the bottom up: we design functions to format prices, lines, and the total, and using these we finally build the formatBill function itself.

Exercises

6.39 Given a number of pence, 1023 say, the pounds and pence parts are given by 1023 ‘div‘ 100 and 1023 ‘mod‘ 100. Using this fact, and the show function, define a function

formatPence :: Price -> String

so that, for example, formatPence 1023 = "10.23"; you need to be careful about cases like "12.02".

6.40 Using the formatPence function, define a function

formatLine  :: (Name,Price) -> String

which formats a line of a bill, thus

formatLine ("Dry Sherry, 1lt",540)
               = "Dry Sherry, 1lt...........5.40\n"

Recall that ’\n’ is the newline character, that ++ can be used to join two strings together, and that length will give the length of a string. You might also find the replicate function useful.

6.41 Using the formatLine function, define

formatLines :: [ (Name,Price) ] -> String

which applies formatLine to each (Name,Price) pair, and joins the results together.

6.42 Define a function

makeTotal :: BillType -> Price

which takes a list of (Name,Price) pairs, and gives the total of the prices. For instance,

makeTotal [(" ... ",540),(" ... ",121)] = 661

6.43 Define the function

formatTotal :: Price -> String

so that, for example,

formatTotal 661 = "\nTotal.....................6.61"

6.44 Using the functions formatLines, makeTotal and formatTotal, define

formatBill :: BillType -> String

so that on the input

[("Dry Sherry, 1lt",540),("Fish Fingers",121),
("Orange Jelly",56),("Hula Hoops (Giant)",133),
("Unknown Item",0),("Dry Sherry, 1lt",540)]

the example bill at the start of the section is produced.

Making the bill: bar codes into names and prices

Now we have to look at the database functions which accomplish the conversion of bar codes into names and prices.

Exercises

6.45 Define a function

look :: Database -> BarCode -> (Name,Price)

which returns the (Name,Price) pair corresponding to the BarCode in the Database. If the BarCode does not appear in the database, then the pair ("Unknown Item", 0) should be the result.

Hint: using the ideas of the library database you might find that you are returning a list of (Name,Price) rather than a single value. You can assume that each bar code occurs only once in the database, so you can extract this value by taking the head of such a list if it is non-empty.

6.46 Define a function

lookup :: BarCode -> (Name,Price)

which uses look to look up an item in the particular database codeIndex. This function clashes with a function lookup defined in the prelude; consult for details of how to handle this.

6.47 Define the function

makeBill   :: TillType -> BillType

which applies lookup to every item in the input list. For instance, when applied to [1234,4719,3814,1112,1113,1234] the result will be the list of (Name,Price) pairs given in Exercise 6.25. Note that 1113 does not appear in codeIndex and so is converted to ("Unknown Item",0).

This completes the definition of makeBill and together with formatBill gives the conversion program.

Extending the problem

We conclude with some further exercises.

Exercises

6.48 You are asked to add a discount for multiple buys of sherry: for every two bottles bought, there is a 1.00 discount. From the example list of bar codes

[1234,4719,3814,1112,1113,1234]

the bill should be as illustrated in Bills with `multibuy’ discounts..

                          Haskell Stores

                  Dry Sherry, 1lt...........5.40
                  Fish Fingers..............1.21
                  Orange Jelly..............0.56
                  Hula Hoops (Giant)........1.33
                  Unknown Item..............0.00
                  Dry Sherry, 1lt...........5.40

                  Discount..................1.00

                  Total....................12.90

Bills with 'multibuy' discounts.

You will probably find it helpful to define functions

makeDiscount :: BillType -> Price
formatDiscount :: Price -> String

which you can use in a redefined

formatBill :: BillType -> String

6.49 Design functions which update the database of bar codes. You will need a function to add a BarCode and a (Name,Price) pair to the Database, while at the same time removing any other reference to the bar code already present in the database.

6.50 Re-design your system so that bar codes which do not appear in the database give no entry in the final bill. There are (at least) two ways of doing this.

Keep the function makeBill as it is, and modify the formatting functions, or
modify the makeBill function to remove the ‘unknown item’ pairs.

6.51 [Harder] How appropriate would it be to test your supermarket billing system using QuickCheck? Could you check parts of the system using QuickCheck? Could you use it to test the whole system, or could you do both?

6.52 [Project] Design a script of functions to analyse collections of sales. Given a list of TillType, produce a table showing the total sales of each item. You might also analyse the bills to see which pairs of items are bought together; this could assist with placing items in the supermarket.

Extended exercise: cards and card games

An British deck (or pack) of cards has four suits: spades (♠), hearts (♥), diamonds (♦) and clubs (♣).

Each suit contains cards 2 to 10, and the court cards, Jack, Queen, King and Ace. The values of the cards increase in the same order, so, for example, a 9 beats a 2, a King beats a 10, and an Ace beats everything (in this discussion we’re taking “Aces high”).

Exercises

6.53 Define a type Suit to represent suits and a type Value to represent the value of cards. Using these or otherwise, define a type Deck to represent a deck of cards. You may use type synonyms (type) or data type definitions (data), or both.

6.54 Try to give a rationale for the choices you have made in answering the previous question: if you can, give alternative definitions which use the other mechanism, and compare your solutions.

Many card games involve the idea of each player playing one card in turn, called a trick. Traditionally for games like whist and bridge the players are called after the points of the compass: North, South, East and West. The play is in clockwise order: if East is the player to start (to lead) then the players South, West and North follow in that order.

Exercise 6.55 Define a type Player to represent the four players.

There is an important rule about how players should choose cards to play. A player should follow suit: that is, if they can, they must play a card from the same suit as the card that was led (the card played by the person starting). A player can only play from a different suit if she has no cards left in the suit that was led.

Let’s have a look at an example. Suppose that each of the players has five cards left, as shown to the right. Suppose also that East is to lead and that she plays the Jack of Hearts. South has no choice: he has to play the 2 of Hearts. West has no Hearts, so she can choose any other card to play. Finally, North has a choice of two Hearts: the King or the 7, let’s suppose that he plays the King.

Who wins the trick? Let’s suppose first that there is no trump suit. The highest Heart will win the trick, and that’s the King. Why Hearts? Because a Heart was led by East.
If there is a trump suit, then the highest trump card wins if any trumps have been played, but remember that you can only play a trump if you’re unable to follow suit. If Spades were trumps in this case, then West could win the trick by playing the 6 of Spades, no one else can play a trump as they are able to follow suit.

Exercises

6.56 How would you represent a trick? Define a type Trick, using either a type or a data definition. Remember that you need to know which player has played which card, and also who led.

6.57 Define a function

winNT :: Trick -> Player

which decides the winner of a trick, assuming that there is no trump suit.

6.58 Define a function

winT :: Suit -> Trick -> Player

which decides the winner of a trick, assuming that there is a trump suit, which is passed in as the first argument.

6.59 Define a type Hand which represents the collection of cards held by a player at one point during a game. In the earlier example, the hand held by North is ♠ A, 2; ♥ K, 7; ♦ 3 (and no ♣ cards).

6.60 Define a type Hands which describes the hands held by the four players at one point in the game. This should represent the four hands shown in the diagram above, for example.

6.61 Define a function

checkPlay :: Hands -> Trick -> Bool

which checks whether the play in a particular trick is both possible and legal. It should be possible in the sense that the card played by each player (given in the Trick) should be in their hand, as given in the Hands. It should be legal in following the rule that players should follow suit if they can.

What does a game look like? As there are 52 cards, when dealt to four players this results in each player receiving 13 cards. There will therefore be thirteen tricks played. In whist and bridge pairs of players – North/South and East/West – play together, so in an game of 13 tricks one side or the other will win.

Exercises

6.62 Define a type Team to represent the two teams North/South and East/West. Define a function

winnerNT :: [Trick] -> Team

which will give the winning team from the list of tricks, assuming that there are no trumps. Also define the function

winnerT :: Suit -> [Trick] -> Team

where the trump suit is passed in as the first argument.

6.63 [Harder] Define a function

checkPlay :: [Trick] -> Bool

which checks whether the play in each trick is both possible and legal. Hint: you will need to deduce the hand in each case from the cards played subsequently: once you have done this, you can use checkPlay as defined earlier.

Summary

This chapter has shown how the combination of list comprehensions and the built-in functions from the prelude give us a powerful repertoire of tools with which to build definitions over particular list types. This was evident in the Picture example as well as in the case studies, and these also gave an opportunity to see the way in which a larger program was built as a collection of related functions. returning a member of the same list type. The example in Extended exercise: cards and card games particularly emphasised the process of choosing types to represent the various entities in the domain in question.

Finding your way around the Haskell libraries contains vital information about the libraries available in Haskell, including how to download them, how to find out more about their contents and how to search for functions performing particular tasks.

In the next chapter we’ll find out about how to define functions over lists for ourselves.

This section was drafted with assistance from Claude Code v2.1.236 (Claude Sonnet 5), Anthropic, 2026. ↩
We do this using sample (arbitrary :: Gen [String]). ↩
I am grateful to Peter Lindsay *et al. *of the Department of Computer Science at the University of New South Wales, Australia, for the inspiration for this example, which was suggested by their lecture notes. ↩

Keyboard shortcuts

Haskell: The Craft of Functional Programming
